DC BACK-LIT LED Rigid Bar

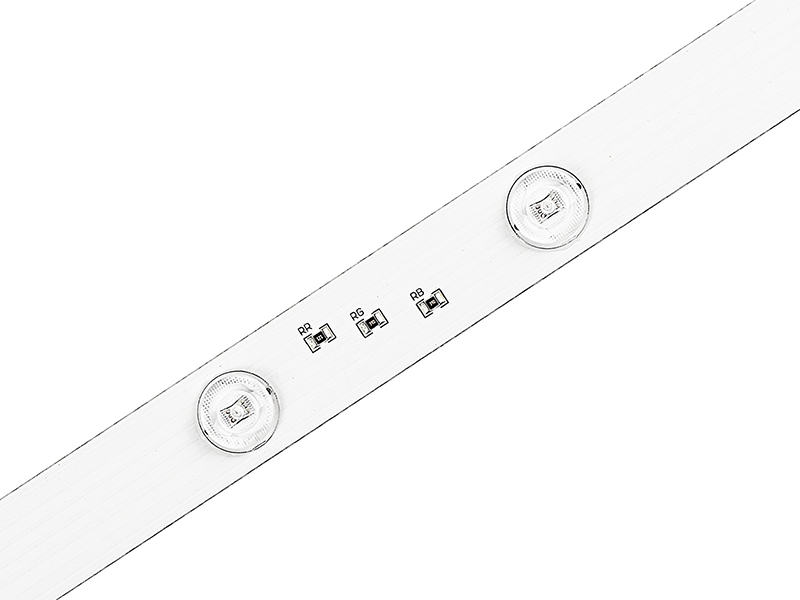

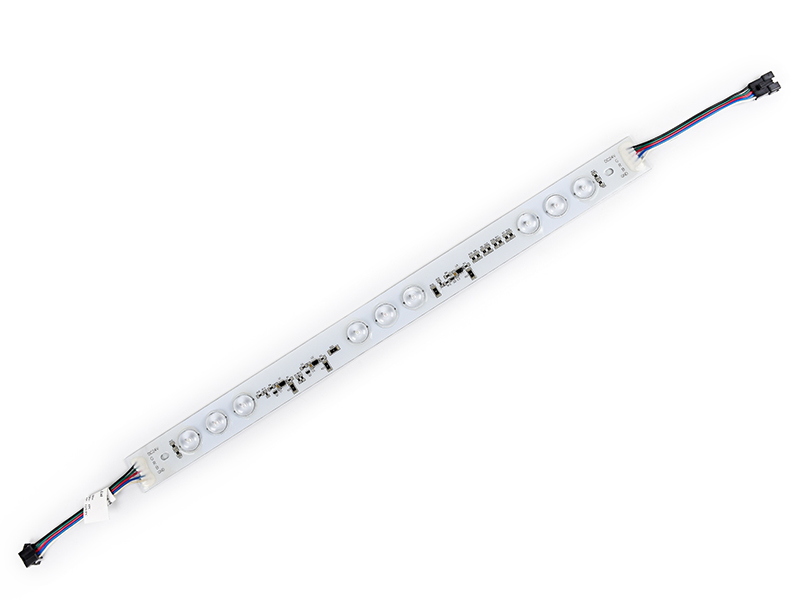

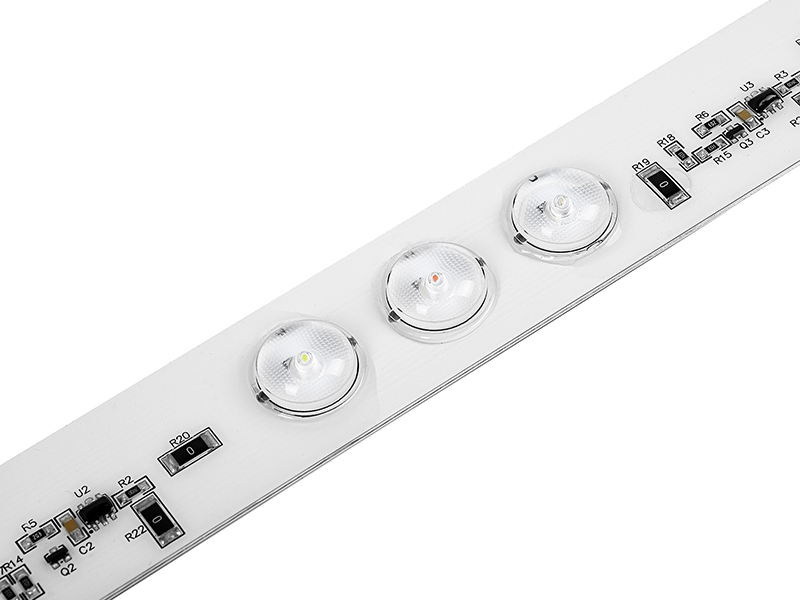

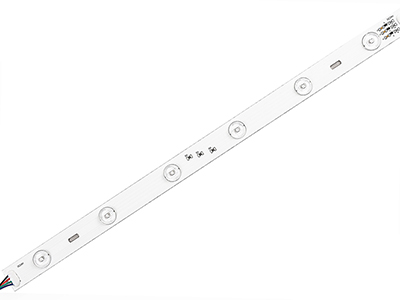

BQ5-A RGB DC LED Rigid Bar
- CCT: 470-100000K
- LED Type: 2830
- Beam Angle: 170°
- Luminous Flux (lm/pcs): 309/608/906/1188
- Power (W/m): 3/6/9/12
- Efficiency (lm/pcs):98.79/104.3/104.1/105
- Voltage: 24 VDC
- IP Rating: IP20
- 3-Year Warrant
- Adopt RGB in one 2830 LED
- Good color-mixing effect and stability
- Special lens with 170° beam angle, suitable for thin light box
- Multi-color changing effect via controller
- Adopt standard terminals for easy usage
Inquiry

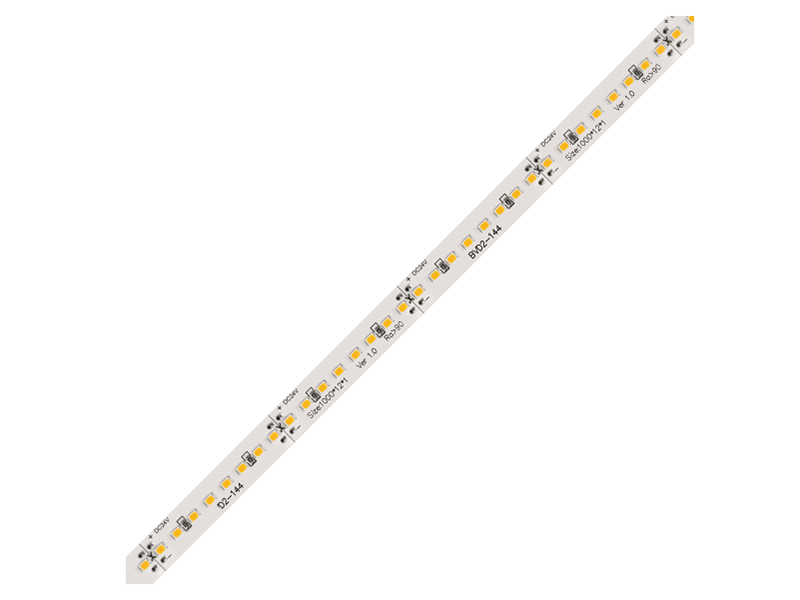

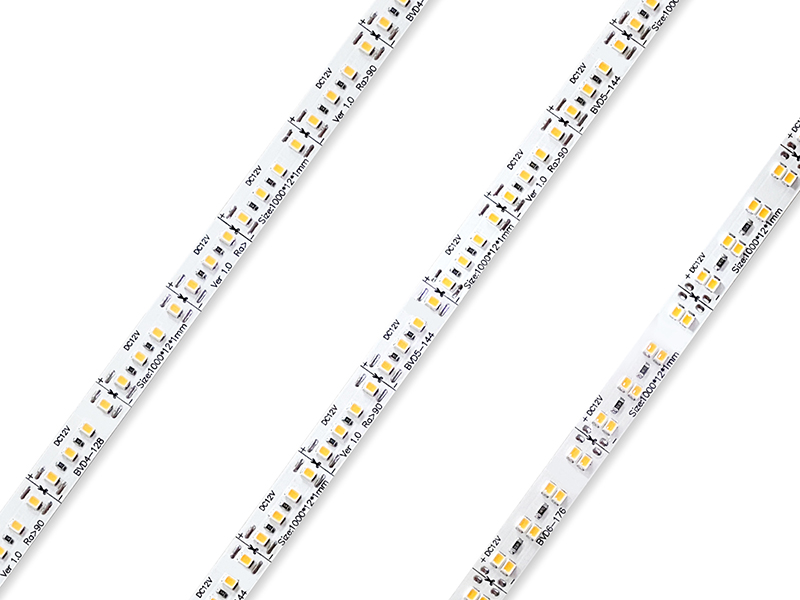

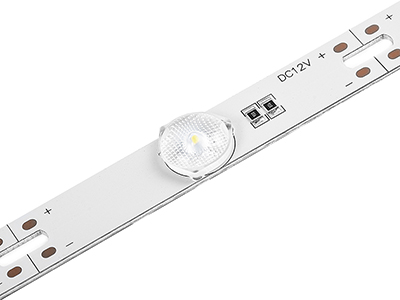

BVDX-XXX 12V DC LED Rigid Bar
- CCT: 470-100000K
- LED Type: 2835
- Beam Angle: 170°
- Luminous Flux (lm/pcs): 48/77/25/142
- Power (W/pcs): 1.92/1.92/1.92/5.76
- Efficiency (lm/W):30/48.2/15.7/29.6
- Voltage: 24 VDC
- IP Rating: IP20
- 3-Year Warrant
- High light quality
- SDCM<3
- High CRI @ R9>90
- Mini cut unit, can be combined with profiles
Inquiry
BVDX-XXX 24V DC LED Rigid Bar
- CCT: 3000/4000/6500K
- LED Type: 2835
- Beam Angle: 120°
- Luminous Flux (lm/pcs): 1279/1393/1212, 1523/1611/1534, 1726/1804/1695
- Power (W/pcs): 11.5/13/15.8
- Efficiency (lm/W):116/126/116, 116/124/115, 116/123/115
- Voltage: 24 VDC
- IP Rating: IP20
- 3-Year Warrant
- High light quality
- SDCM<3
- High CRI @ R9>90
- Mini cut unit, can be combined with profiles
Inquiry

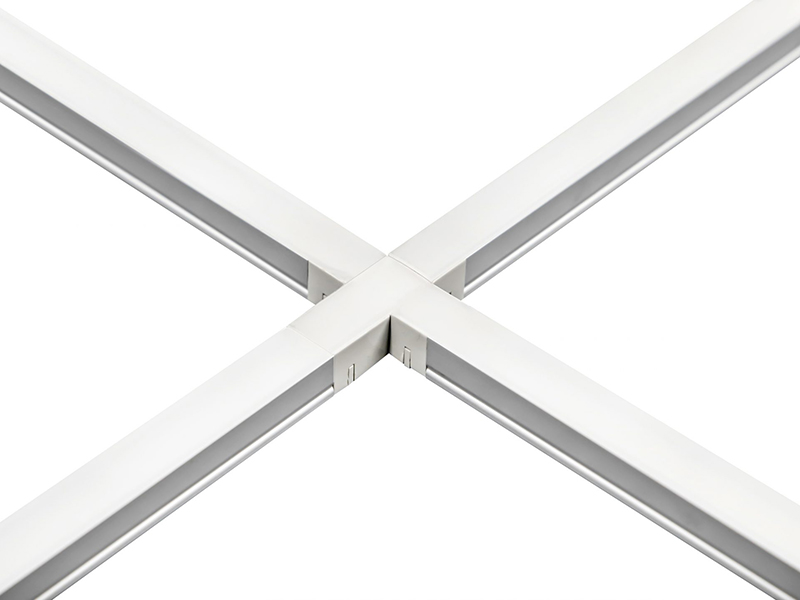

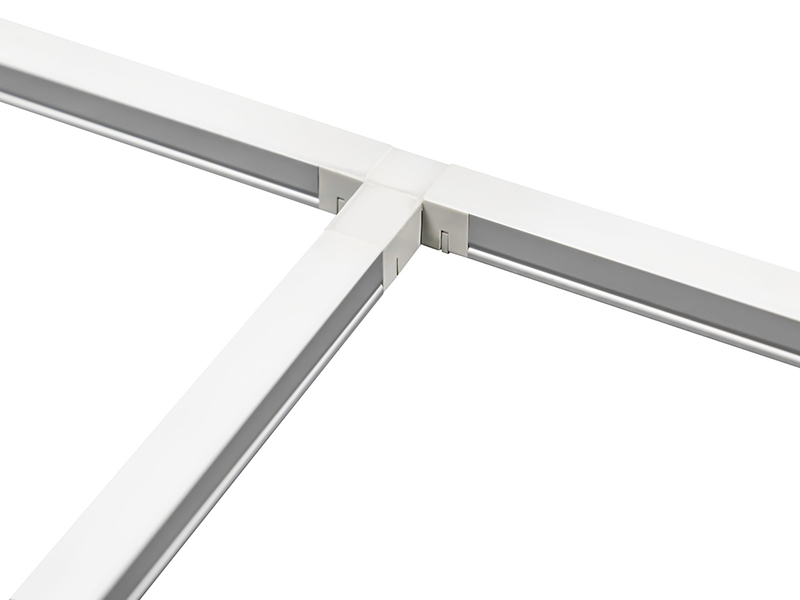

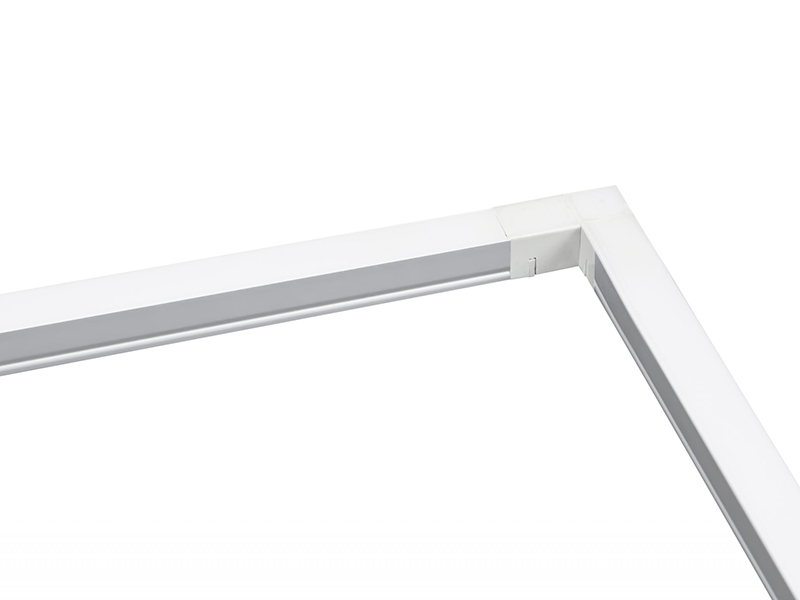

CG2-B-XXXX DC LED Rigid Bar
- CCT: 3000-6500K
- LED Type: 2016
- Beam Angle: 120°
- Luminous Flux (lm/pcs): 426
- Power (W/pcs): 6.6
- Efficiency (lm/W): 65
- Voltage: 24 VDC
- IP Rating: IP60
- 3-Year Warrant
- No dark spot at the linkage point for continuous seamless effect
- Quick connection system
- Various mounting methods including magnetic mounting
Inquiry

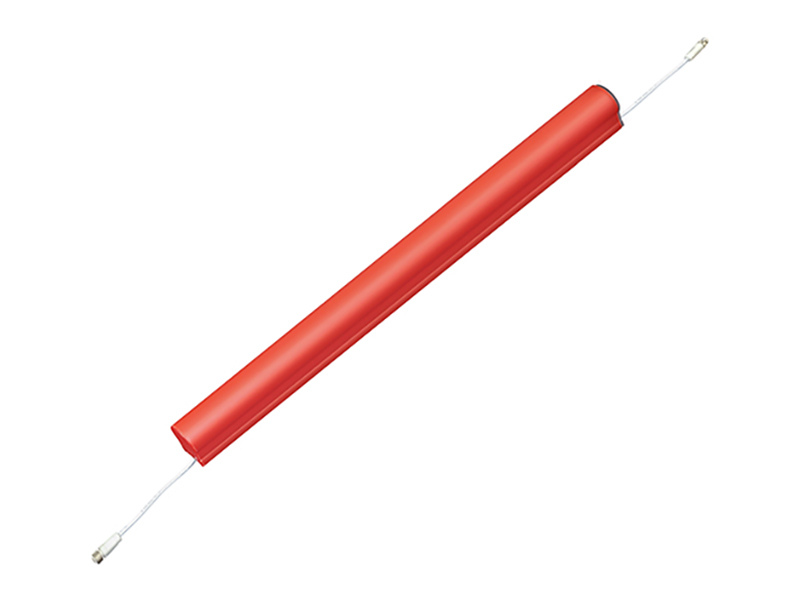

FB-R DC LED Rigid Bar
- CCT: 620-625K
- LED Type: 2835
- Beam Angle: 180°
- Luminous Flux (lm/pcs): 73/146/204/394
- Power (W/pcs): 3.84/7.68/10.75/20.74
- Efficiency (lm/W): 19
- Voltage: 24 VDC
- IP Rating: IP66
- 5-Year Warrant
- Explosion-proof product
- Using a frosted PC cover, offering uniform illumination
- Adopted 2835 LED
- Various specifications are available and support customization
Inquiry
FB-X DC LED Rigid Bar
- CCT: 6700/630-630/525-535K
- LED Type: 2835
- Beam Angle: 180°
- Luminous Flux (lm/pcs): 319/637/892/1721, 134/268/376/725, 65/130/183/353
- Power (W/pcs): 3.84/7.68/10.75/20.74, 3.84/7.68/10.75/20.74, 3.84/7.68/10.75/20.74
- Efficiency (lm/W): 83/19/17
- Voltage: 24 VDC
- IP Rating: IP66
- 3-Year Warrant
- Using PC frosted cover, offering uniform illumination
- Adopt 2835LED
- Various specifications are available and support customization
Inquiry

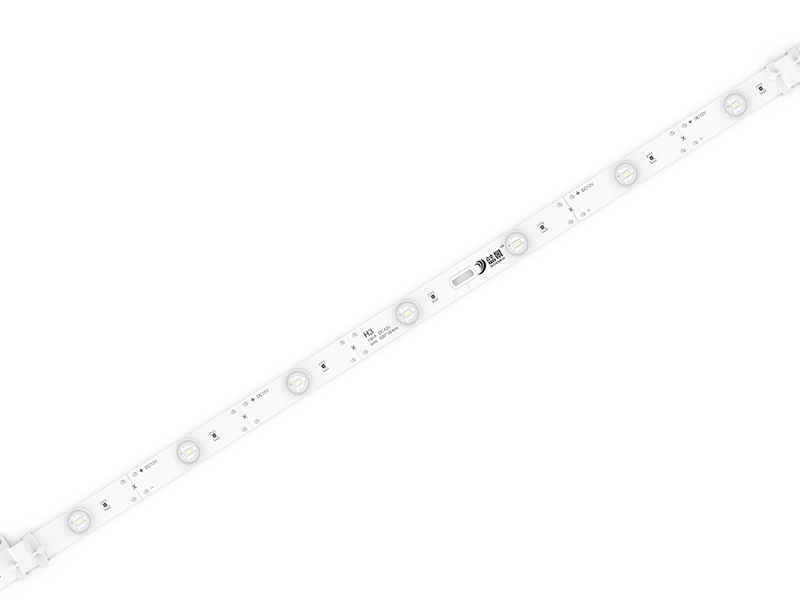

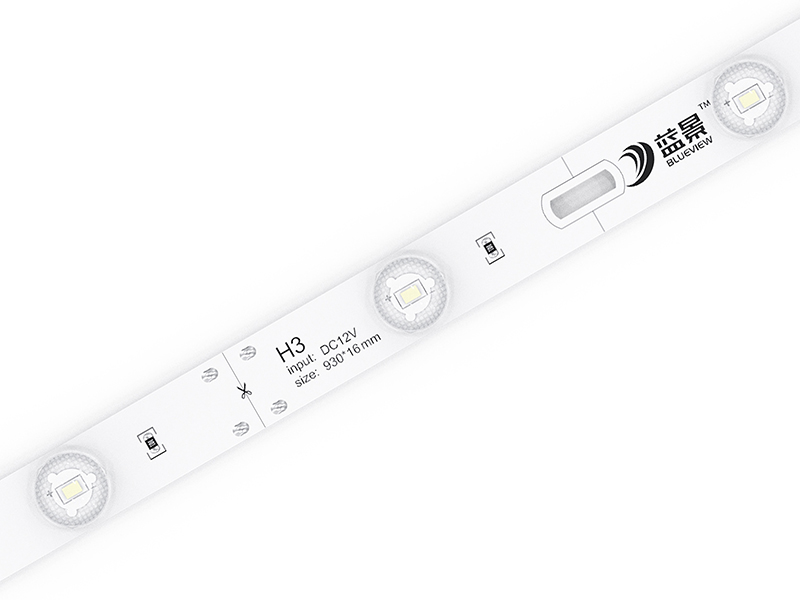

H3 DC LED Rigid Bar
- CCT: 3000-9000K
- LED Type: 3030
- Beam Angle: 180°
- Luminous Flux (lm/pcs): 780/910/1430/1560
- Power (W/pcs): 6/7/11/12
- Efficiency (lm/W): 130
- Voltage: 24 VDC
- IP Rating: IP20
- 5-Year Warrant
- Self-designed secondary lens for uniform light distribution
- Aluminum PCB for direct and quick heat dissipation
- Easy mounting
- Exclusive designed clips for easy installing and beauty appearance
- Single LED can be cut, multiple specifications, customization available
Inquiry

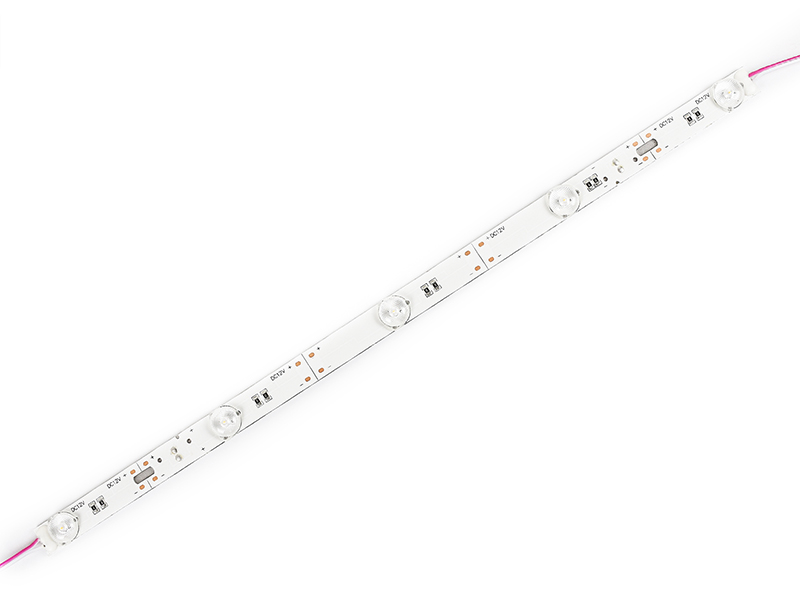

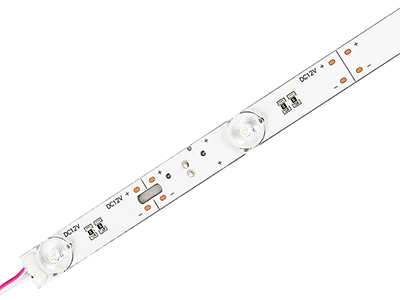

JYD2-C DC LED Rigid Bar
- CCT: 3000-20000K
- LED Type: 2835
- Beam Angle: 160°
- Luminous Flux (lm/pcs): 460/858
- Power (W/pcs): 4.8/9.6
- Efficiency (lm/W):90
- Voltage: 12 VDC
- IP Rating: IP60
- 3-Year Warrant
- EPISTAR chips
- Adopt 9V 2835 LED
- Special secondary light dissipation lens with uniform light distribution
- Adopt aluminum PCB is easy to dissipate heat
- SM-2A connector, easy to install
- Available in 5 leds/50cm, 10 leds/100cm
Inquiry
QTD8 DC LED Rigid Bar
- Light Color: Full-color
- Beam Angle: 170°
- Luminous Flux (lm/pcs):500
- Power (W/pcs):<12
- Efficiency (lm/W):42
- Voltage: 24 VDC
- IP Rating: IP60
- 3-Year Warrant
- Input voltage: DC24V
- Osram single color LED, color mixing well, excellent light performance and stability
- Can be connected with external controller, and achieve full-color effect
- Beam angle 170°, excellent light effect, suitable for slim light box
- Aluminum PCB and backside with heat conductive adhesive tape, better heat diffusion
Inquiry

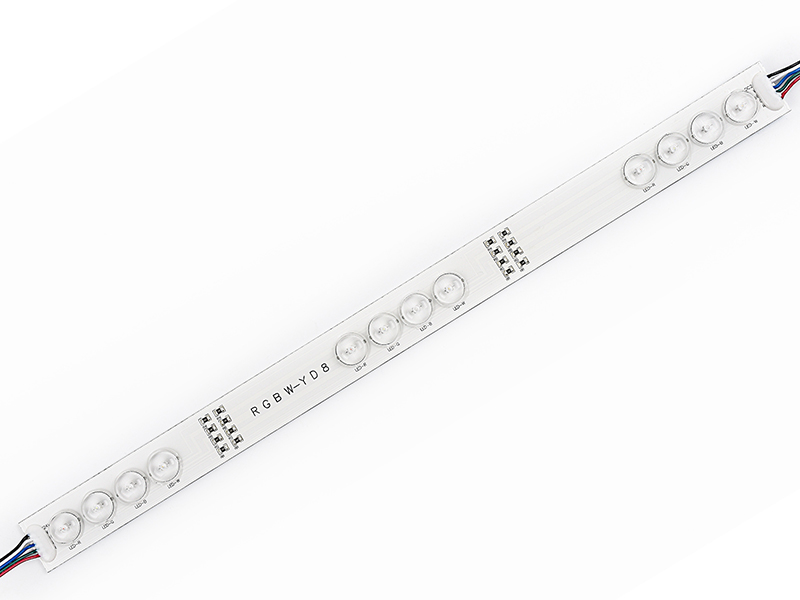

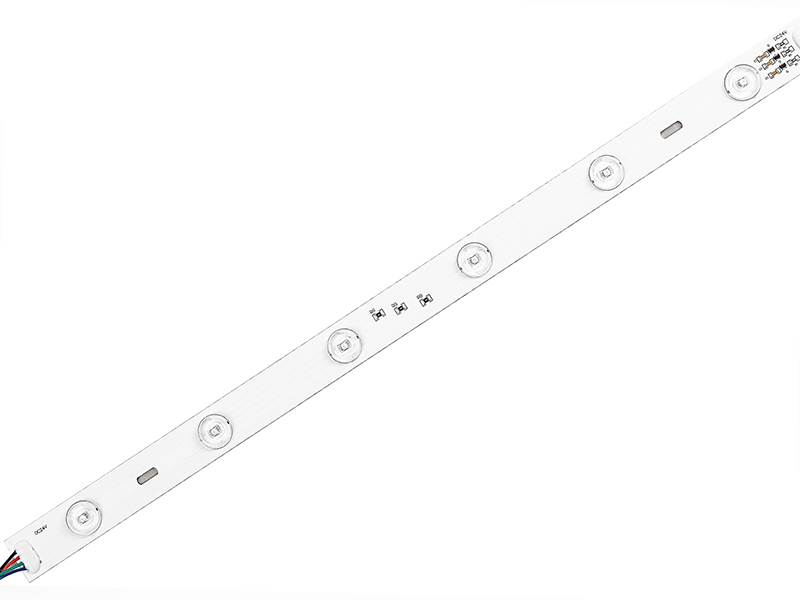

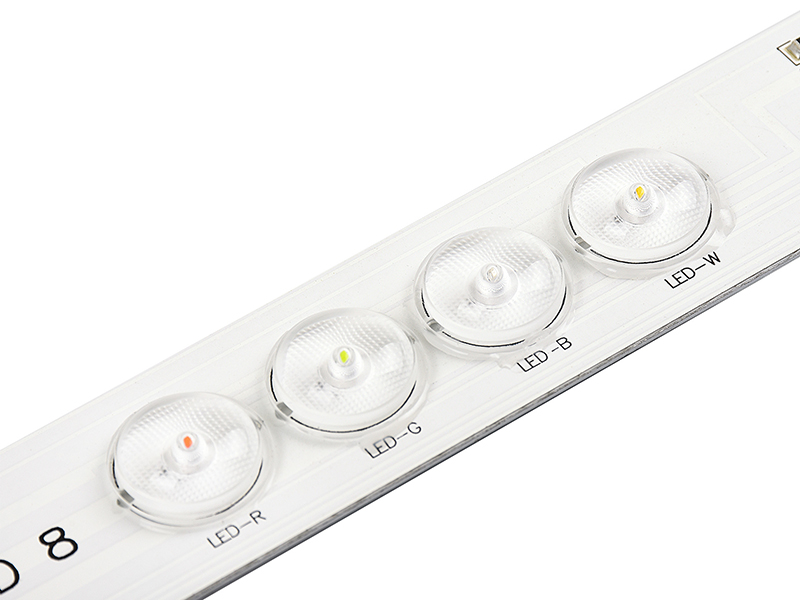

RGBW-YD8 DC LED Rigid Bar
- Light Color: Red, Green, Blue, White, RGBW
- Beam Angle: 170°
- Luminous Flux (lm/pcs): 68/462/26/319/851
- Power (W/pcs): 3.5/3.8/3.8/3.6/14.5
- Efficiency (lm/W): 19.2/121/6.8/88.1/58.5
- Voltage: 24 VDC
- 3-Year Warrant
- Input voltage: DC24V
- Osram LED, excellent performance and stability with great color mixing
- Connected with external controller for full-color effect
- 170° beam angle for more uniform lighting, ideal for slim lightbox
- Aluminum PCB with heat conductive adhesive on back for better heat dissipation
Inquiry
YD2-C DC LED Rigid Bar
- Light Color: White
- CCT: 3000-20000K
- Beam Angle: 160°
- Luminous Flux (lm/pcs):432/864
- Power (W/pcs):4.8/9.6
- Efficiency (lm/W):90
- Voltage: 12 VDC
- IP Rating: IP60
- Adopt 9V, led SMD 2835
- Special secondary light dissipation lens with uniform light distribution
- Adopt aluminum PCB, easy to dissipate heat
- SM-2A connector, easy to install
- Available in 5 leds/50cm,10 leds/100cm
Inquiry

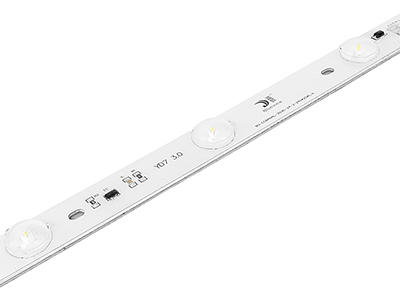

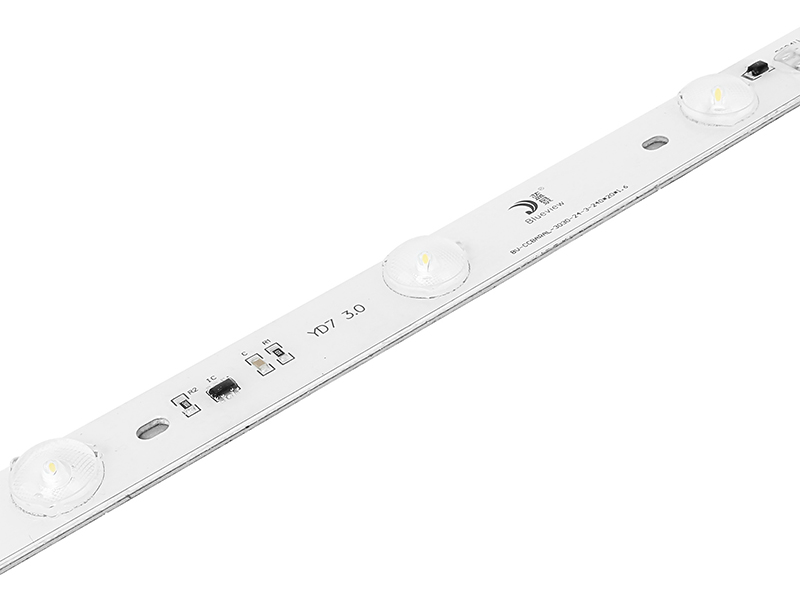

YD7 3.0 DC LED Rigid Bar
- Light Color: White
- CCT: 6500-7000K
- Beam Angle: 160°
- Luminous Flux (lm/pcs): 357/708/1375
- Power (W/pcs): 3.7/7.5/15
- Efficiency (lm/W): 155/310/620
- Voltage: 24 VDC
- IP Rating: IP60
- 5-Year Warrant
- Nichia LED with Vf=6V, high-power 1W, 3030 package
Inquiry

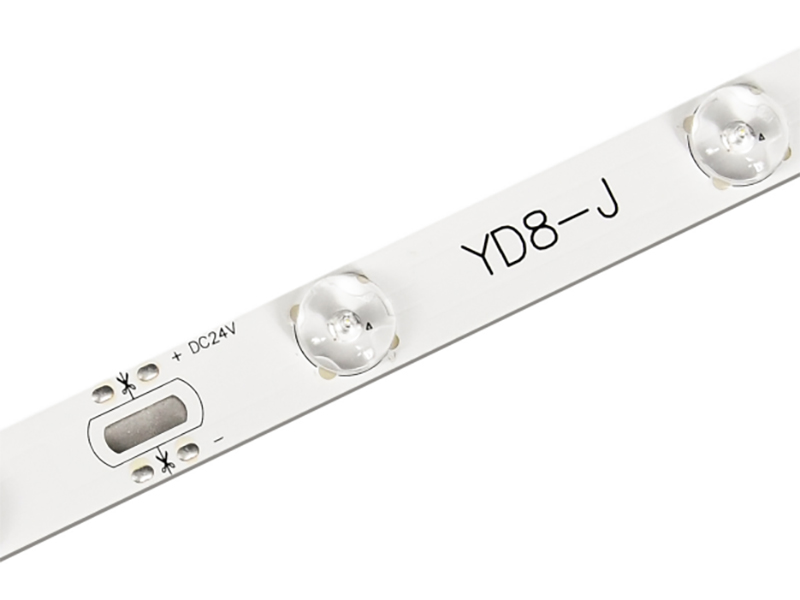

YD8-J DC LED Rigid Bar
- Light Color: White
- LED Type: 2835
- CCT: 2200-6500K
- Beam Angle: 180°
- Luminous Flux (lm/pcs):330/670
- Power (W/pcs):2.4/4.8
- Efficiency (lm/W):140
- Voltage: 24 VDC
- IP Rating: IP20
- 5-Year Warrant
- Adopt special secondary light distribution lens, even illumination
- Aluminum PCB board is adopted for direct heat dissipation
- Multiple specifications available, support customization
Inquiry

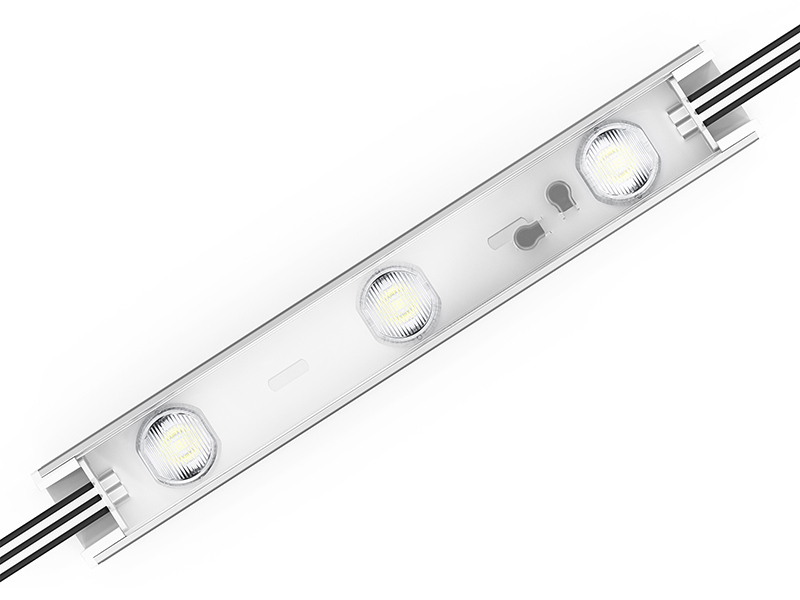

YZ9 DC LED Rigid Bar
- Light Color: White
- LED Type: 3535
- CCT: >6400K
- Beam Angle: 10′45°
- Luminous Flux (lm/pcs):741/1235/1424
- Power (W/pcs):7.2/11.76/13.44
- Efficiency (lm/W):103/105/106
- Voltage: 24 VDC
- IP Rating: IP66
- 3-Year Warrant
- Can use a dimmer
- Use aluminum cover, better heat dissipation
- Adopt optical lens and secondary light distribution design
- Various specifications are available and support customization
Inquiry
As a leading LED lighting manufacturer in the lighting industry, Blueview fouces on custom luninaire
manufacturing,
including signage lighting, commercial lighting and smart lighting system. Our superior quality LED luminaires
are
widely used for accent lighting, architectural lighting, channel letter signs, television backlighting, cove
lighting,
under-cabinet lighting, showcase lighting, etc. We are one of makers of national LED lighting industry
standards,
enabling us to manufacture various LED flexible lights with the highest standards. In addition to LED tape
light, linear
lighting product, neon tube light, Blueview also offers unique lighting solutions according to your lighting
applications. If you are looking for high performance environmental lights, welcome to LED light expert!
