LED Linear Lights, Suspended LED Lights
Blueview offers different LED linear lights and suspended LED lights for creating beautiful lighting in your office, residence, commercial building, industrial space and so on.

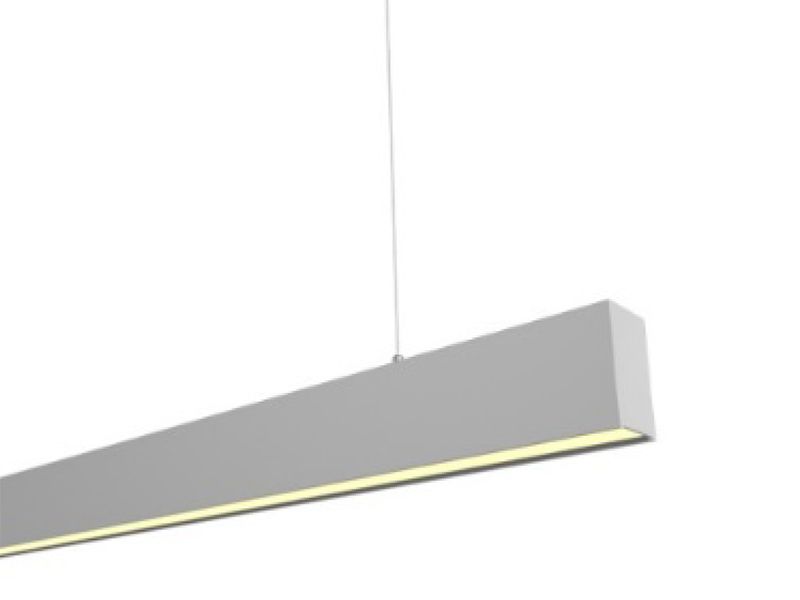

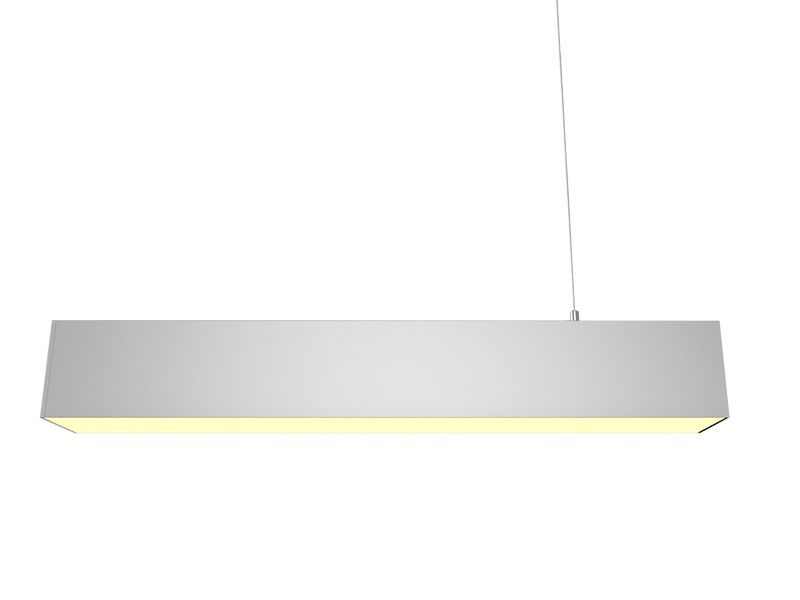

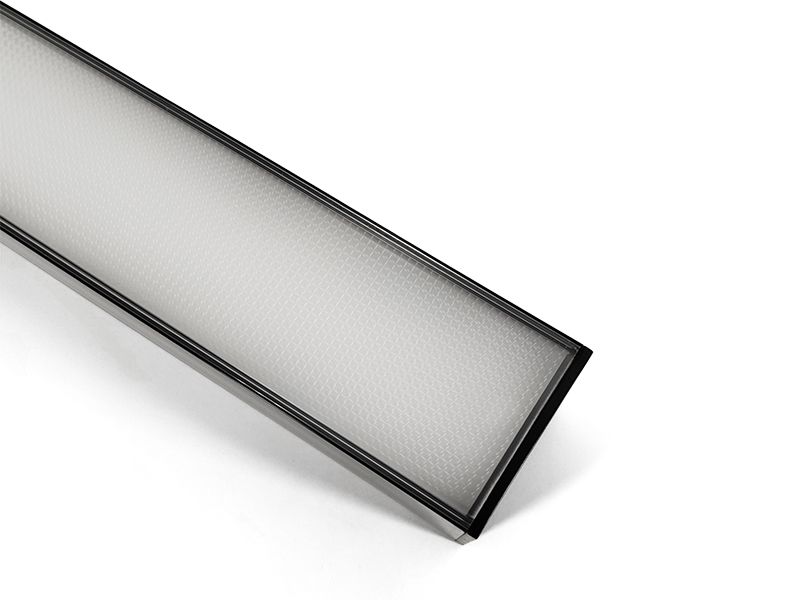

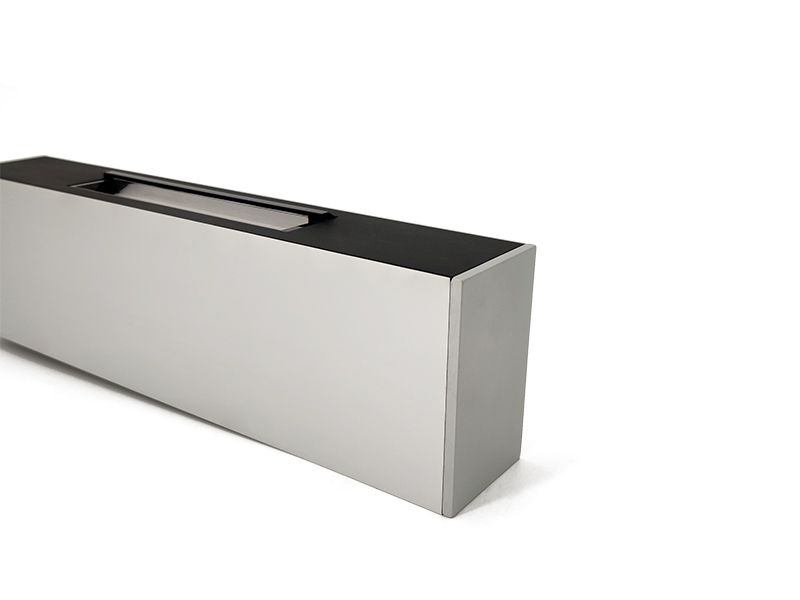

HONG Series LED Linear Light
- HONG P / M / W is a direct/indirect linear LED lighting fixture offering direct and indirect lighting.
- Features 95+, 90+ or 80+ LM80 LEDs
- White color from 2700K to 6500K
- Dimmable driver available in Dali, 0/1-10V type, also controllable options in DMX, PWM and 2.4G
- The LED linear fixture is designed in multiple installation in Suspended, Wall / Ceiling Mounted, Trim-less or Trimed Recessed.
- Fixture lengths are available in 2ft, 4ft, 5ft and 8ft, and custom lengths can be made within 19.6ft.
Finish
- Aluminum clear matt anodized
- White / black powder coating
- Customized RAL color available

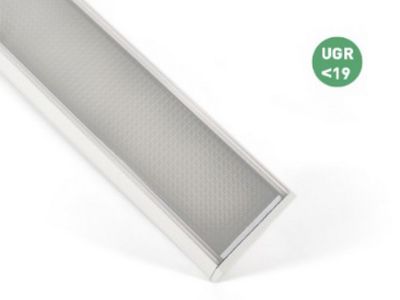

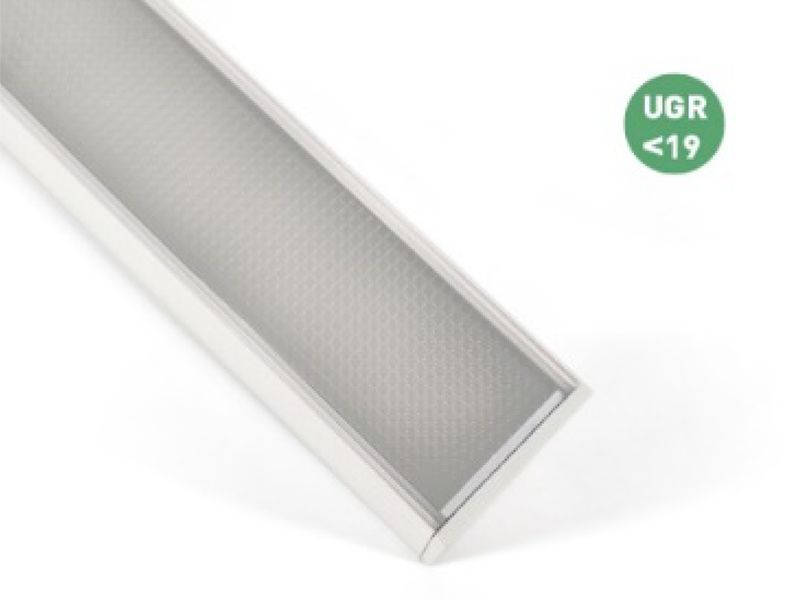

HONG Direct& Indirect Linear Light, UGR <19, 2835 LED, 90 lm/W
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 4200
- Power (W/m): 46
- Efficiency (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

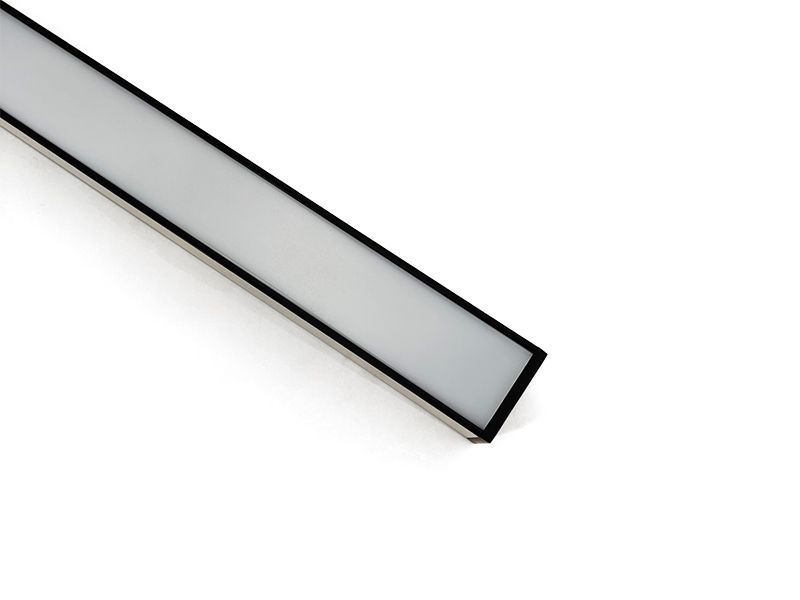

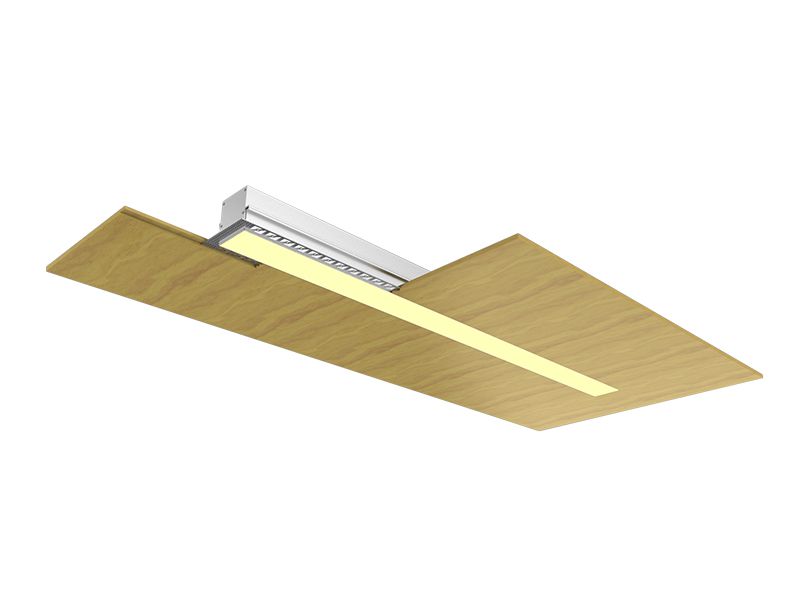

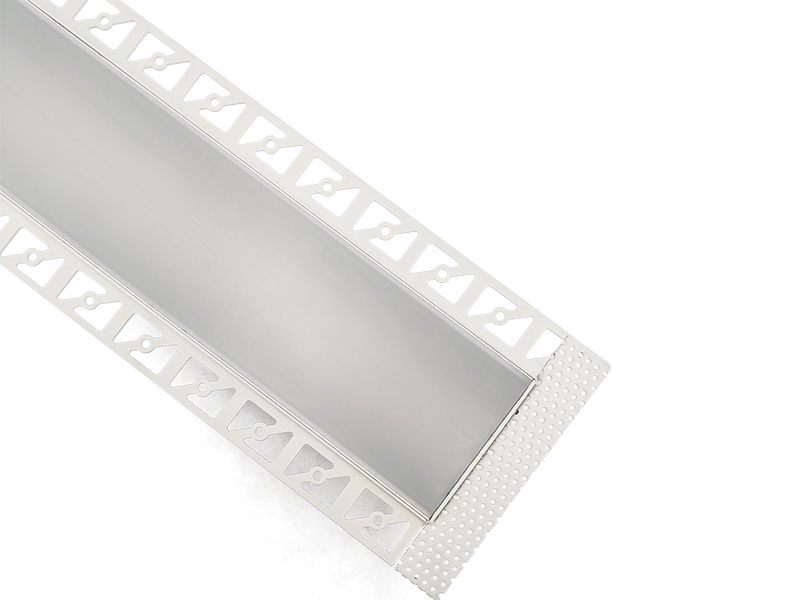

HONG Trimless Recessed Linear Light, 2835 LEDs, 90lm/W
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 4200
- Power (W/m): 46
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

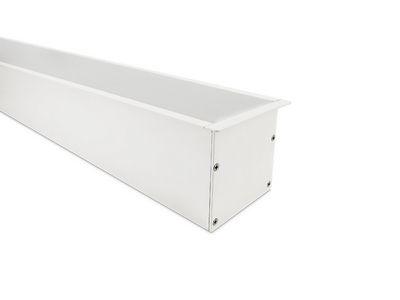

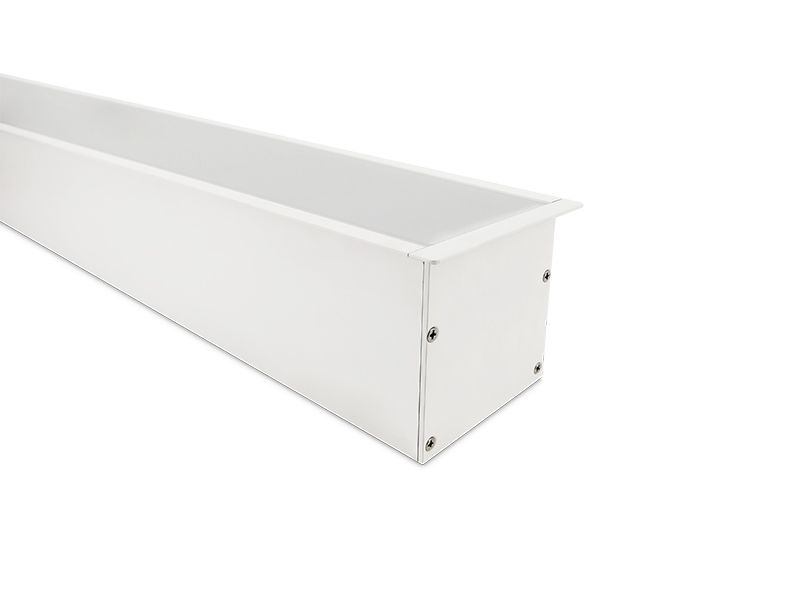

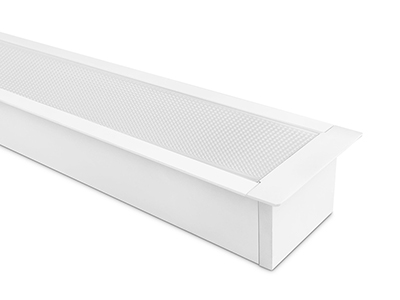

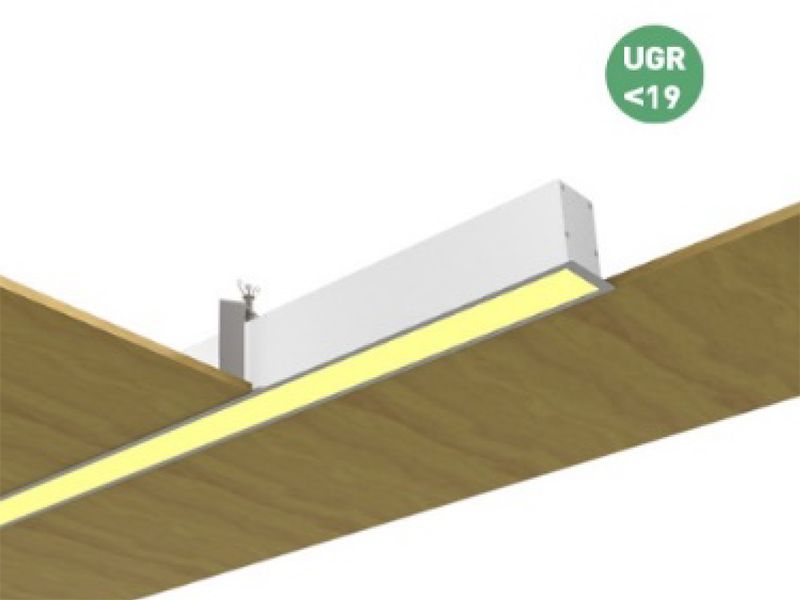

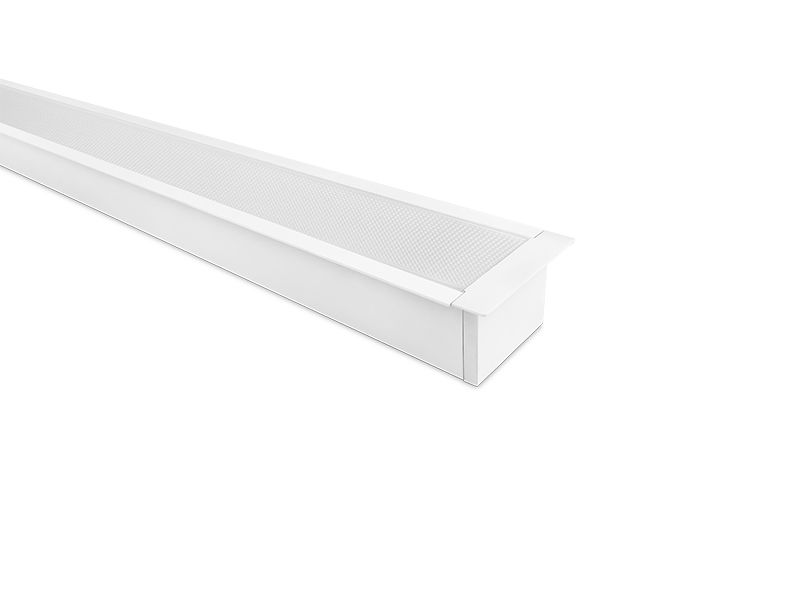

HONG Trimmed Recessed Linear Light, UGR < 19, 2835 LEDs, 90 lm/W
- CCT : 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 4200
- Power(W/m): 46
- Efficacy(lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

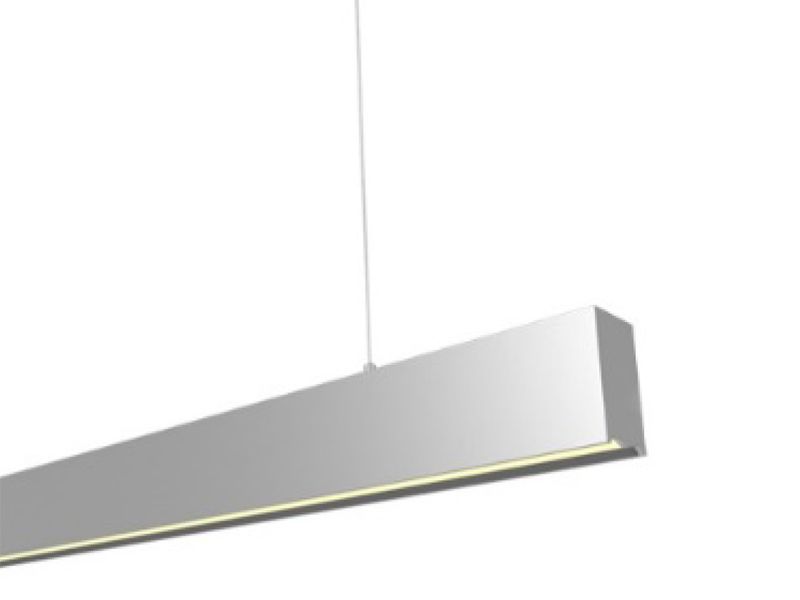

LUZ Series LED Linear Light
- LUZ P/M/W is a linear LED lighting fixture with internal drivers featuring with various optical options.
- Hundreds of options available depending on the lighting environments
- 15° / 30° / 45° / 50° / 50x50° / 35x75° louver / wall washer louver or TRI (Total Internal Reflection) lens are available to satisfy most of the lighting applications
- Features 80+ or 95+ Ra LEDs.
- White color from 2700K to 6500K
- Dimmable LED driver available in Dali, 0/1-10V type, also controllable options in DMX, PWM and 2.4G
- The fixture can be suspended, or ceiling Mounted.
- Fixture lengths are available in 2ft, 4ft, 5ft and 8ft, and custom lengths can be made within 19.6ft.
Finish
- Aluminum clear matt anodized
- White / black powder coating
- Customized RAL color available

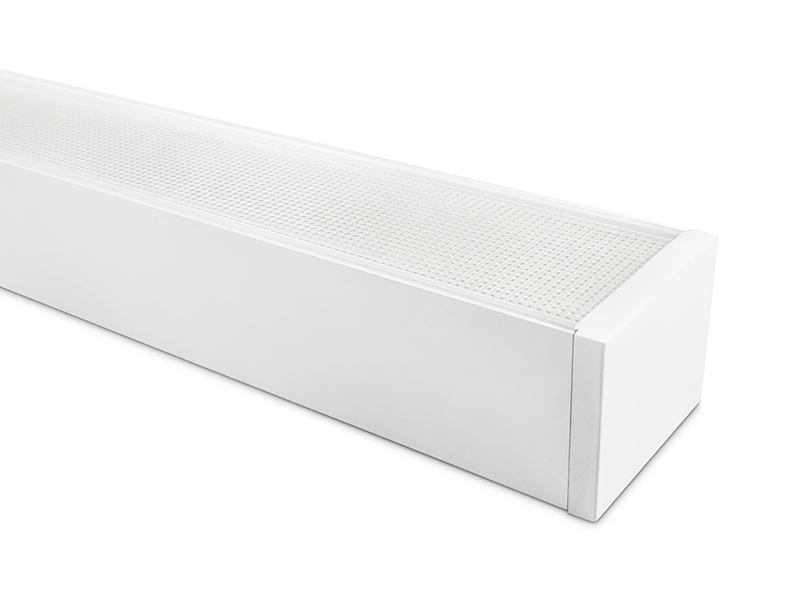

LUZ Surface LED Linear Light, UGR< 19, 2835 LEDs, 90 lm/W
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 88°
- Luminous Flux (lm/m): 2340
- Power (W/m): 26
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

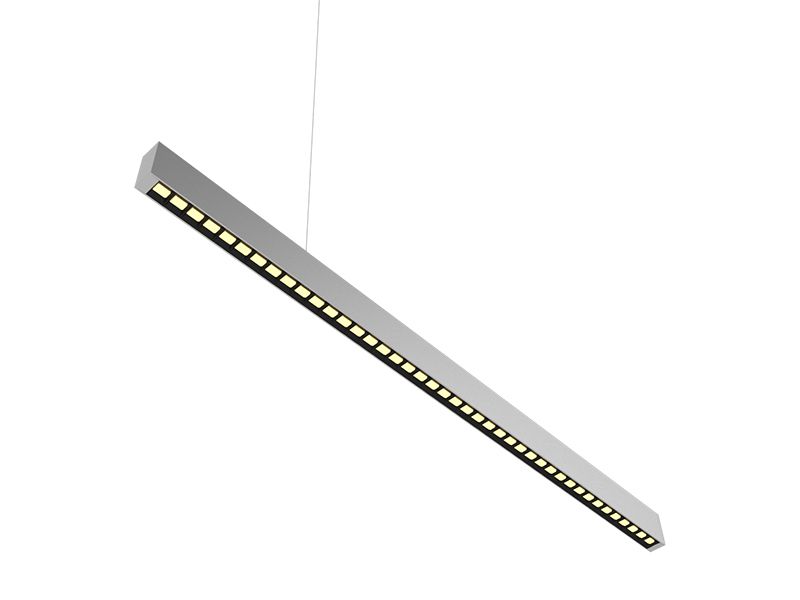

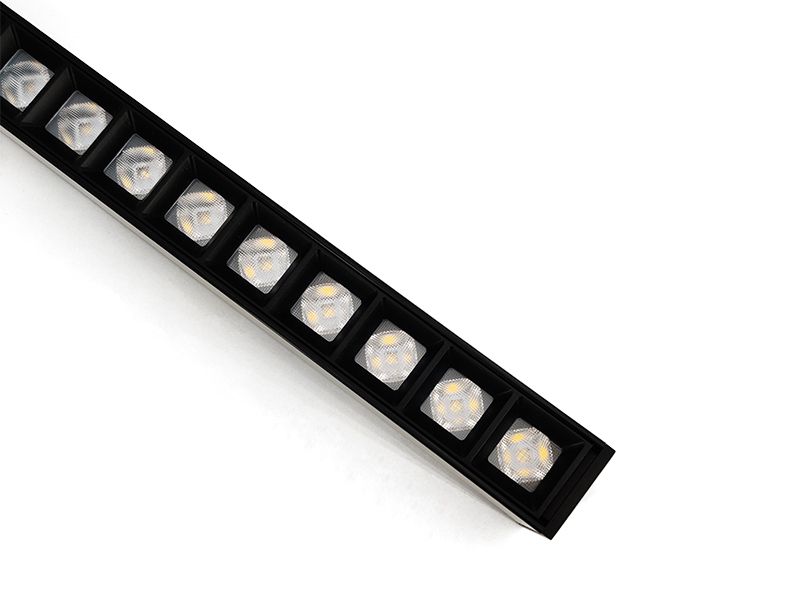

LUZ 15° / 30° / 45° Surface LED Linear Light, 2835 LEDs, 90 lm/W, UGR< 12
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 15°, 35°, 45°
- Luminous Flux (lm/m): 1430
- Power (W/m): 19
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty
LUZ Wall Washer LED Linear Light, UGR < 12, 2835 LEDs
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: Asymmetric 9°
- Luminous Flux (lm/m): 1383
- Power (W/m): 19
- Efficacy (lm/W): 80
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

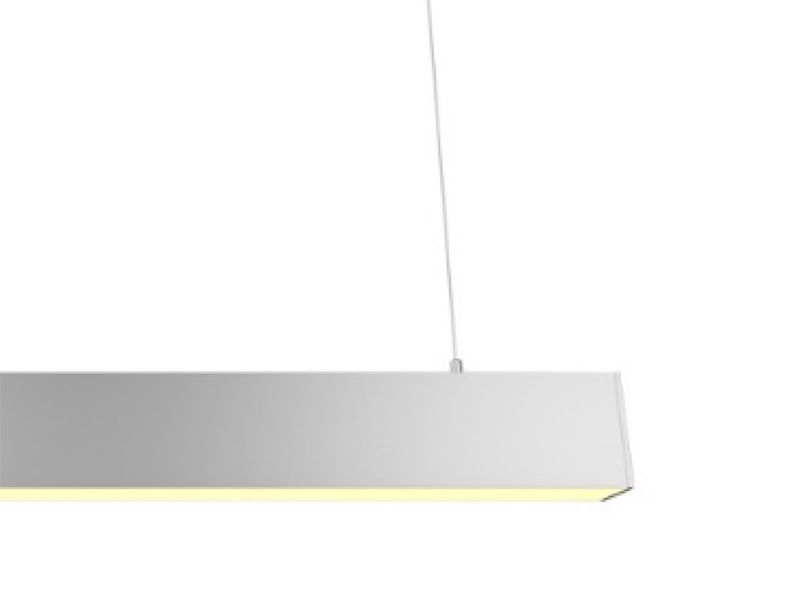

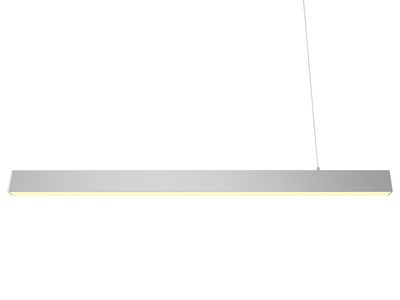

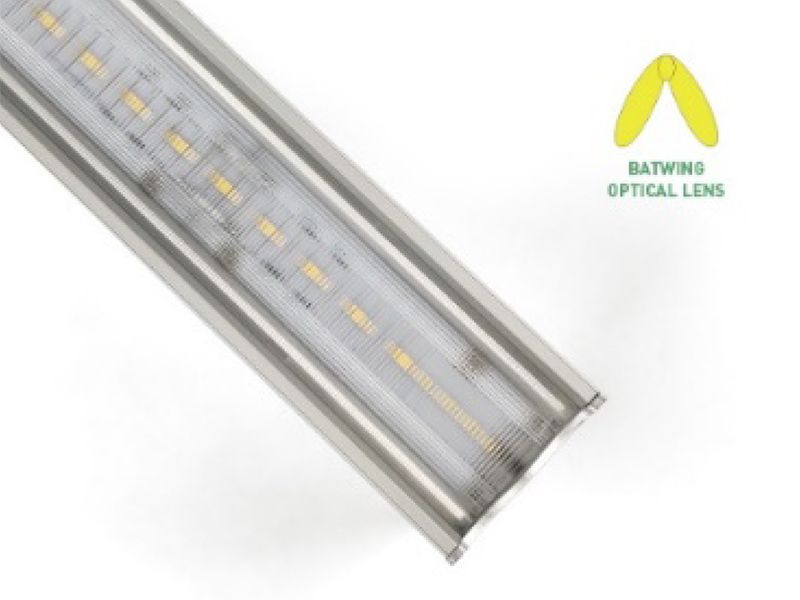

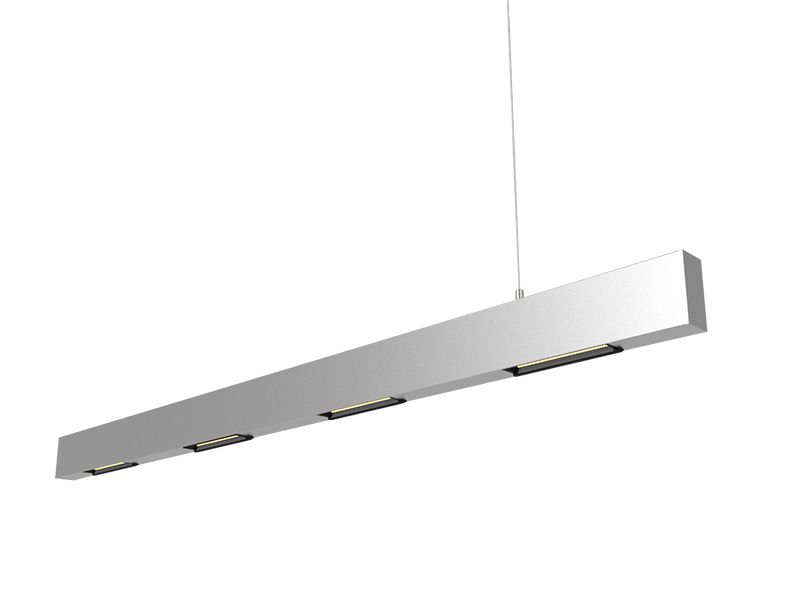

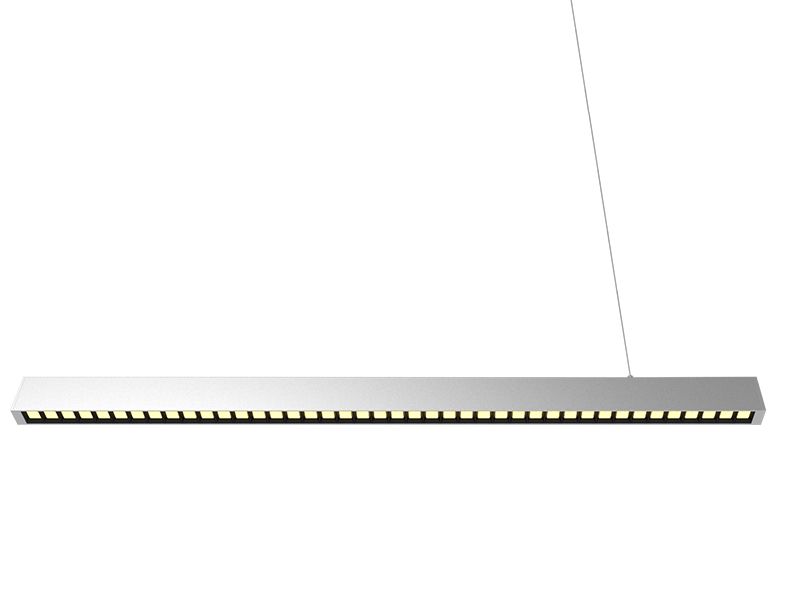

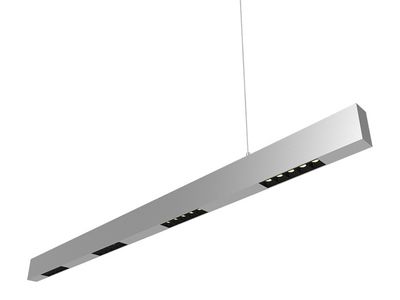

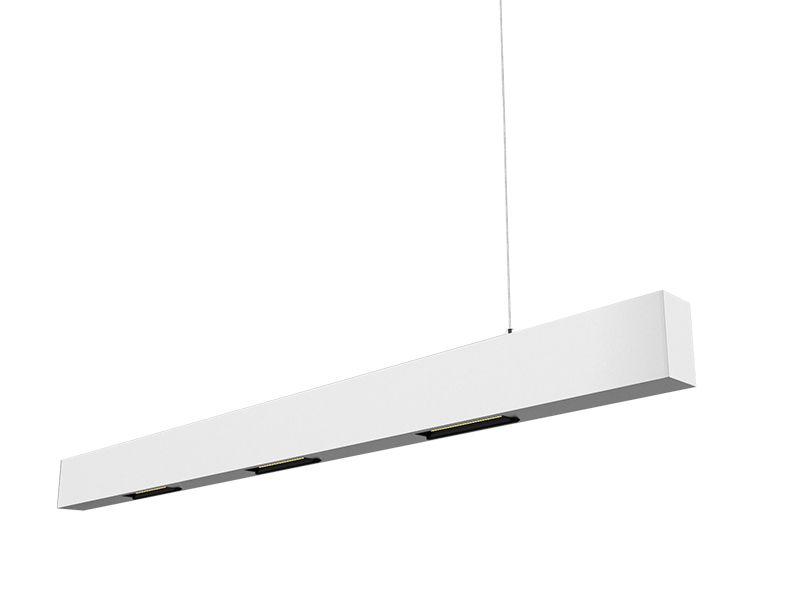

LUZ Series Suspended LED Light, Batwing Optical Lens, 2835 LEDs,90lm/W
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: Asymmetric 9°
- Luminous Flux (lm/m): 2000
- Power (W/m): 26
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

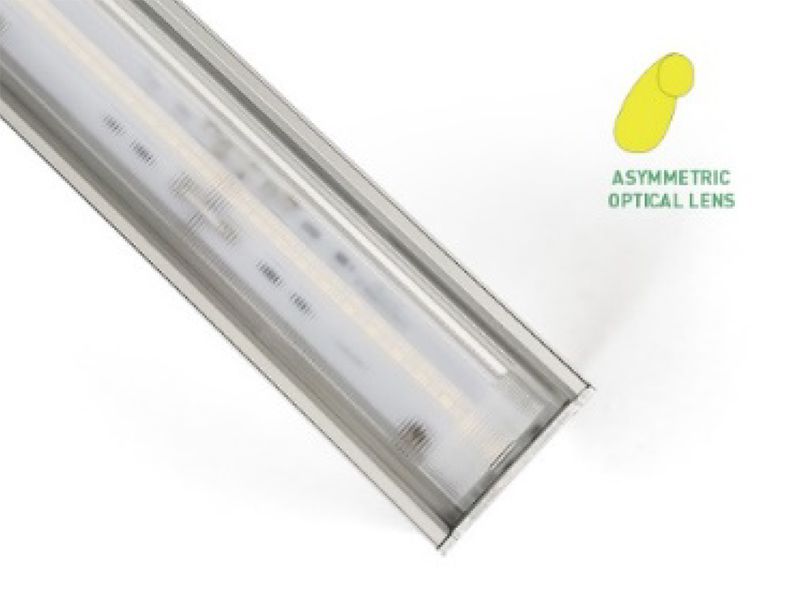

LUZ Suspended LED Light, Asymmetric Optical Lens, 2835 LEDs, 80 lm/W
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: Asymmetric 9°
- Luminous Flux (lm/m): 1383
- Power (W/m): 19
- Efficacy (lm/W): 80
- Voltage: 220-240 VAC/ 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

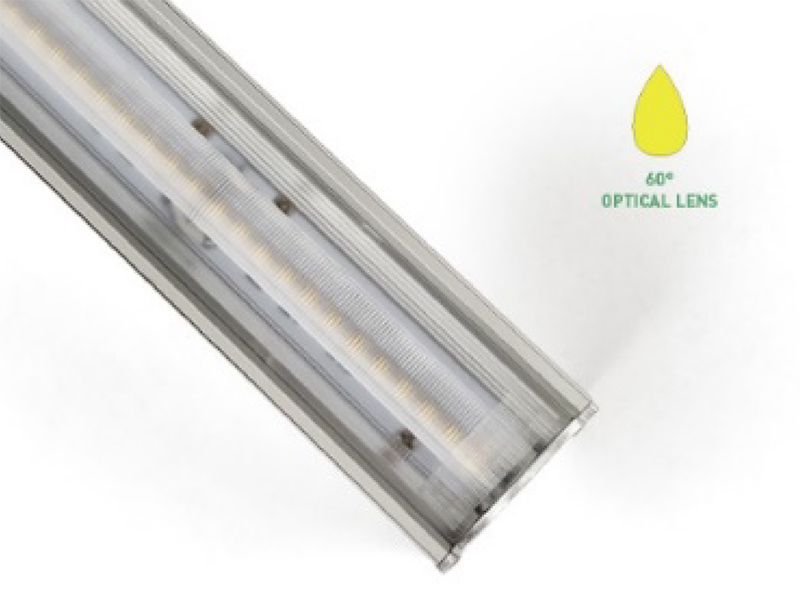

LUZ Suspended LED Light, 60° Optical Lens, 2835 LEDs, 80 lm/W
- CCT : 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 60°
- Luminous Flux (lm/m): 1383
- Power(W/m): 19
- Efficacy(lm/W): 80
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

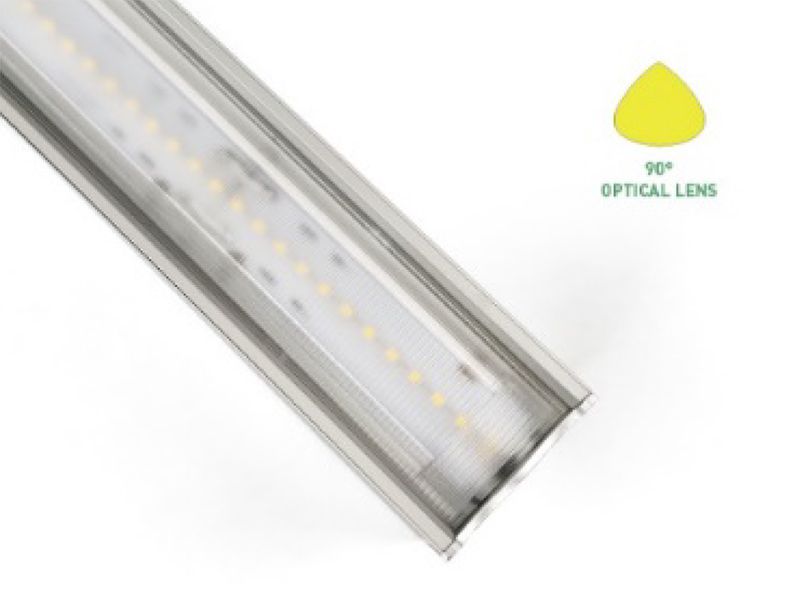

LUZ Suspended LED Light, 90° Optical Lens, 2835 LEDs, 80 lm/W
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 90°
- Luminous Flux (lm/m): 1383
- Power (W/m): 19
- Efficacy (lm/W): 80
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

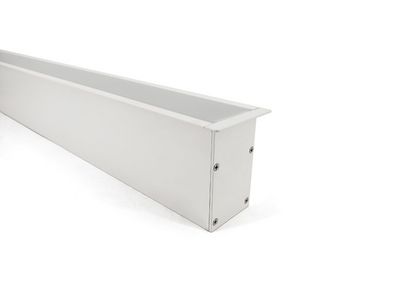

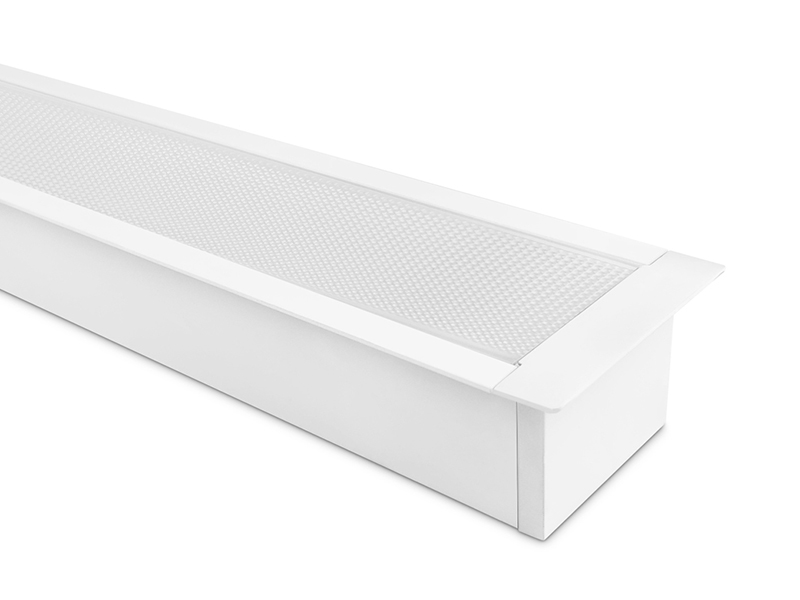

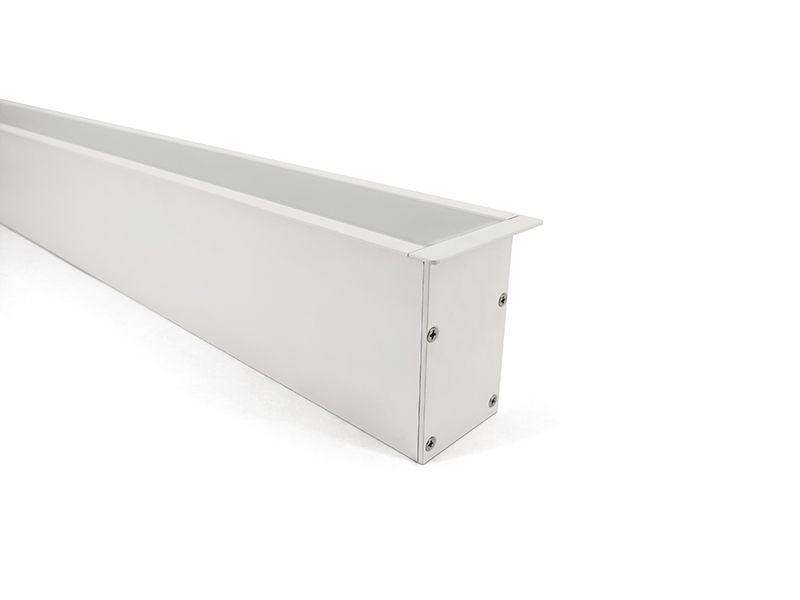

LUZ Trimmed Recessed LED Linear Light, UGR<19, 2835 LEDs, 90 lm/W
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 88°
- Luminous Flux (lm/m): 2340
- Power (W/m): 26
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty
LUZ Wall Washer Trimmed Recessed Linear Light, 2835 LEDs, 70lm/W
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: Asymmetric 9°
- Luminous Flux (lm/m): 1384
- Power (W/m): 19
- Efficacy (lm/W): 70
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

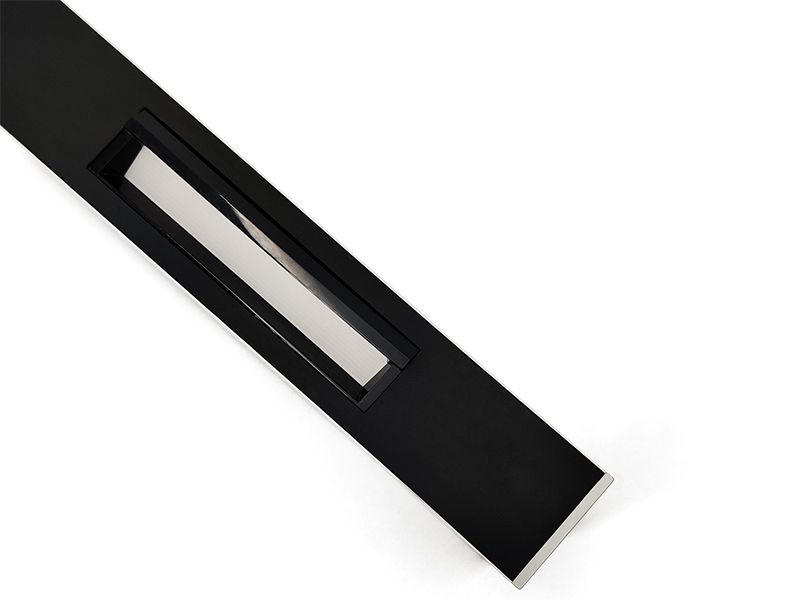

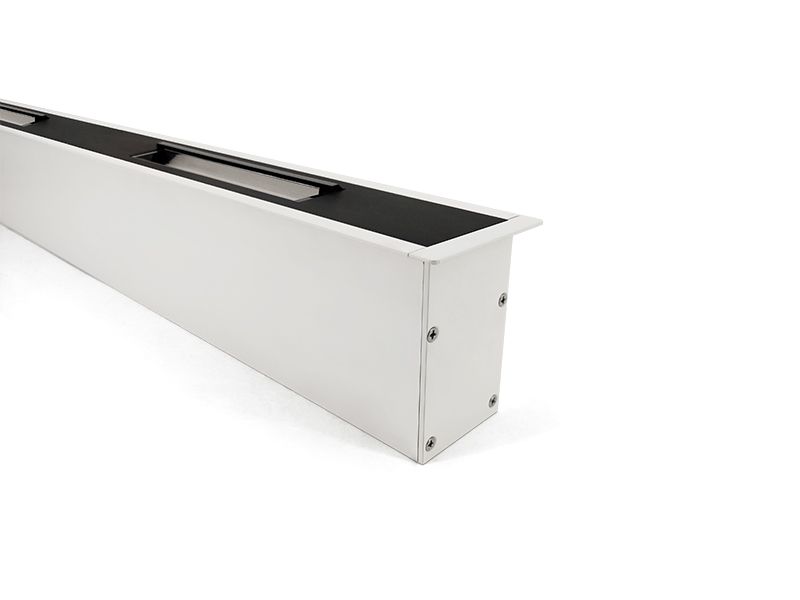

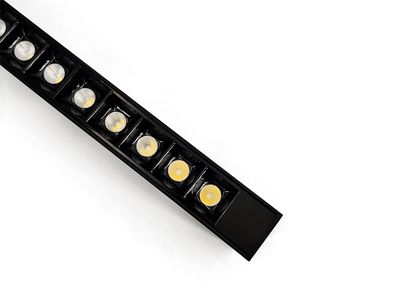

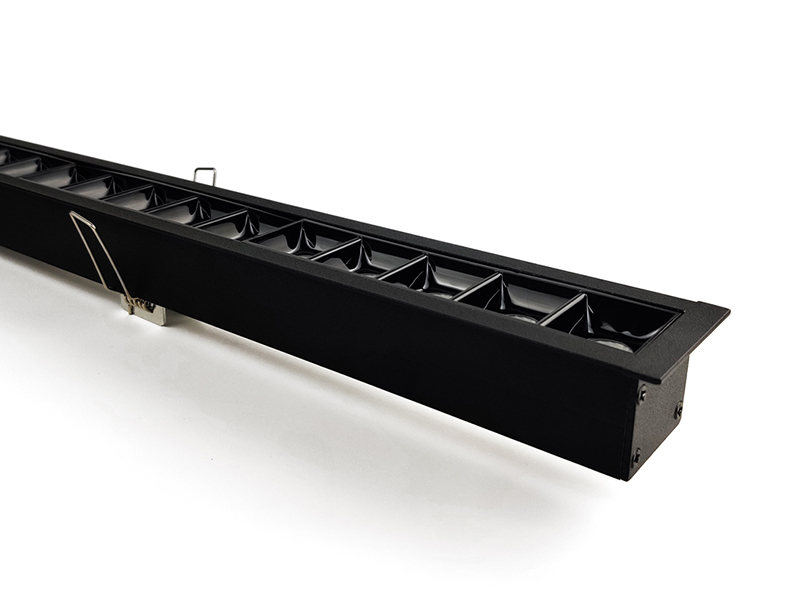

LUZ Louver Trimmed Recessed LED Linear Light, 2835 LEDs, 90lm/W
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 15°, 35°, 45°
- Luminous Flux (lm/m): 1430
- Power (W/m): 19
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

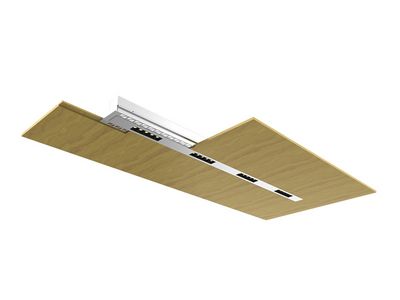

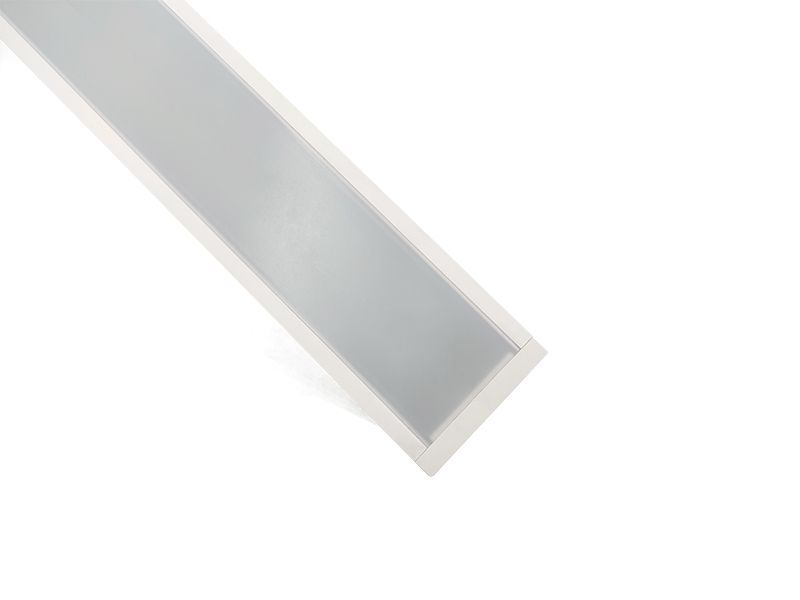

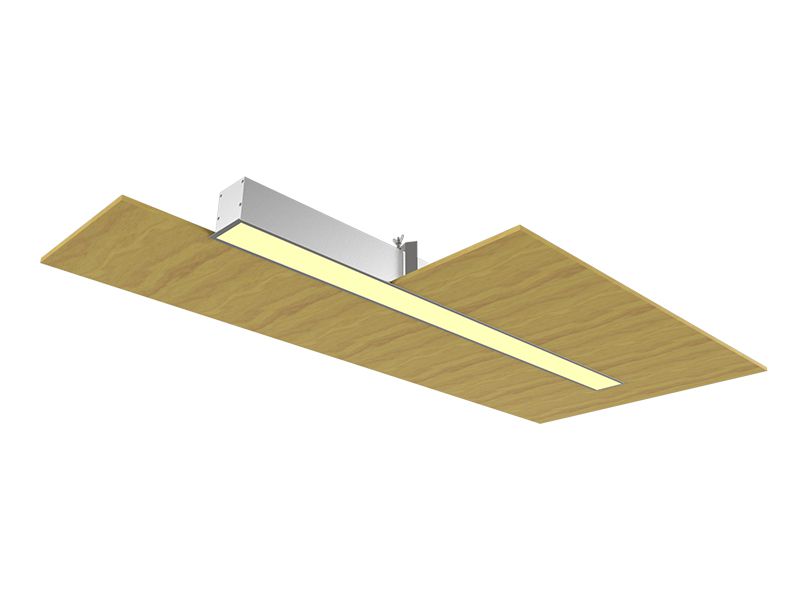

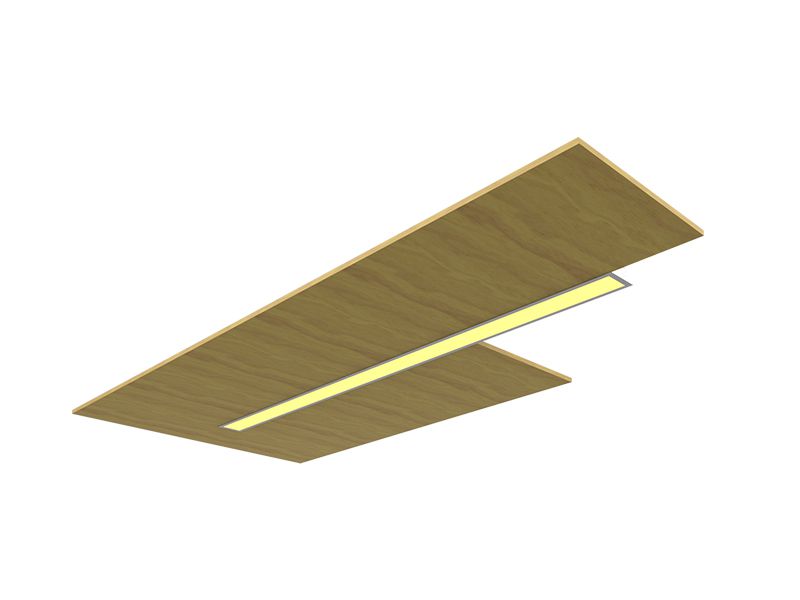

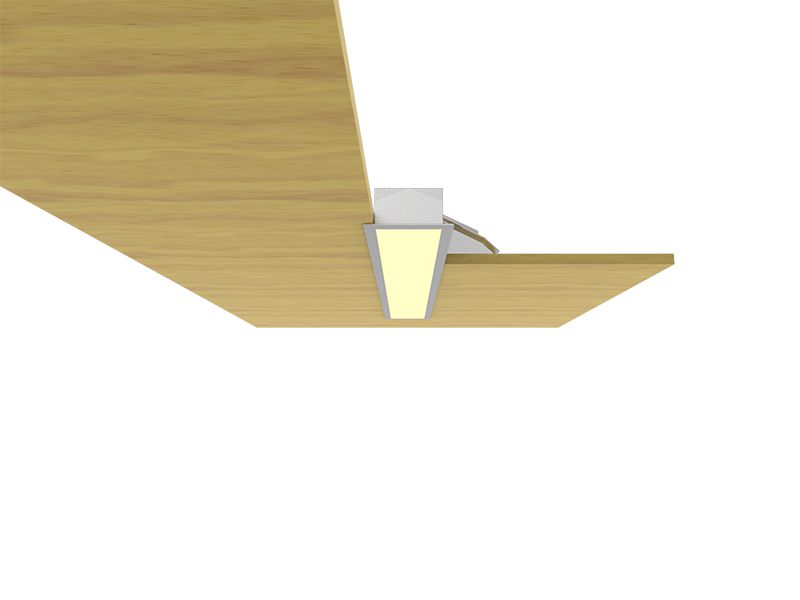

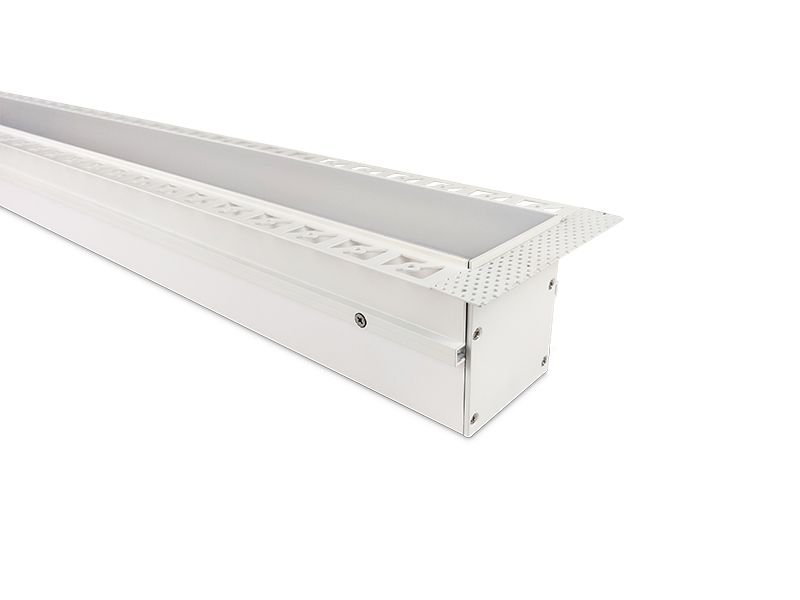

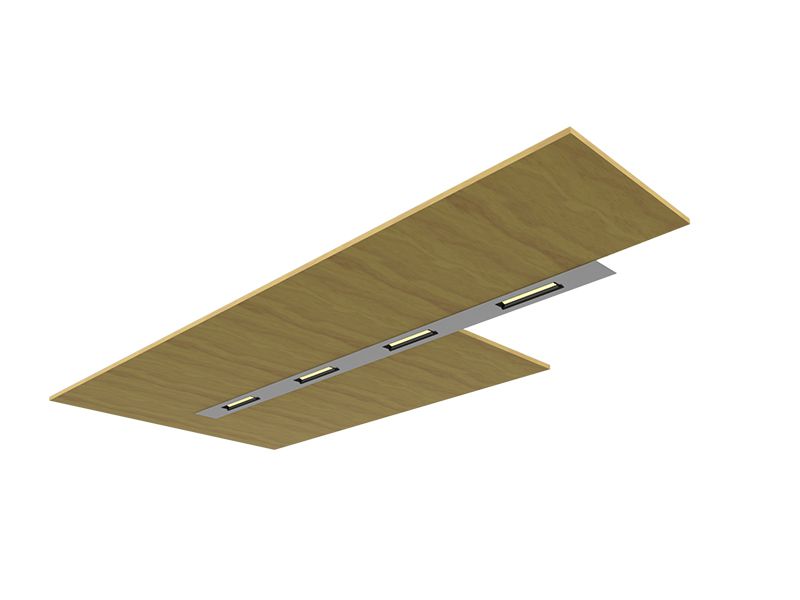

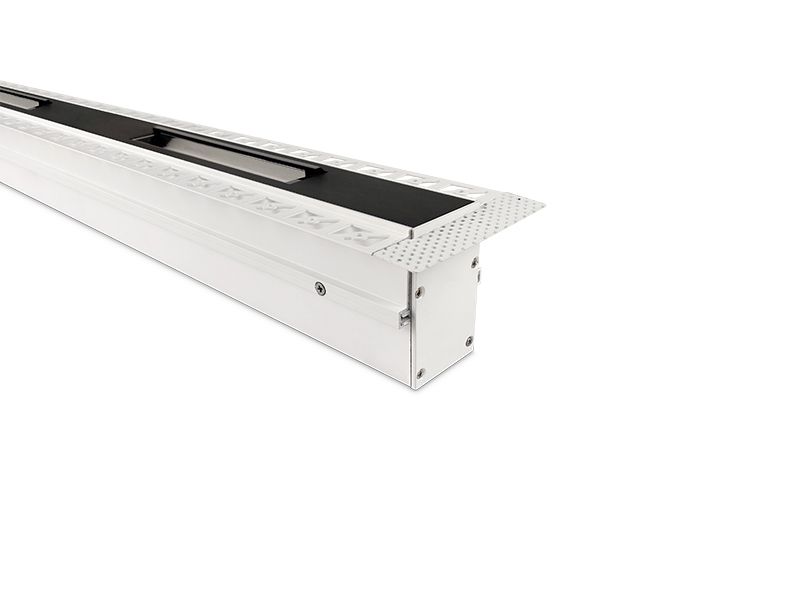

LUZ Trimless Recessed LED Linear Light, 2835 LEDs, 90lm/W
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 88°
- Luminous Flux (lm/m) : 2430
- Power (W/m) : 26
- Efficacy (lm/W) : 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

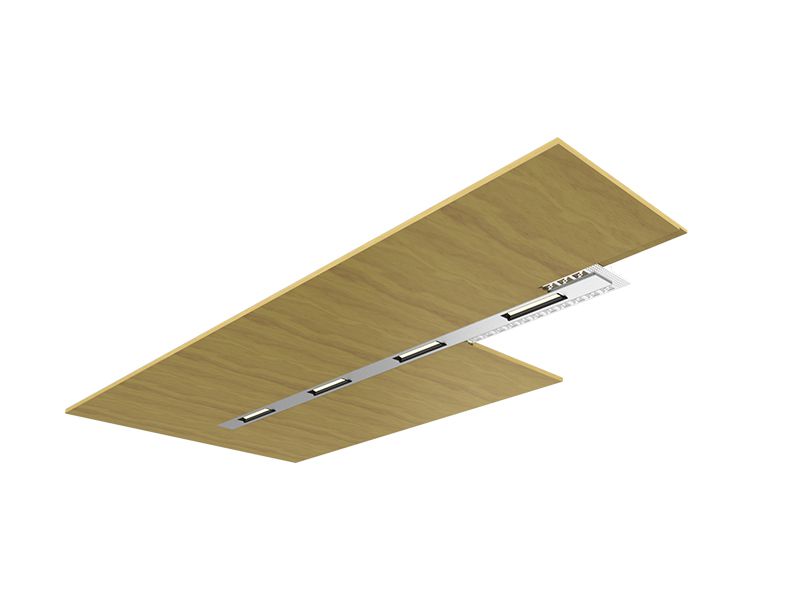

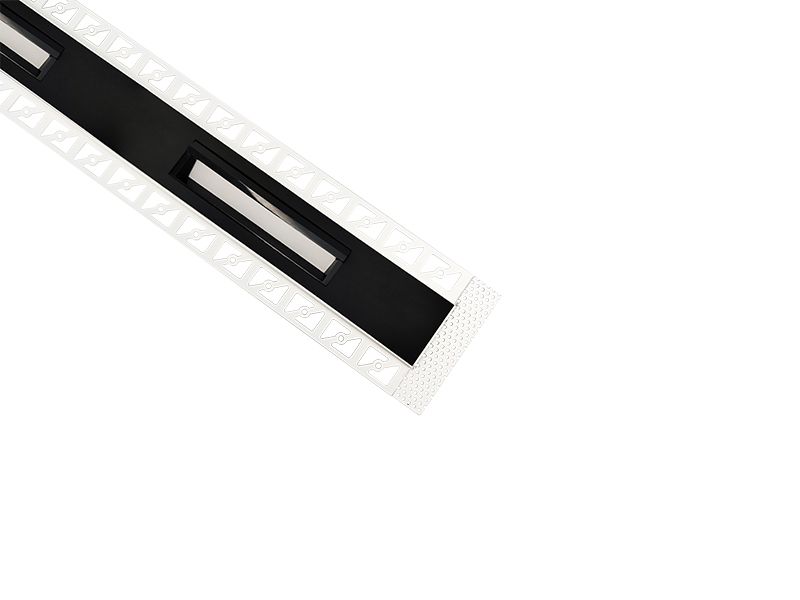

LUZ Wall Washer Trimless Recessed LED Linear Light
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: Asymmetric 9°
- Luminous Flux (lm/m) 1384
- Power (W/m) : 19
- Efficacy (lm/W): 70
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

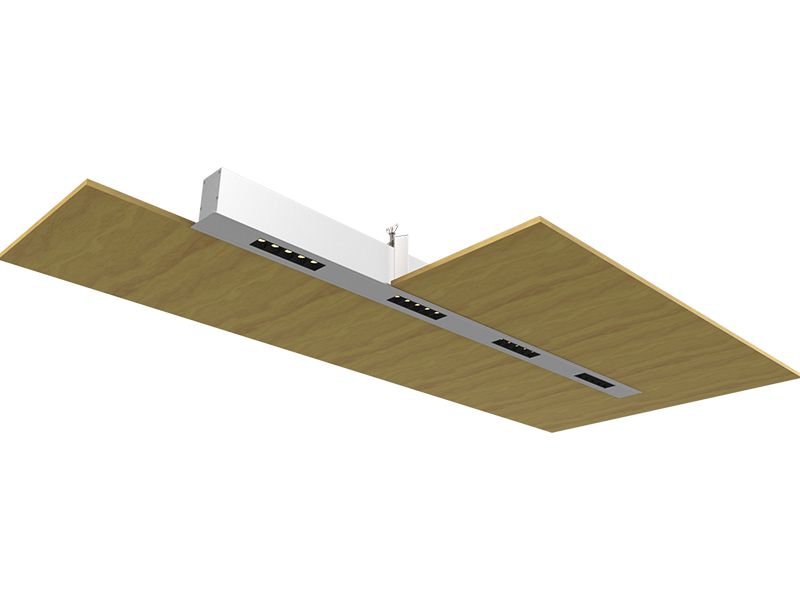

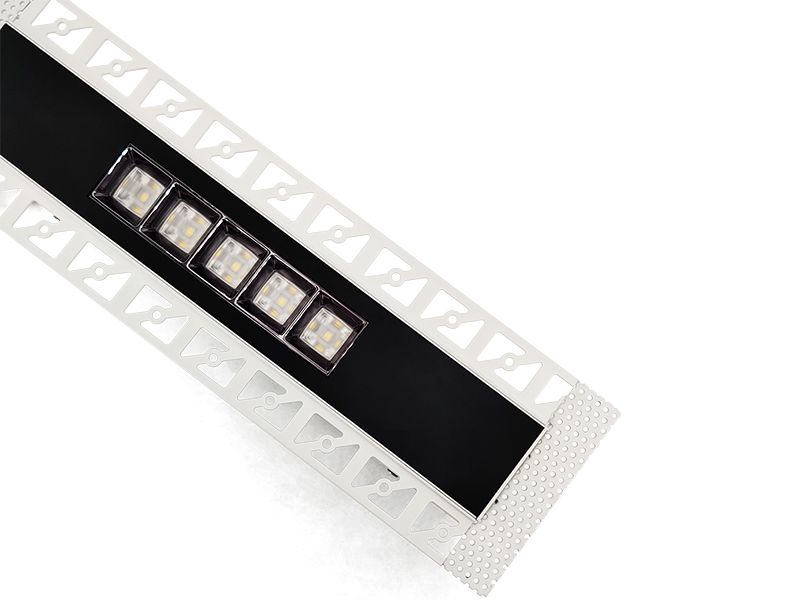

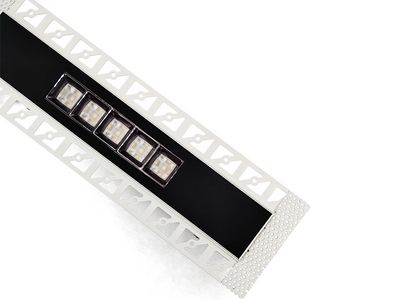

LUZ Louver Trimless Recessed LED Linear Light
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 15°, 35°, 45°
- Luminous Flux (lm/m): 1430
- Power (W/m): 19
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

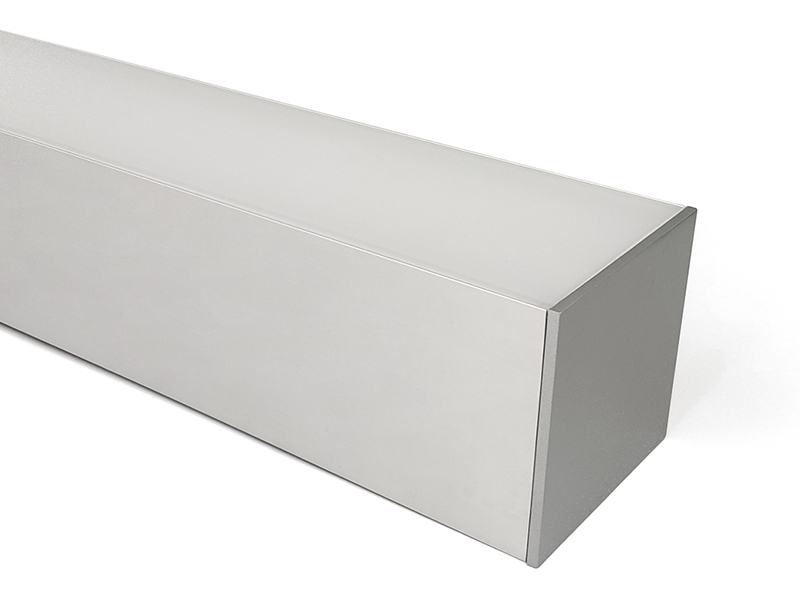

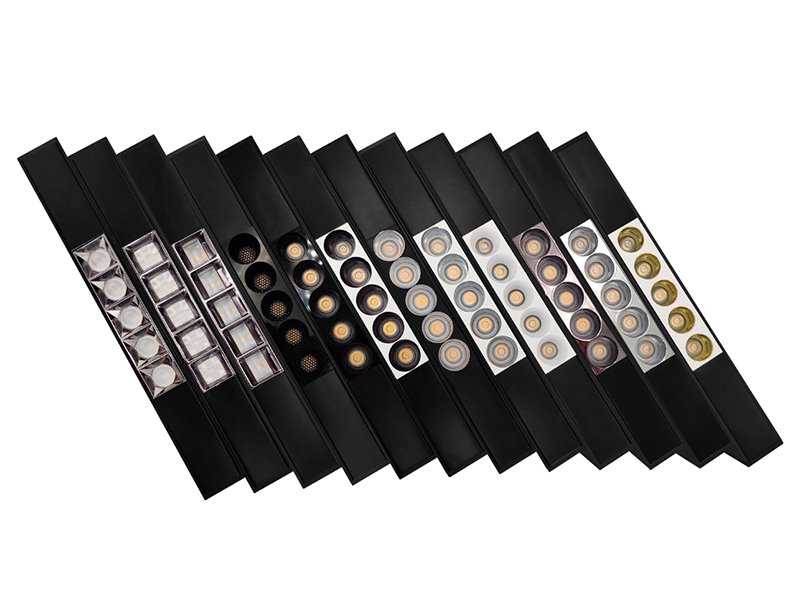

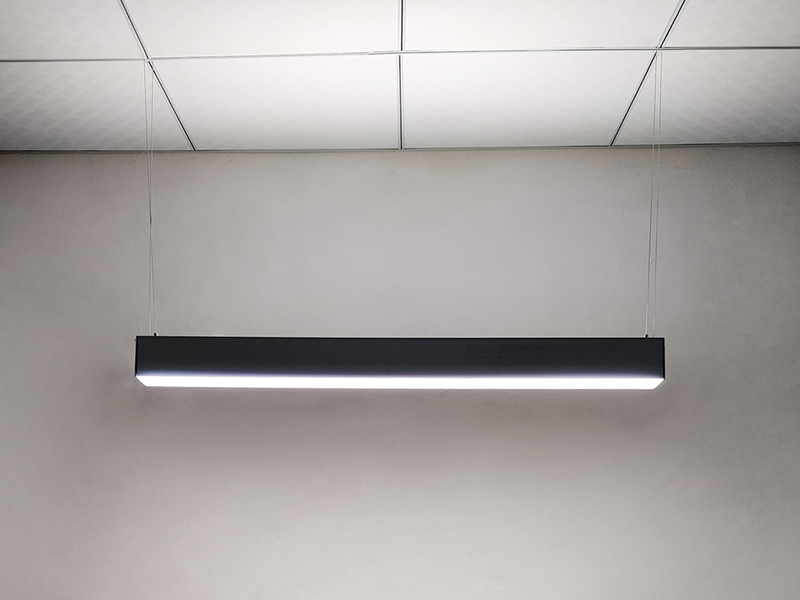

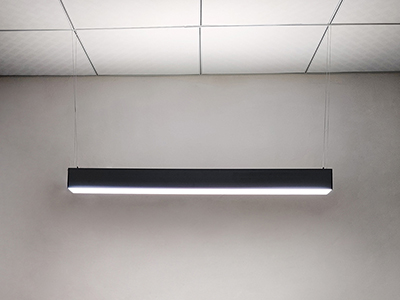

SLIM Series LED Linear Light
- Slim Series P/M is a linear LED lighting fixture with internal drivers featuring with various optical options.
- Hundreds of options available depending on the lighting environments
- 15° / 30° / 45° / 50° / 50x50° / 35x75° louver / wall washer louver or TRI (Total Internal Reflection) lens are available to satisfy most of the lighting applications
- Features 80+ or 95+ Ra LEDs.
- White color from 2700K to 6500K
- Dimmable LED driver available in Dali, 0/1-10V type, also controllable options in DMX, PWM and 2.4G
- The fixture can be suspended, or ceiling Mounted.
- Fixture lengths are available in 2ft, 4ft, 5ft and 8ft, and custom lengths can be made within 19.6ft.
Finish
- Aluminum clear matt anodized
- White / black powder coating
- Customized RAL color available

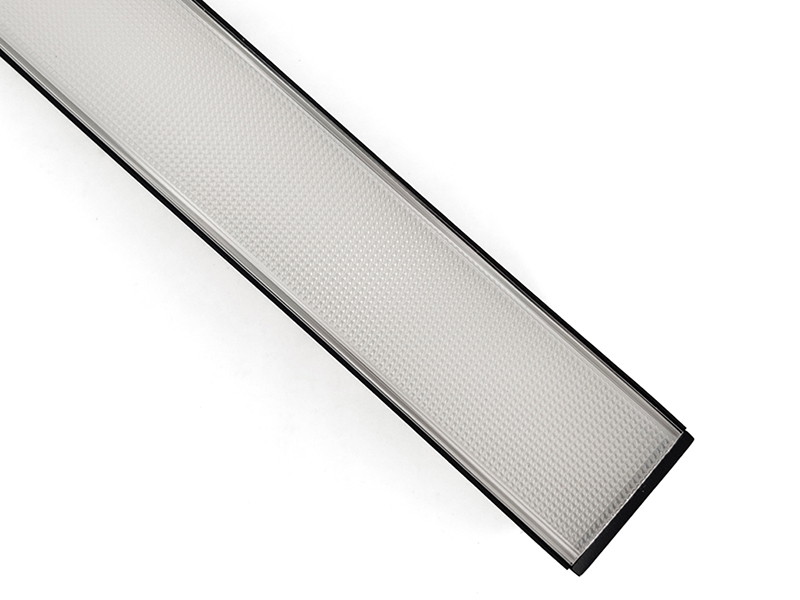

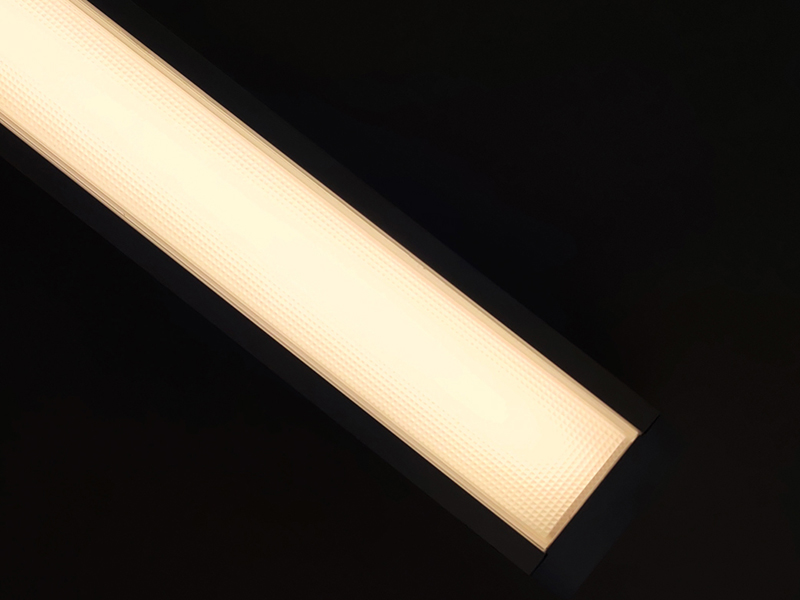

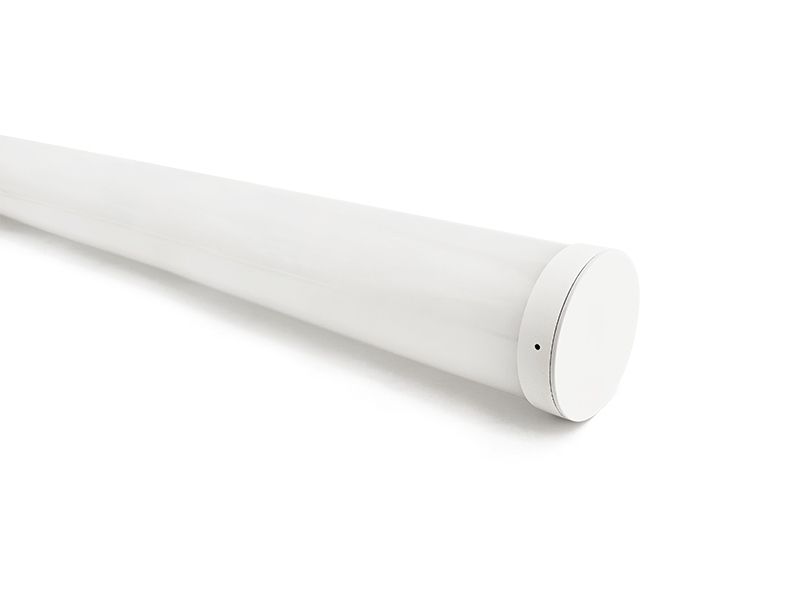

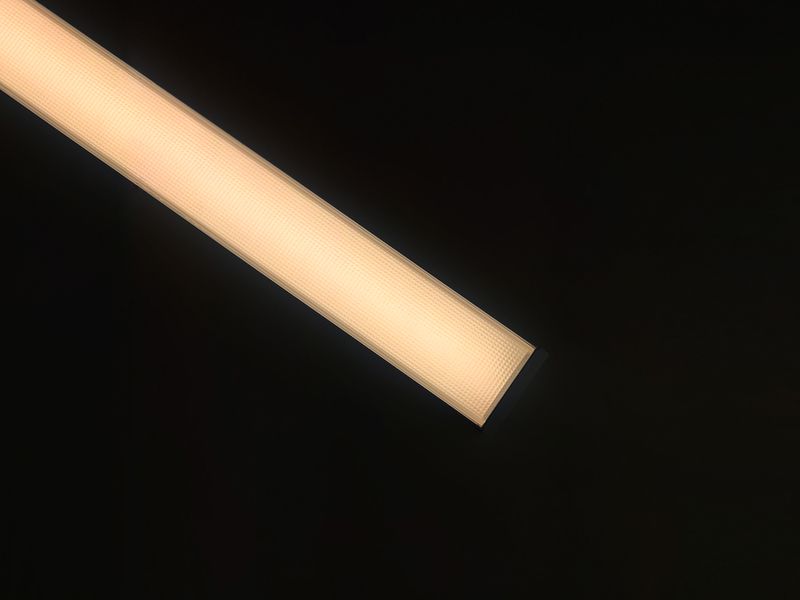

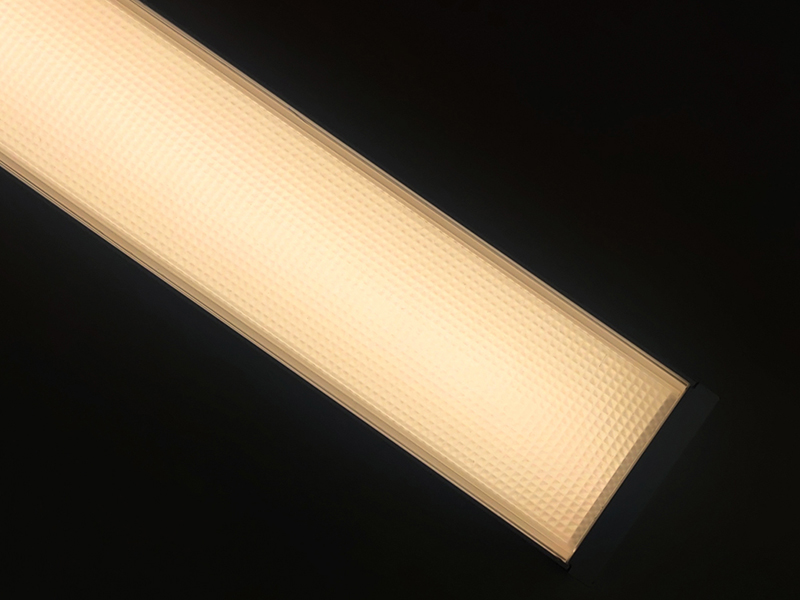

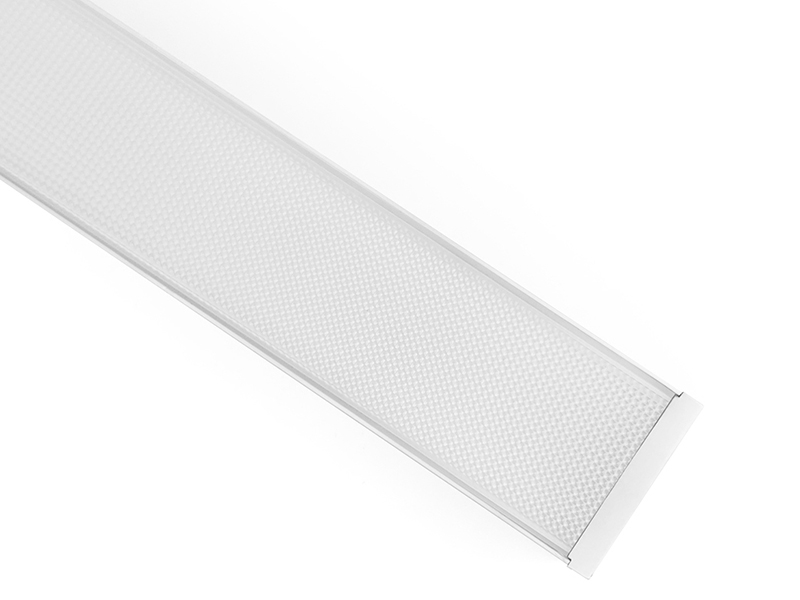

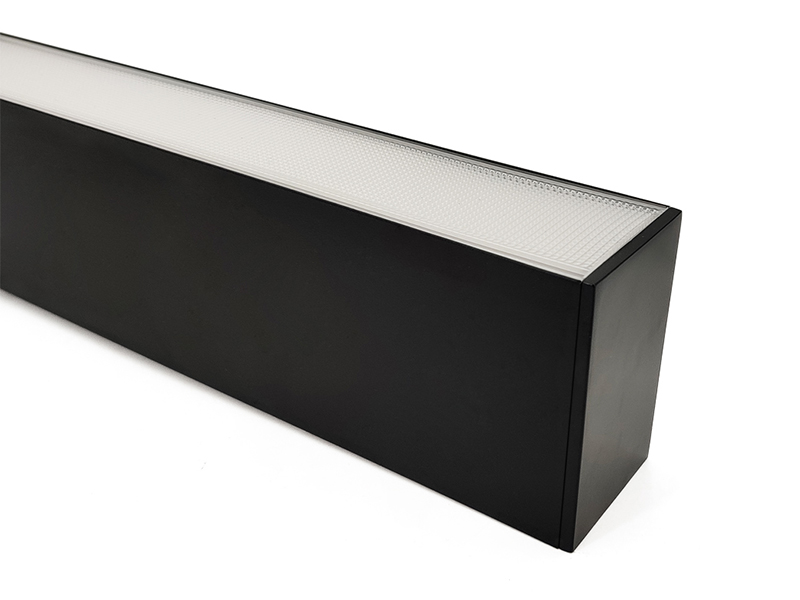

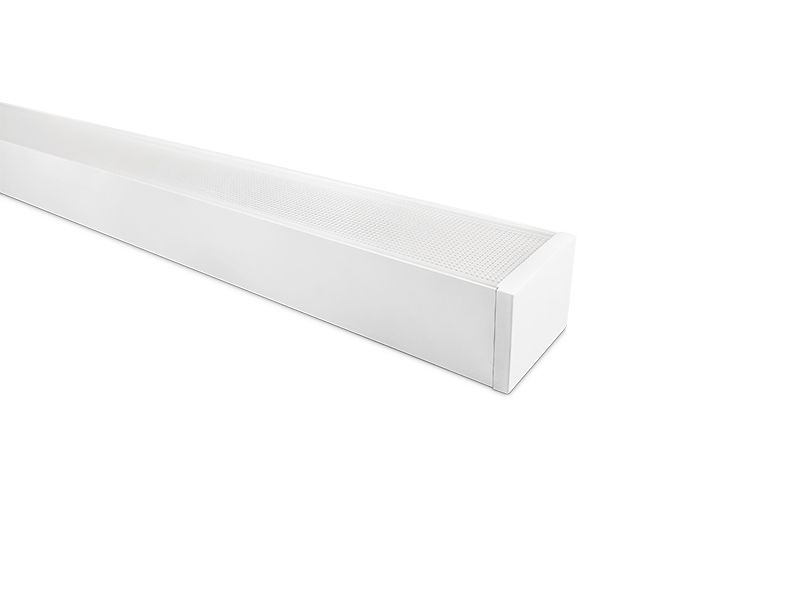

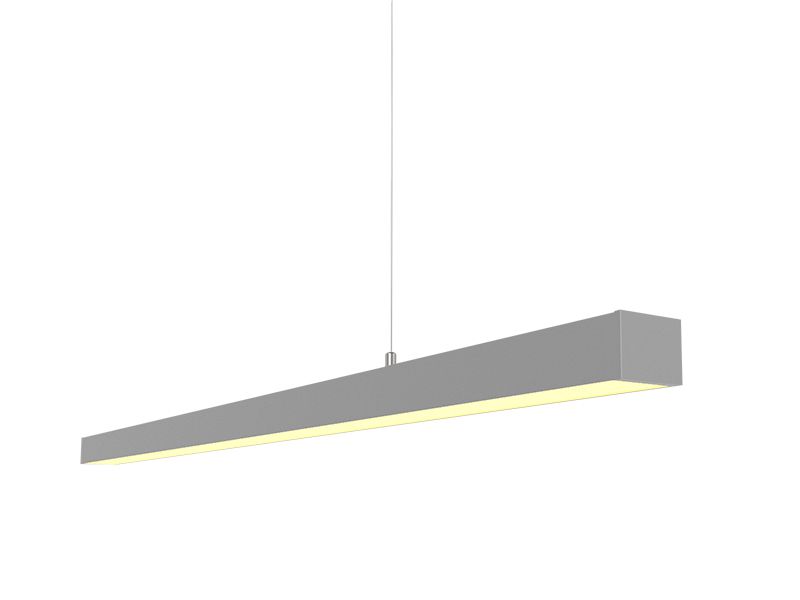

Slim Series PC Diffuser LED Linear Light
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 1725
- Power (W/m): 19
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty
LUZ 15° / 30° / 45° Surface LED Linear Light, 2835 LEDs, 90 lm/W,UGR<12
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 50*50°
- Luminous Flux (lm/m): 1430
- Power (W/m): 17.5
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

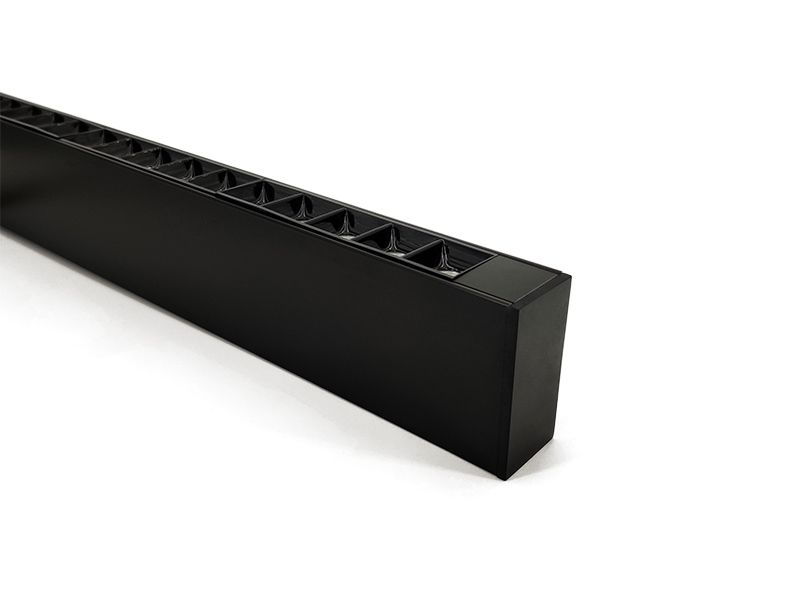

SLIM Series 35X75° Louver Surface Linear Light
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 37*75 °
- Luminous Flux (lm/m): 1431
- Power (W/m): 15
- Efficacy (lm/W): 95
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty
SLIM Series 50° Round In Square Louver Surface Linear Light
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 50 °
- Luminous Flux (lm/m): 1431
- Power (W/m): 15
- Efficacy (lm/W): 95
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty
SLIM Series 50°Round In Diamond Louver Surface Linear Light
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 50 °
- Luminous Flux (lm/m): 1431
- Power (W/m): 15
- Efficacy (lm/W): 95
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

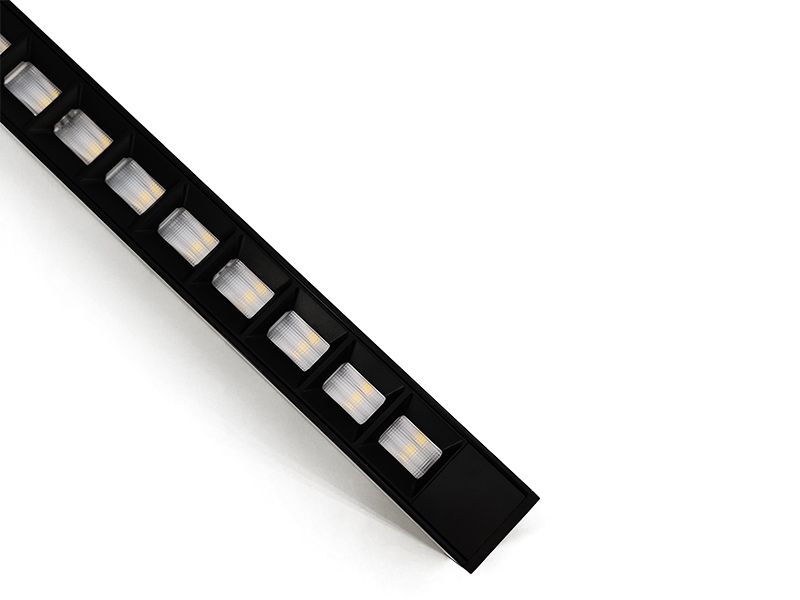

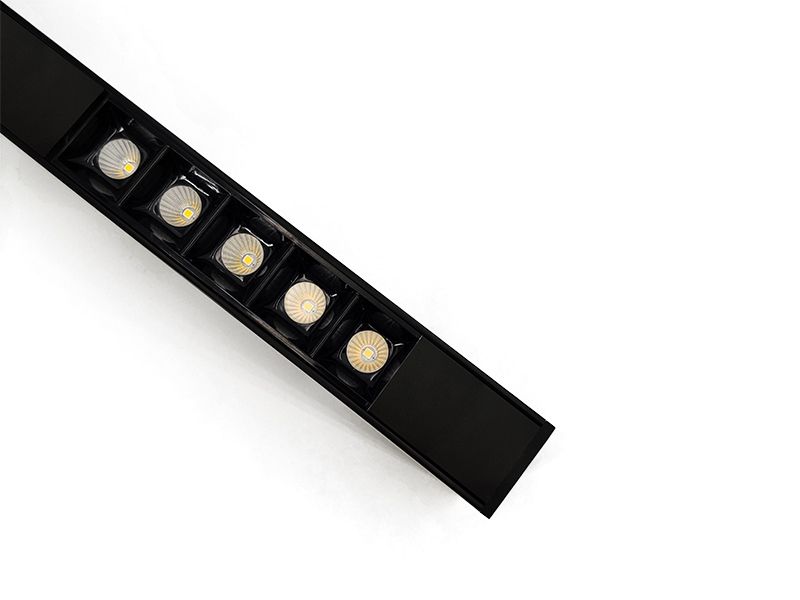

SLIM Series 15°/30° / 45° Reflector Louver Surface Linear Light
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 15° 35° 45°
- Luminous Flux (lm/m): 1431
- Power (W/m): 17.5
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

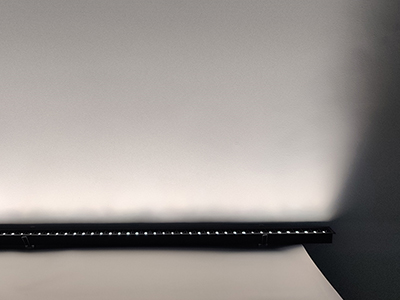

SLIM Series Wall Washer Surface Linear Light
- CCT: 3000K, 4000K, 5000K, 6500K
- LED Type: 2835
- Beam Angle: 90°
- Luminous Flux (lm/m): 1383
- Power (W/m): 19
- Efficacy (lm/W): 80
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

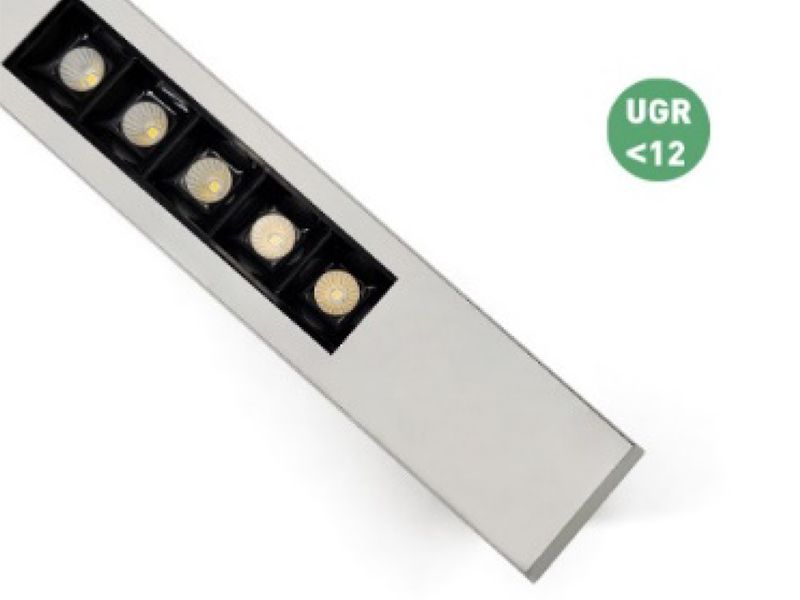

U357228 Cone Louver light, UGR<12, 2835LEDs, 90lm/W
- 12° / 15° / 24°/ 30° / 38°/ 45° / 50° / 50×50° / 35×75° / 70×70° / 90×90° louver/ wall washer louver with TRI (Total Internal Reflection) lens are available to satisfy most of the lighting applications
- Fixture features 80+ or 95+ Ra LEDs
- White color from 2700K to 6500K

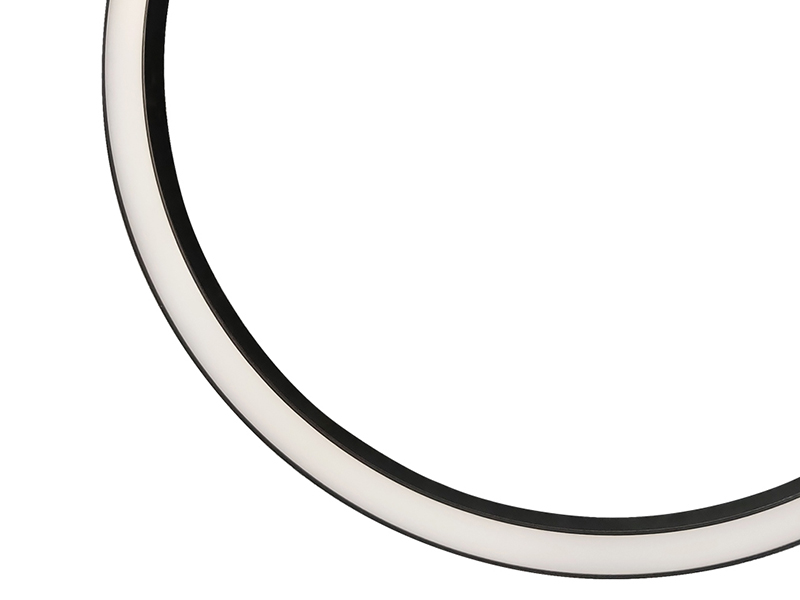

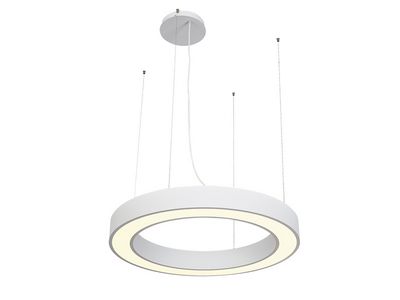

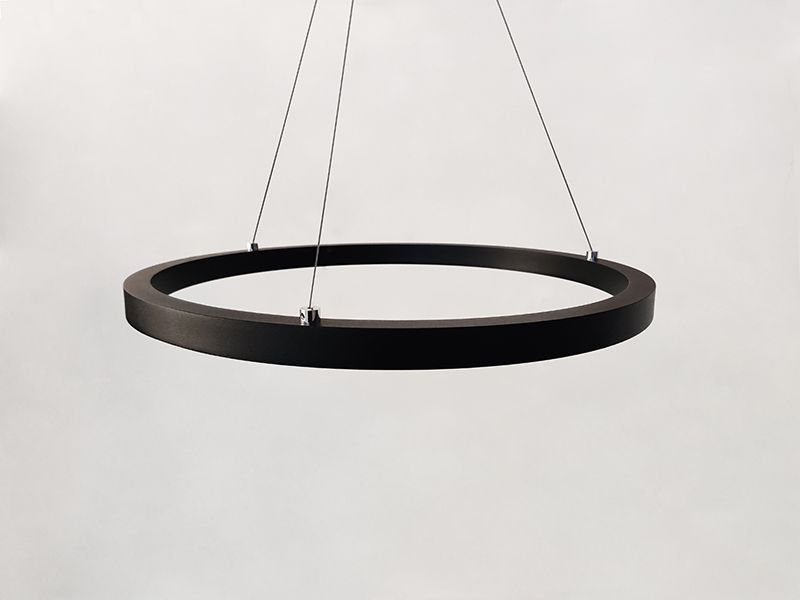

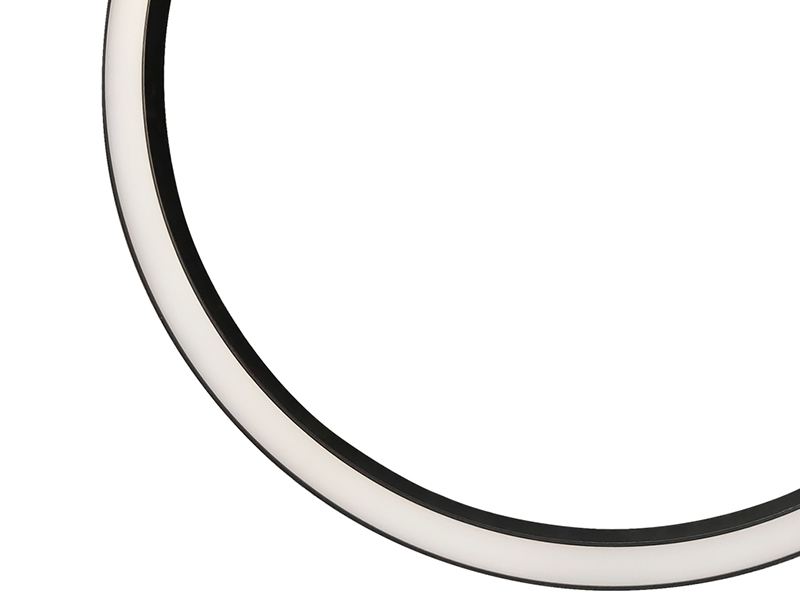

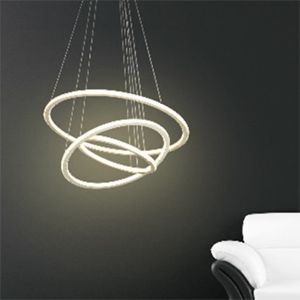

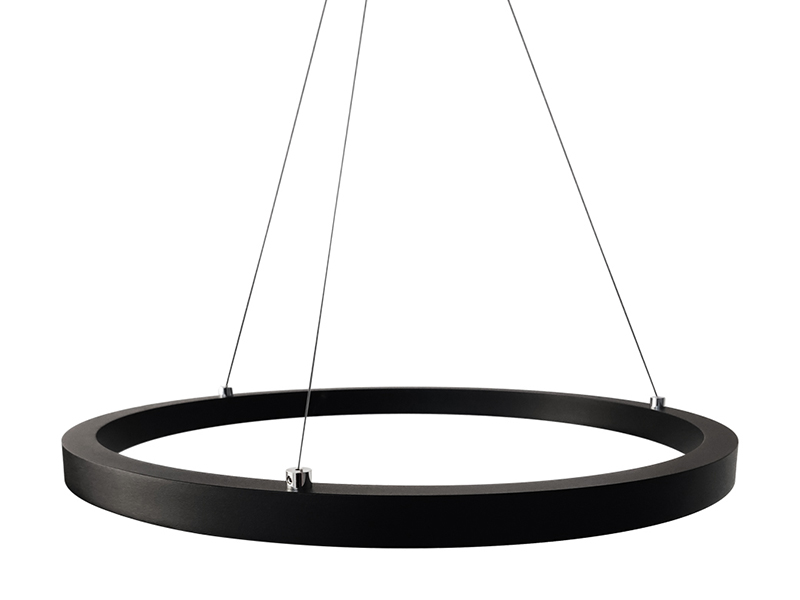

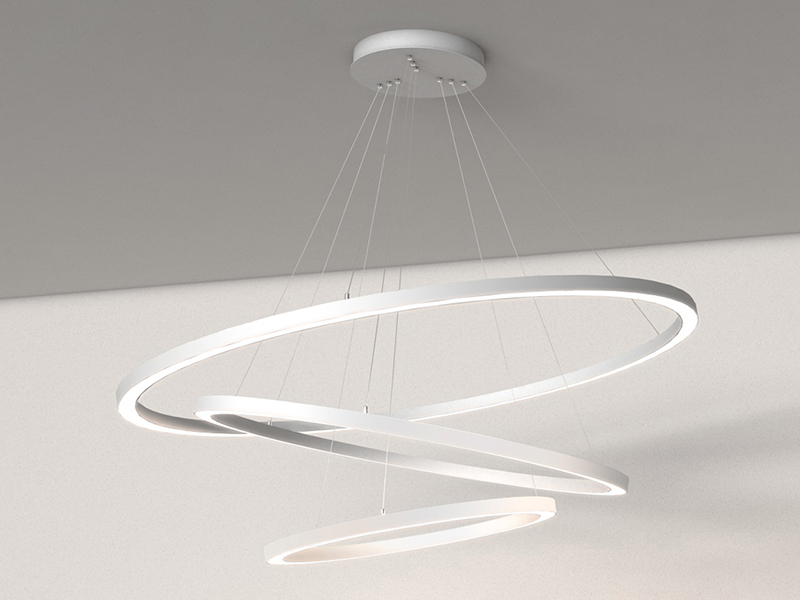

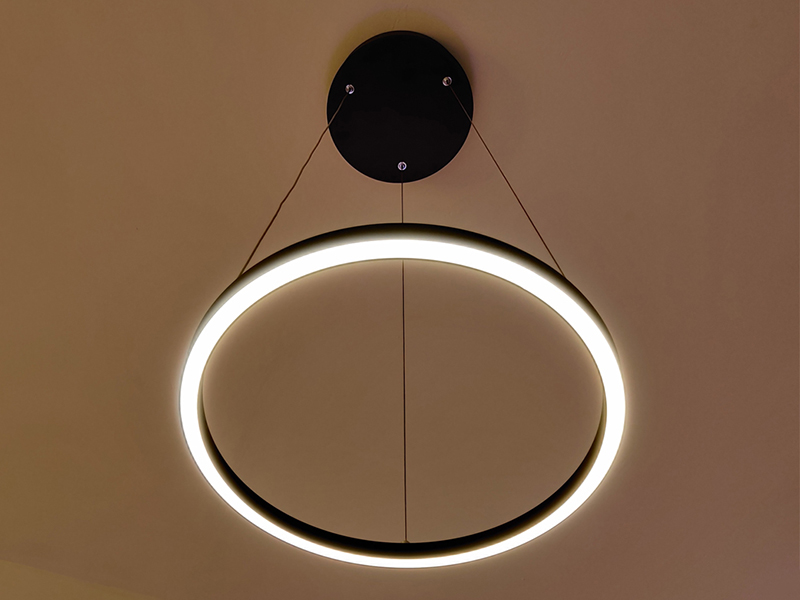

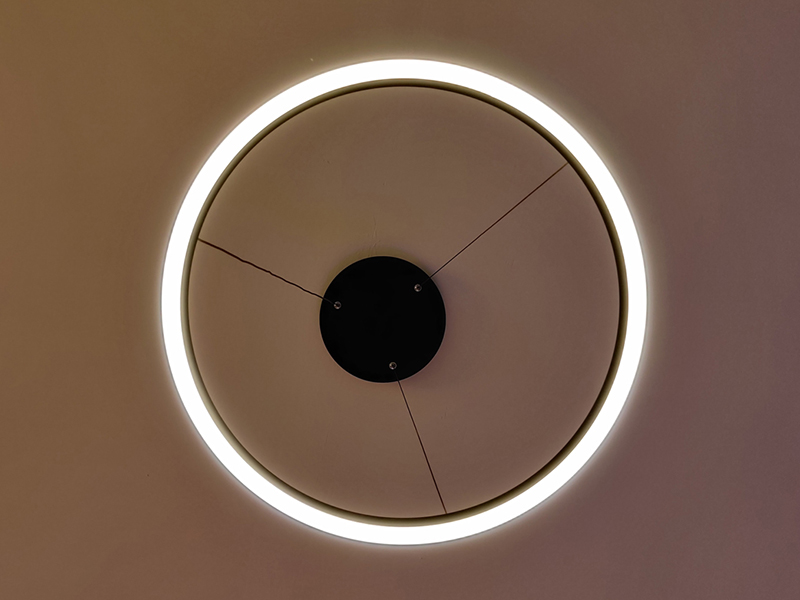

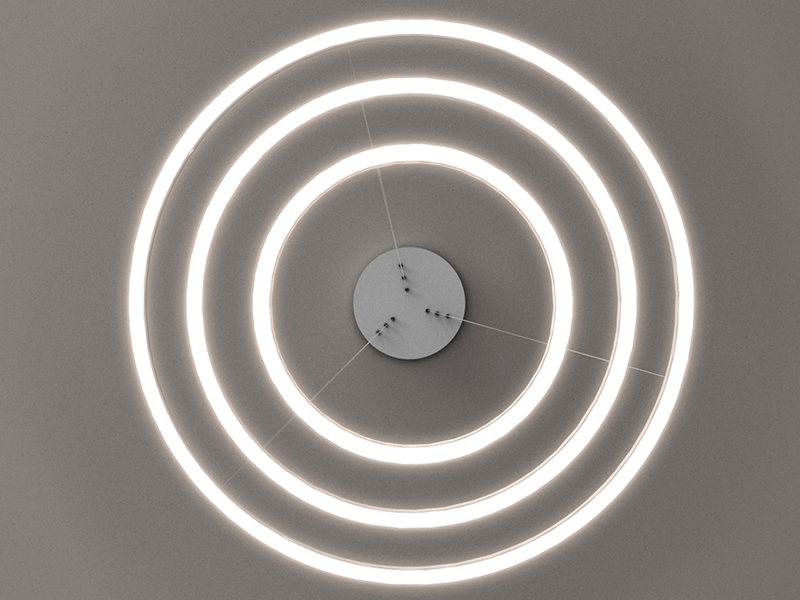

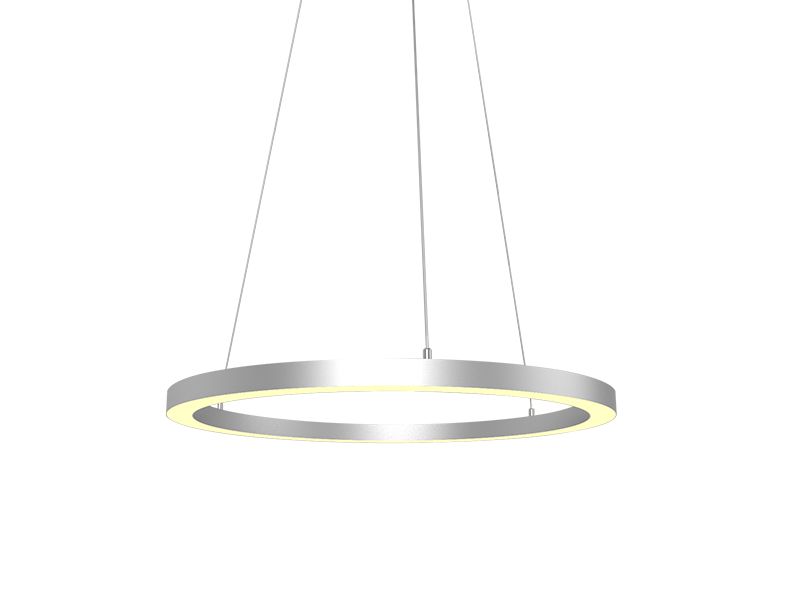

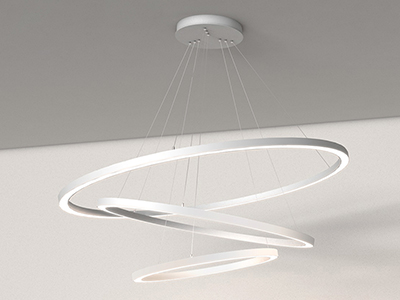

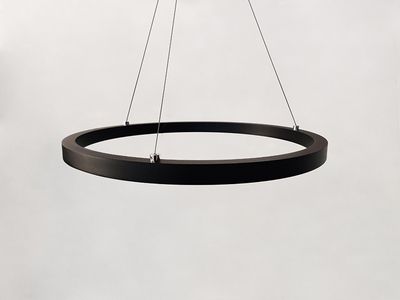

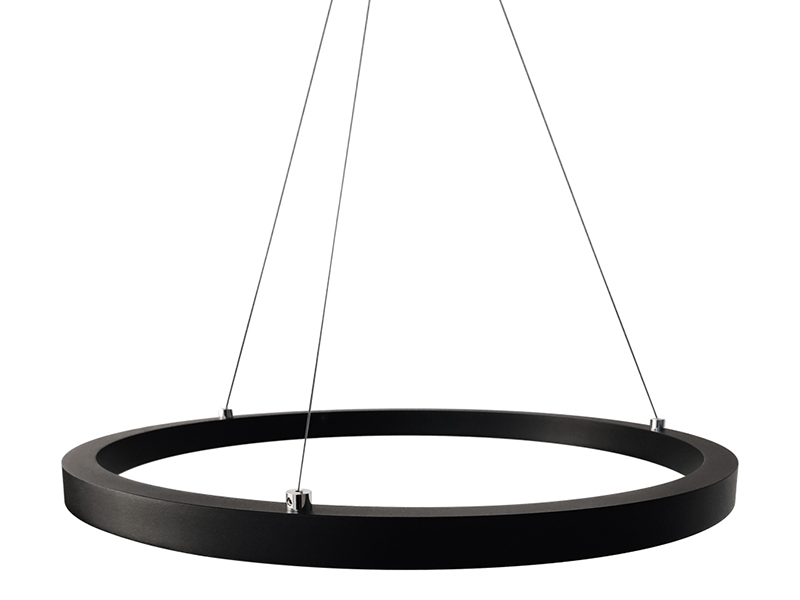

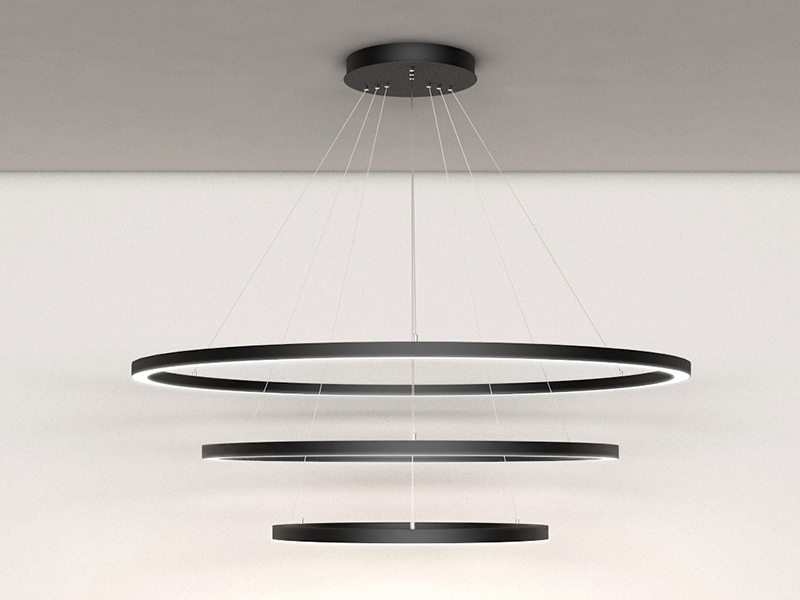

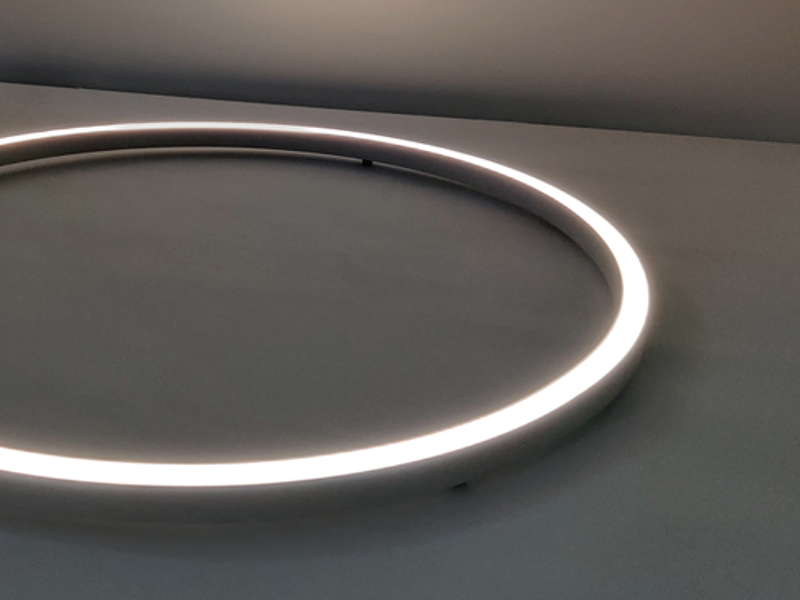

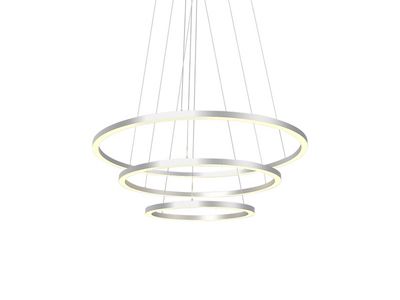

Ring Pendant Lighting
- Ring pendant lights are built by aluminum extrusion fixture with silicone lens, creating smooth and comfort lighting.
- The light sourced are Osram LED in 80+ or 90+ Ra available.
- Color temperature options from 2700K to 6500K, dual white at WW+NW available
- Dimmable available
- Ring diameter available in 450mm, 600mm, 800mm or customized
Finish
- Aluminum clear matt anodized
- White / black powder coating
- Customized RAL color available

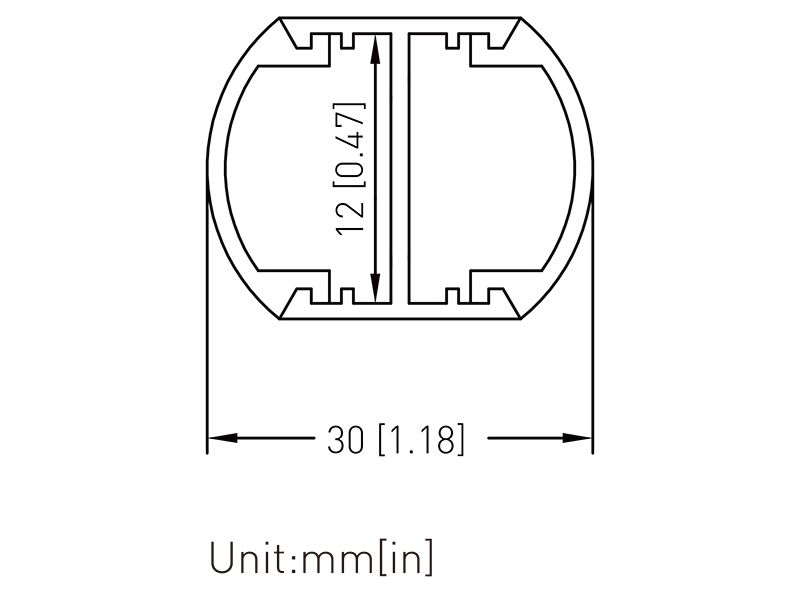

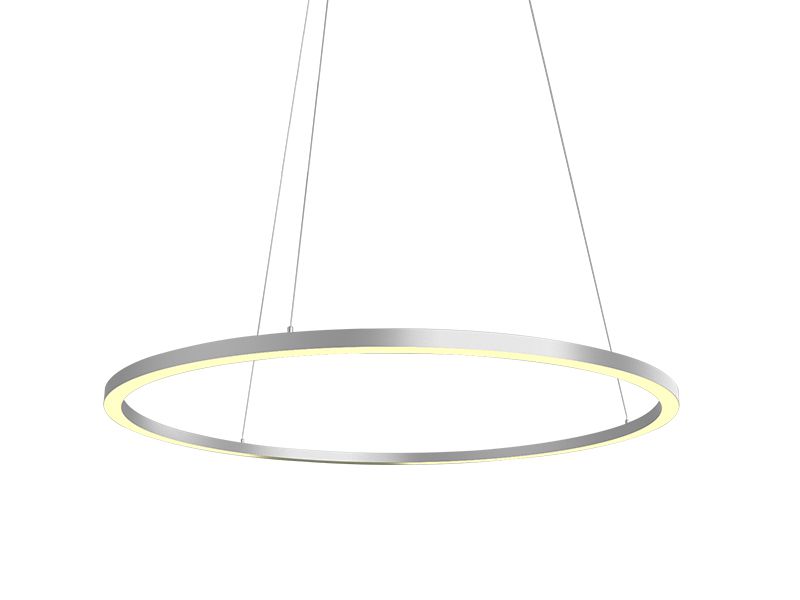

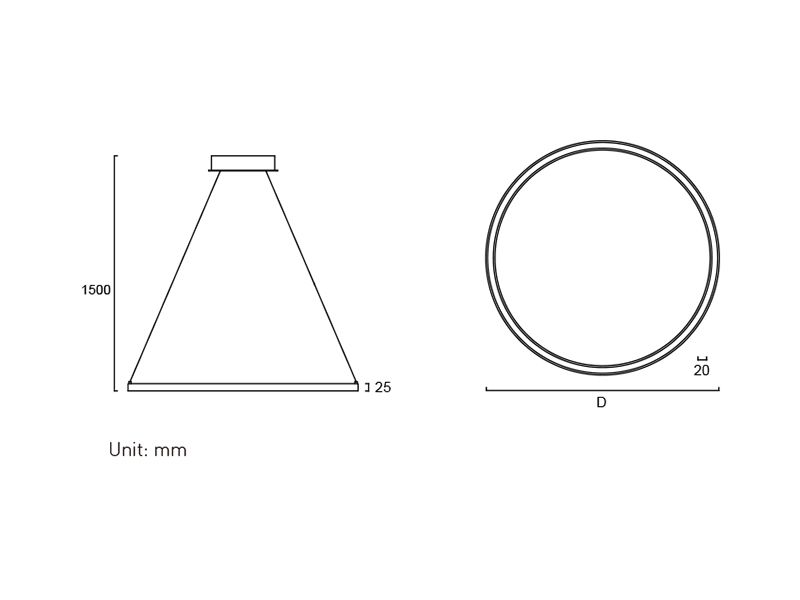

O30 Series LED Ring Pendant Light, Double Sided
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 360°
- Luminous Flux (lm/m): 4022 (φ1200mm)
- Power (W/m): 25 (φ450mm) 35 (φ600mm) 40 (φ800mm) 50 (φ1000mm) 60 (φ1200mm) 92(φ450mm +φ600mm +φ800mm) 142 (φ800mm +φ1000mm +φ1200mm)
- Efficacy (lm/W): 61
- Voltage: 90-265 VAC
- IP Rating: IP20
- 5-Year Warranty

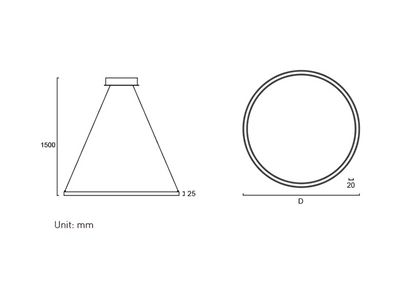

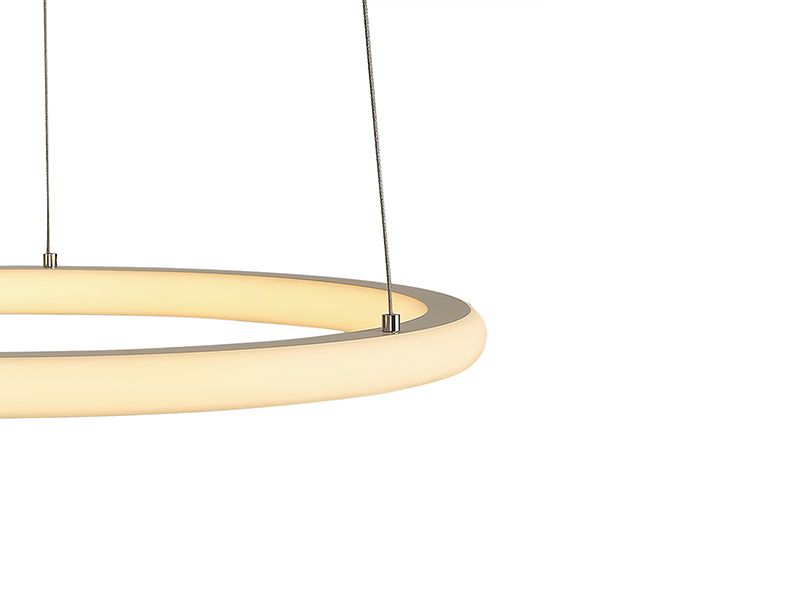

O20 Series LED Ring Pendant Light
- CCT: 3000K, 4000K, 6000K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 4650(φ1500mm*100mm)
- Power (W/m): 25 (φ450*25mm) 35 (φ600*25mm) 40 (φ800*100mm) 50 (φ1000*100mm) 60(φ1200*100mm) 72(φ1500*100mm)
- Efficacy (lm/W): 69
- Voltage: 90-265 VAC
- IP Rating: IP20
- 5-Year Warranty

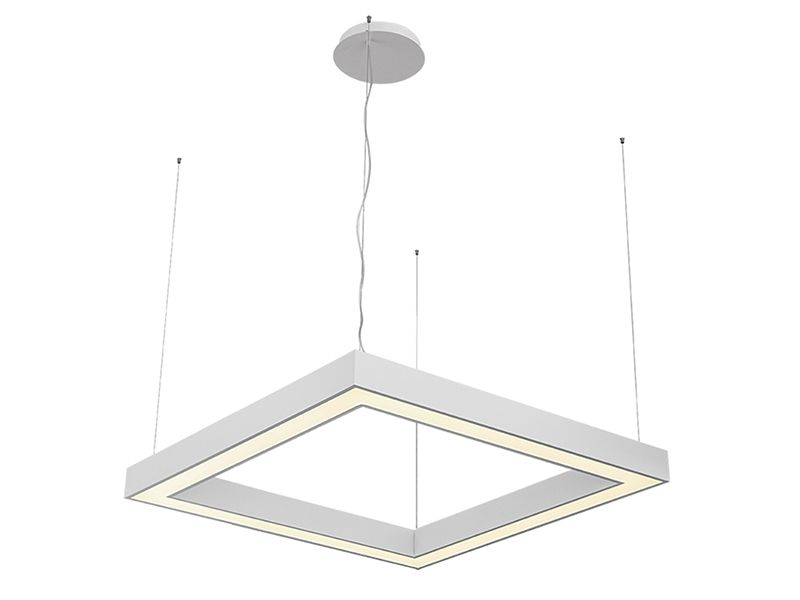

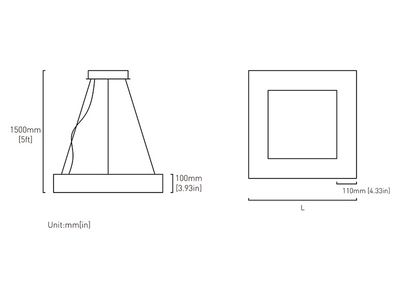

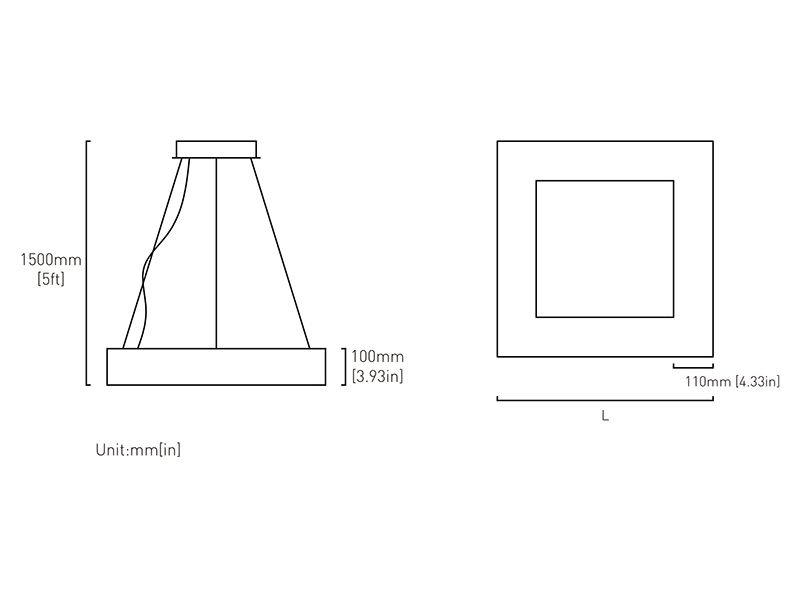

S100 Series Square Light
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 7812(1200*1200*100mm)
- Power (W/m): 72(850*850*100mm) 142(1200*1200*100mm)
- Efficacy (lm/W): 55
- Voltage: 90-265 VAC
- IP Rating: IP20
- 5-Year Warranty
O35 Ring Light
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 4650
- Power (W/m): 2720
- Efficacy (lm/W): 80
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

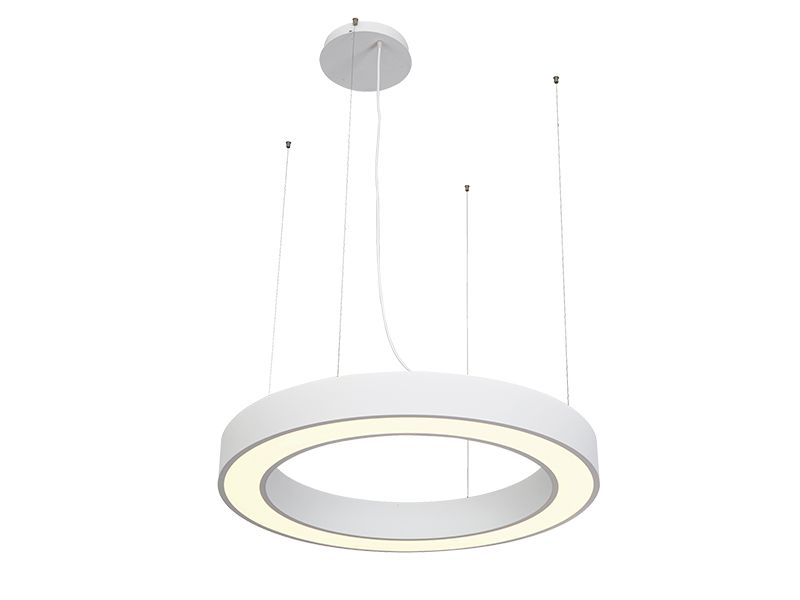

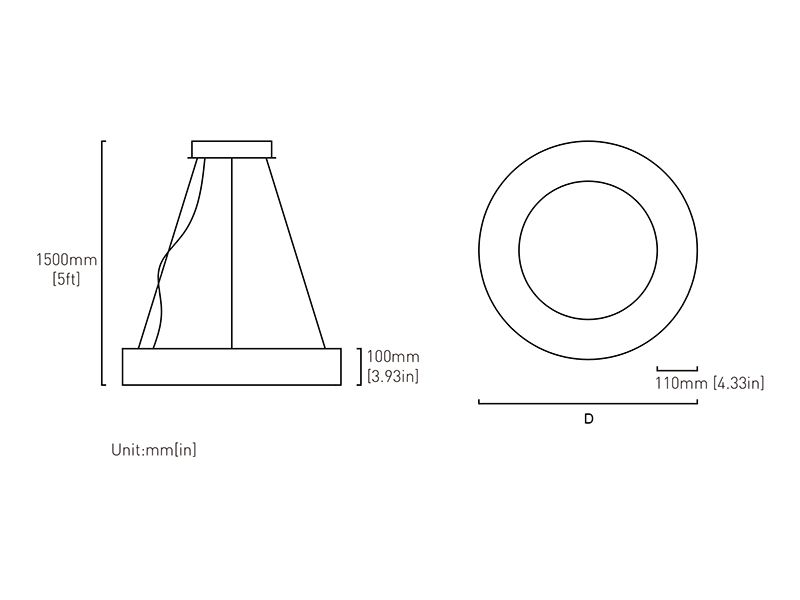

O100 Ring Light
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 8100(φ1800*110*100mm)
- Power (W/m): 30 (φ450*110*100mm) 40 (φ600*110*100mm) 60 (φ750*110*100mm) 72 (φ900*110*100mm) 92 (φ1000*110*100mm) 120(φ1500*110*100mm) 140(φ1800*110*100mm)
- Efficacy (lm/W): 58
- Voltage: 90-265 VAC
- IP Rating: IP20
- 5-Year Warranty
O30D Ring Light
- Light sources are available up to 95+ Ra
- Color temperature options from 2700K to 6500K
- Dual white at WW+NW available
Other
U6741R Series UGR<16 Recessed Linear Light
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 110°
- Luminous Flux (lm/m): 1950
- Power (W/m): 22
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty
U5141R Series External Driver Surface Linear Light
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 88°
- Luminous Flux (lm/m): 1950
- Power (W/m): 22
- Efficacy (lm/W): 90
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty

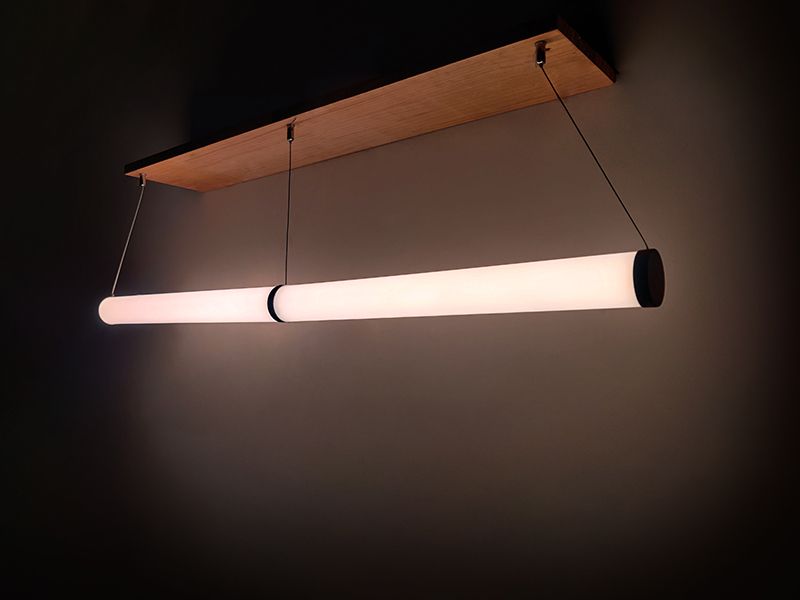

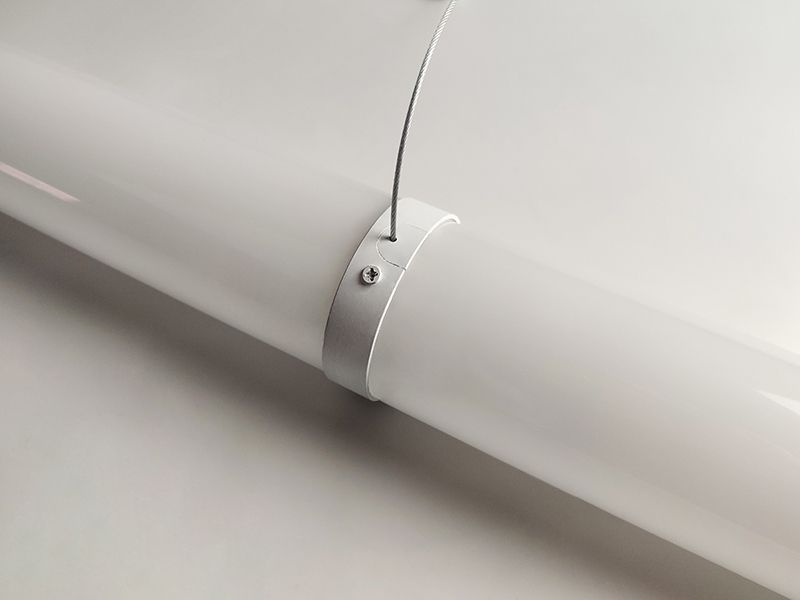

O600610P Series 360° Round Pendant Linear Light
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
- LED Type: 2835
- Beam Angle: 360°
- Luminous Flux (lm/m): 2340
- Power (W/m): 22
- Efficacy (lm/W): 108
- Voltage: 220-240 VAC / 100V-240 VAC
- IP Rating: IP20
- 5-Year Warranty
H10096 DIRECT & INDIRECT- PC & TIR Linear LED Light
- Fixture features 95+, 90+ or 80+ LM80 LEDs
- White color from 2700K to 6500K
- Dimmable driver available in Dali, 0/1-10V type, also controllable options in DMX, PWM and 2.4G Static
- Tunable white, RGBW solution available
U516833- PC Linear LED Light
- Simulating the natural lighting environment
- Fixture features 80+ or 95+ Ra LEDs
- White color from 2700K to 6500K
- Dimmable driver available in Dali, 0/1-10V,DMX, PWM type

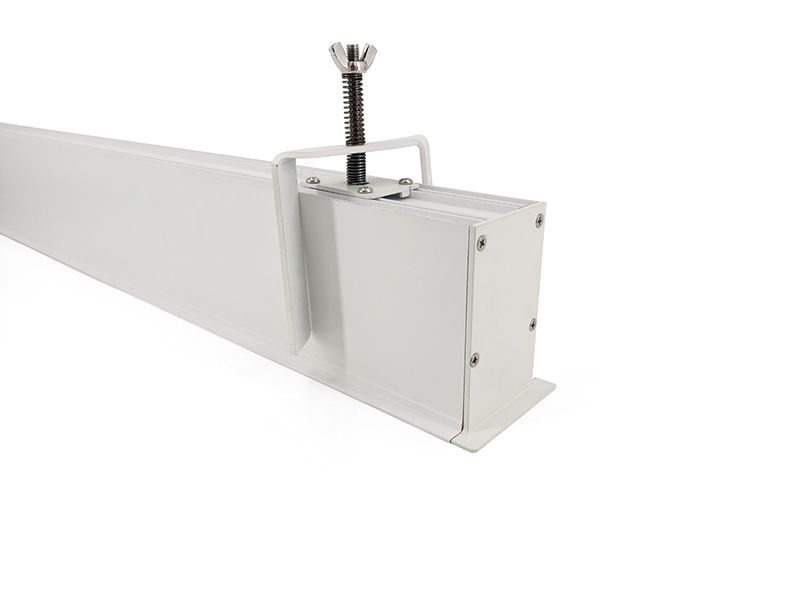

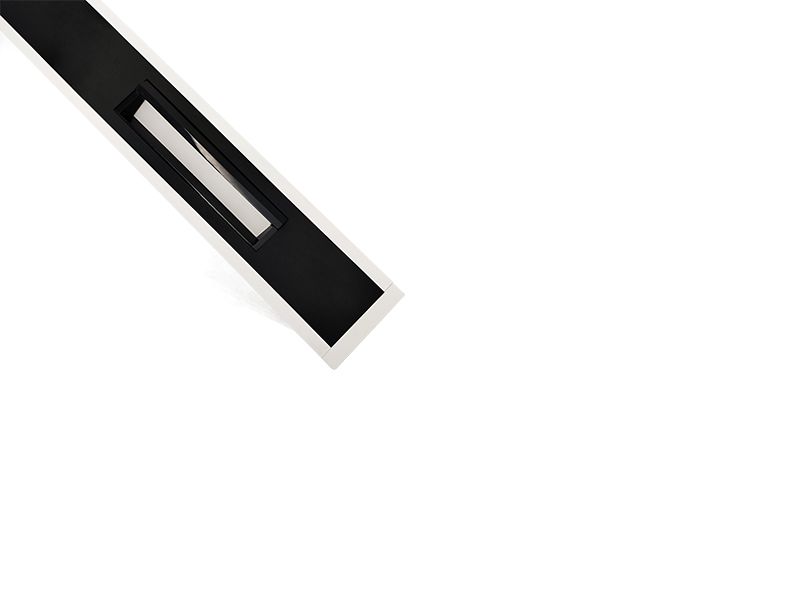

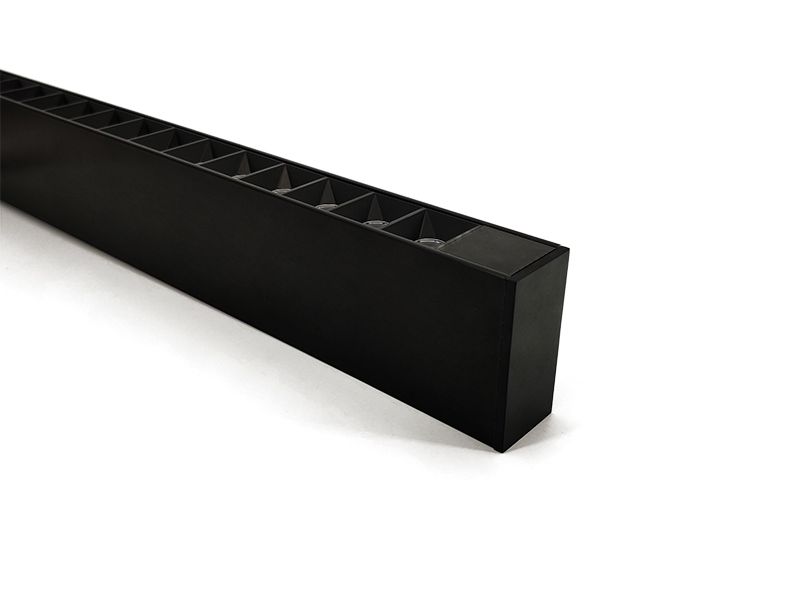

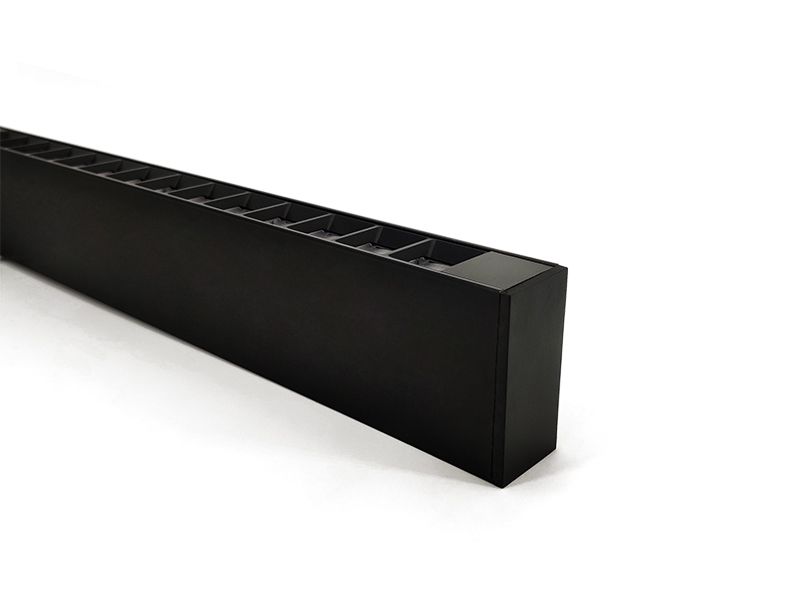

U463330TR Trimmed Recessed Linear LED Light

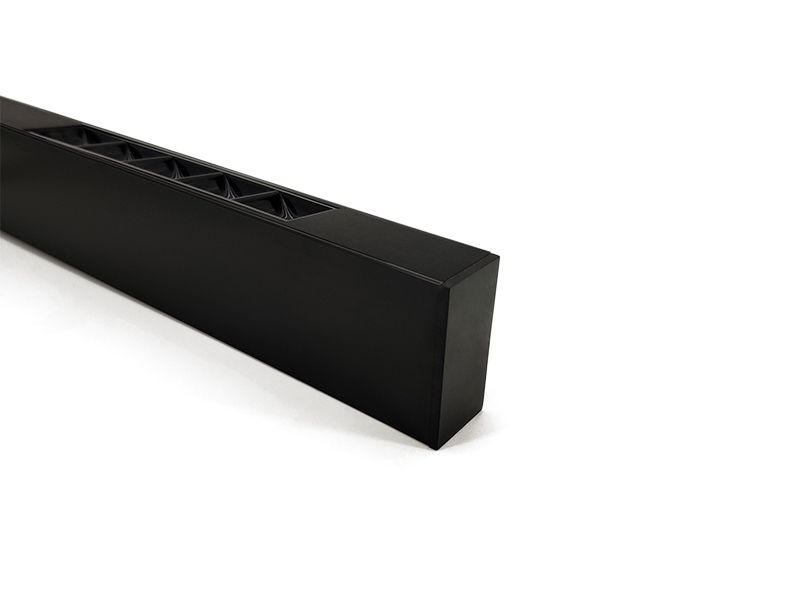

- Trimmed recessed linear lighting with anti-glare square / round louver optical design
- Small size with high output
- Luminous efficiency up to 100lm/W, and lumen per meter is up to 1979lm/m
- High light source quality, MacAdam in Step-3, CRI up to 95+
U514128- PC Linear LED Light
- Linear LED lighting fixture features direct lighting with external driver
- Fixture features 80+ or 95+ Ra LEDs
- White color from 2700K to 6500K
U674128- PC Trimmed Recessed Linear LED Light
- Trimmed recessed linear LED lighting fixture features direct lighting with external driver
- Fixture features 80+ or 95+ Ra LEDs
- White color from 2700K to 6500K
O20D Ring Light
- Light sources are available up to 95+ Ra
- Color temperature options from 2700K to 6500K
- Dual white at WW+NW available
O30D Ring Light
- Light sources are available up to 95+ Ra
- Color temperature options from 2700K to 6500K
- Dual white at WW+NW available

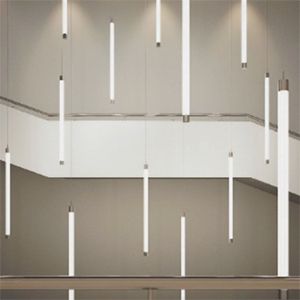

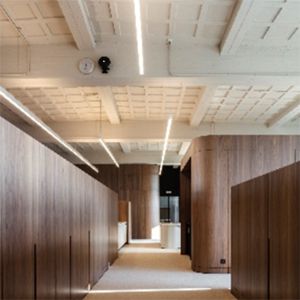

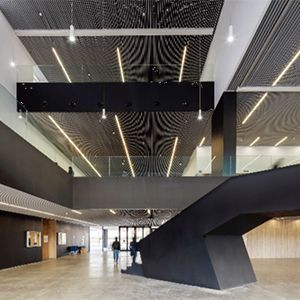

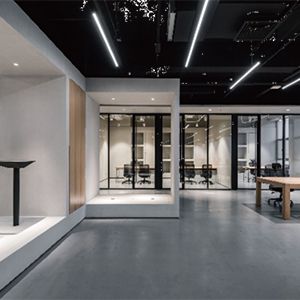

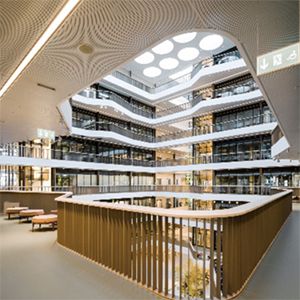

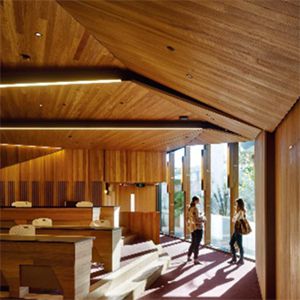

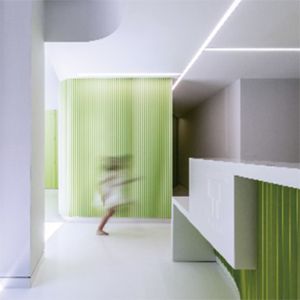

Applications
As a leading LED lighting manufacturer in the lighting industry, Blueview fouces on custom luninaire
manufacturing,
including signage lighting, commercial lighting and smart lighting system. Our superior quality LED luminaires
are
widely used for accent lighting, architectural lighting, channel letter signs, television backlighting, cove
lighting,
under-cabinet lighting, showcase lighting, etc. We are one of makers of national LED lighting industry
standards,
enabling us to manufacture various LED flexible lights with the highest standards. In addition to LED tape
light, linear
lighting product, neon tube light, Blueview also offers unique lighting solutions according to your lighting
applications. If you are looking for high performance environmental lights, welcome to LED light expert!
Contact Us
Contact Us
Blueview Elec-optic Tech Co., Ltd.
Add.: No.1000, Section 2, 2nd Konggang Road, Southwest Aviation Industrial Development Zone, Chengdu City, Sichuan Province
-
Postcode: 610207
E-mail: sales@blueviewled.com
Contacts: Manning Peng
Mobile: +86-18116623572
Тel.: +86-28-8148 0011
Inquiry
Founded in 2004, Blueview Elec-optic Tech Co., Ltd. is one of the largest manufacturer of LED strip lights and LED linear lights in China, offering signage lighting, commercial lighting and smart lighting system.
