LED Light Sheets
LED light sheets are equipped with LEDs in high density for extremely high
brightness, available with white or

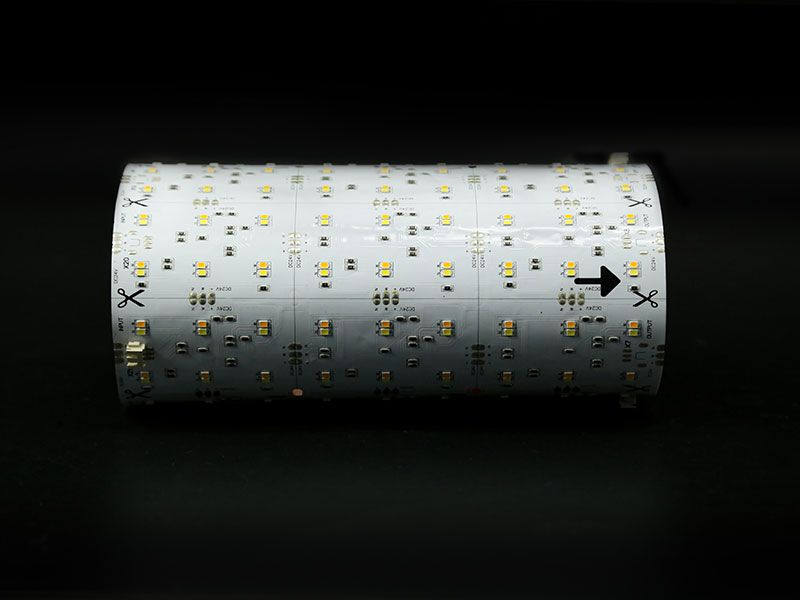

multicolor. The lighting sheets can be cut to almost every shape, making
them applicable to illuminating curved, sloped,
or large objects. Intuitive, plug and play connections ensures reduced
installation time and cost.
Main Features
- Equipped with high brightness LEDs
- Features LEDs mounted on PCB or FPC with high flexibility
- Built-in controller for adjusting brightness

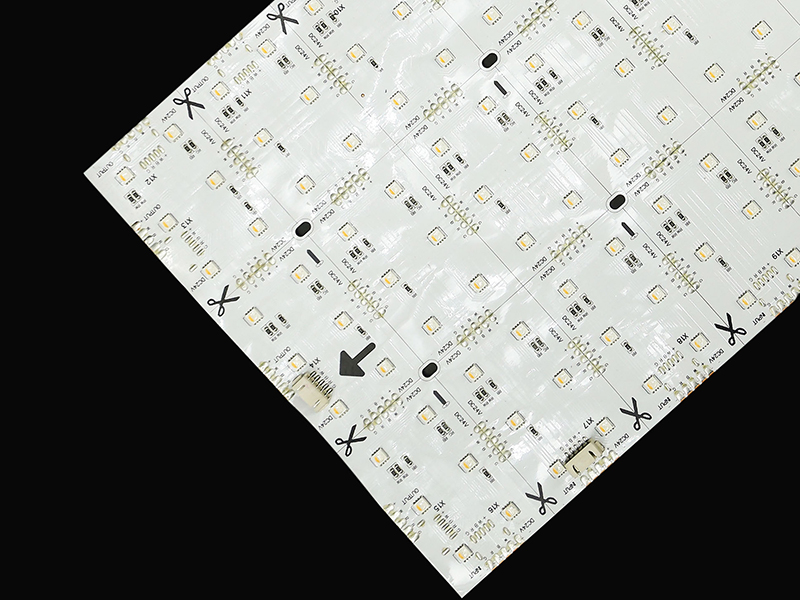

- Marked cut lines for easy cutting and connection
- Quick wiring connections
- No LED luminosity attenuation
- Applies constant current and constant voltage LED driver
- Fast-drying silicone spray sealant or waterproof fabric for protecting
- LEDs from moisture and corrosion
- Designed with XH-2Y/3Y wire connector
- Can connect with remote for controlling the lighting pattern
- Various specifications available
- Customized CCT
- Working temperature (℃): -20~+60
- Storage temperature (℃): -20~+70
- Certifications: UL Listed, CE
- 3M adhesive backing or screw for installation

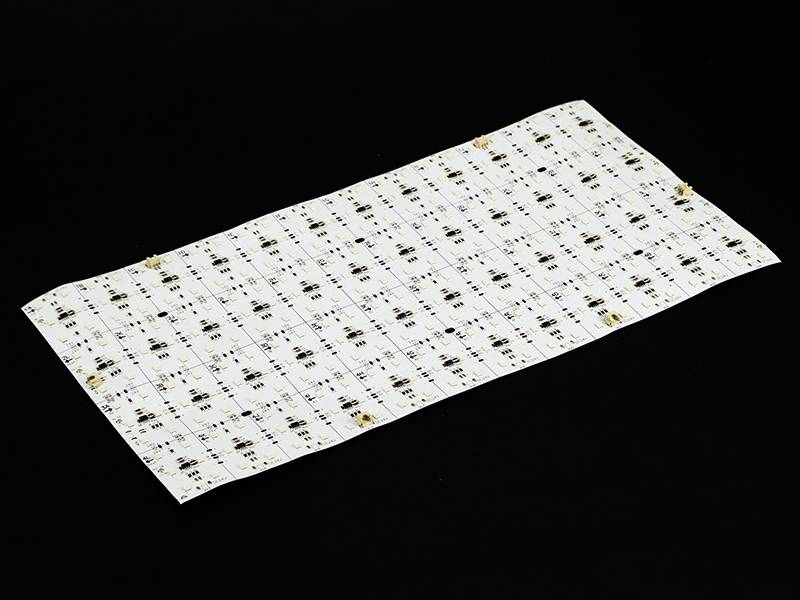

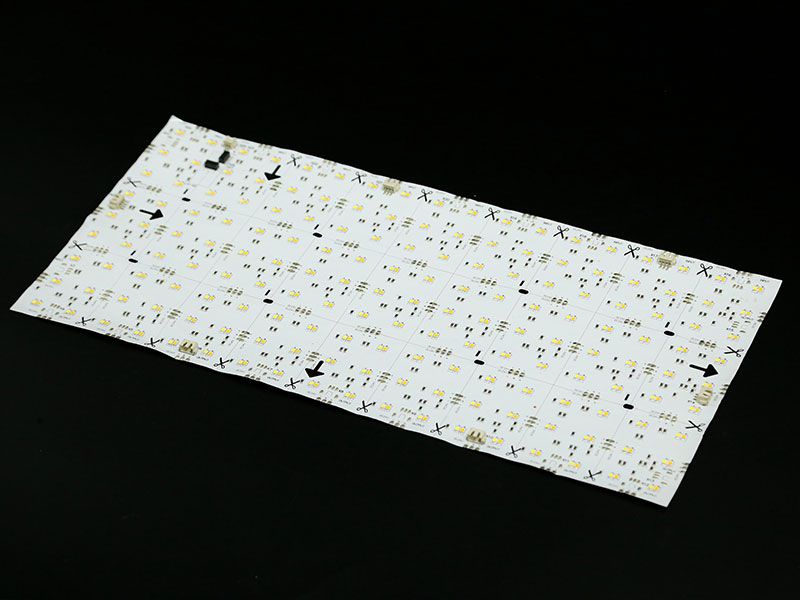

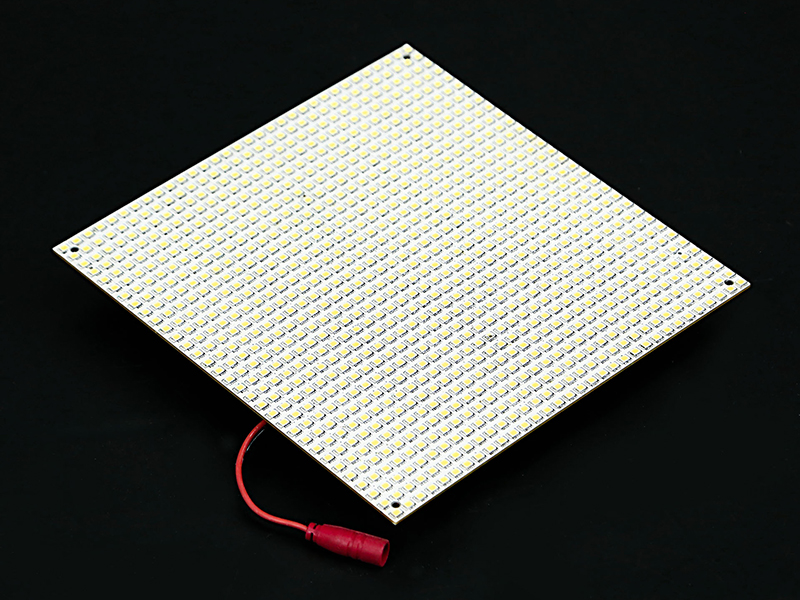

H150-W-CNH2835 LED Light Sheet, 2600-6800K White, 3-26 W/m
- CCT: 2600-6800K
- Lumens: 159-3162 lm per meter
- Watts: 3-26 W/m
- Voltage: 12/24VDC
- IP Rating: IP22/IP64
- 3-Year Warranty
Inquiry

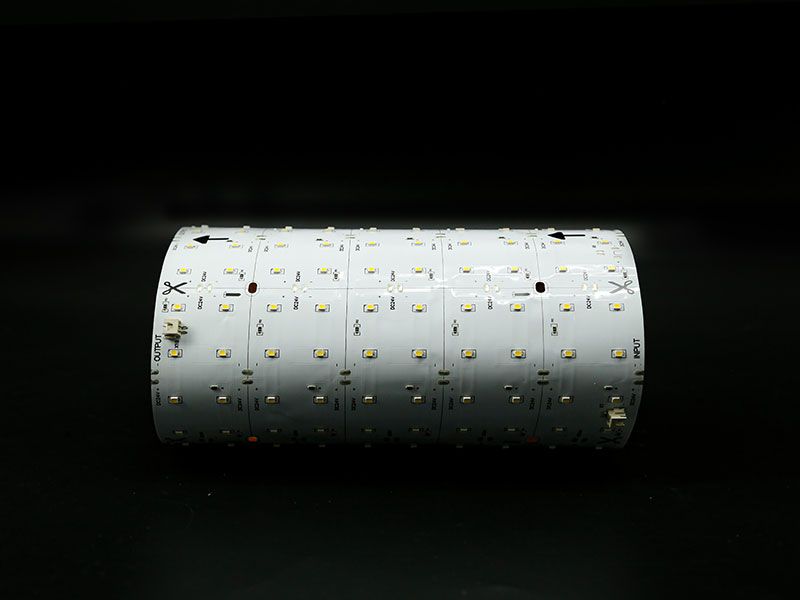

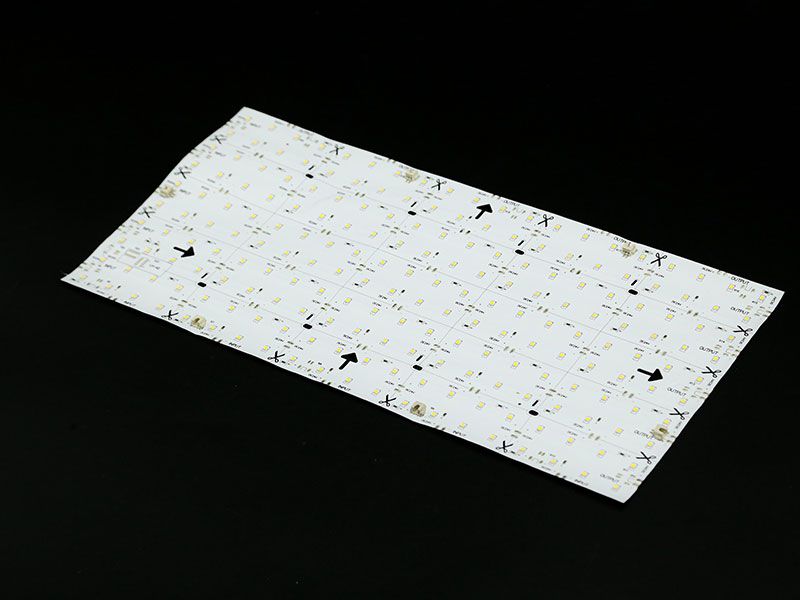

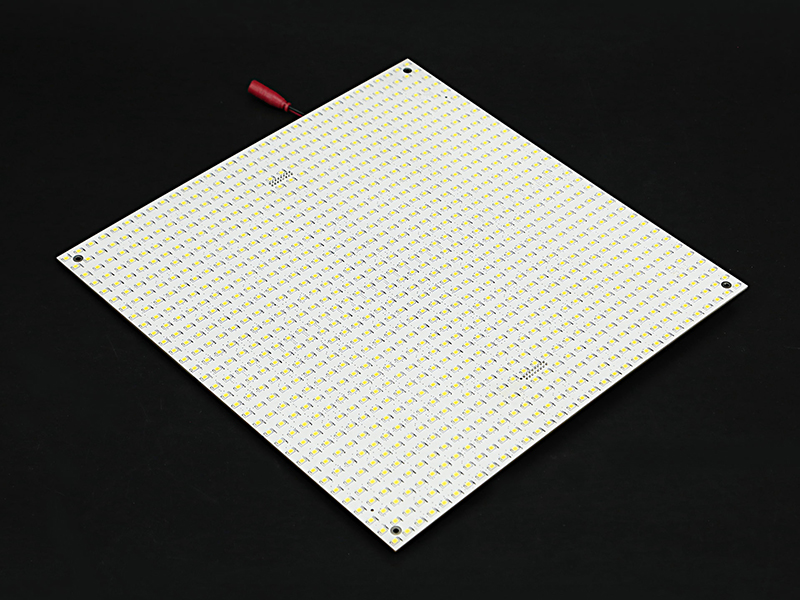

H150-WN-TN-2835 White LED Light Sheet, 2700-6500K, 13-46W/m
- CCT: 2700-6500K
- Lumens: 1048-4285 lm per meter
- Watts: 13-46W/m
- LED: 324/576 SMDs per meter
- Voltage: 24VDC
- IP Rating: IP22/IP64
- 3-Year Warranty
Inquiry

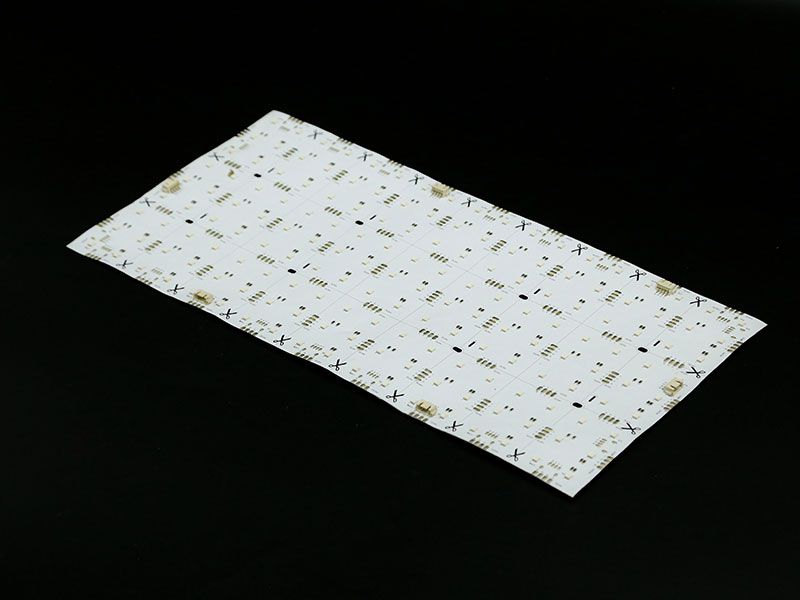

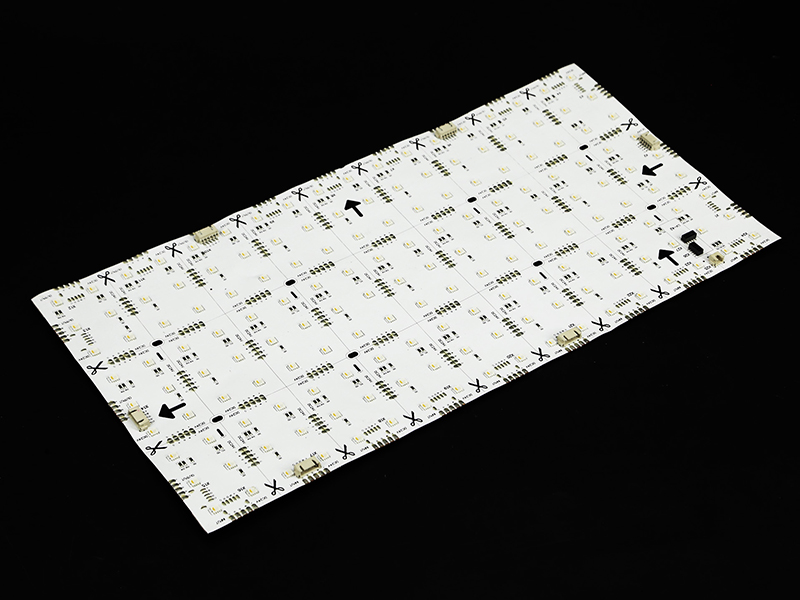

H150-RGB-TN4040 LED Light Sheet, RGB, 30/52 W/m
- CCT: R: 615-630K; G: 515-530K; B: 460-470K
- Lumen: 117-1710 lm per meter
- Watts: 30/52 W/m
- LED: 162/288 SMDs per meter
- Voltage: 24VDC
- IP Rating: IP22/IP64
- 3-Year Warranty
Inquiry

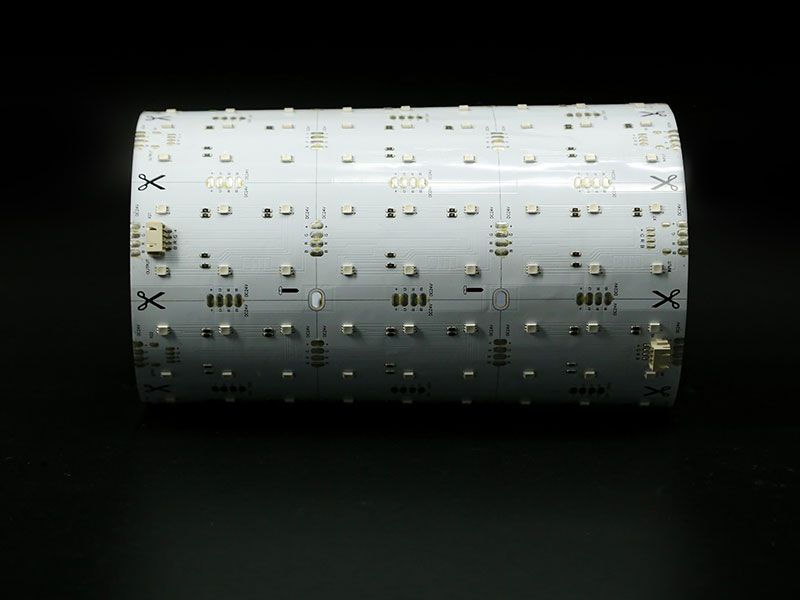

H150-RGBW-TN-F5050 LED Light Sheet, RGB, 14.4 W/m
- CCT: R: 620-630K; G: 515-530K; B: 460-470K
- Lumens: 97.2-583 lm per meter
- Watts: 14.4W/m
- LED: 162 SMDs per meter
- Voltage: 24VDC
- IP Rating: IP22/IP64
- 3-Year Warranty
Inquiry

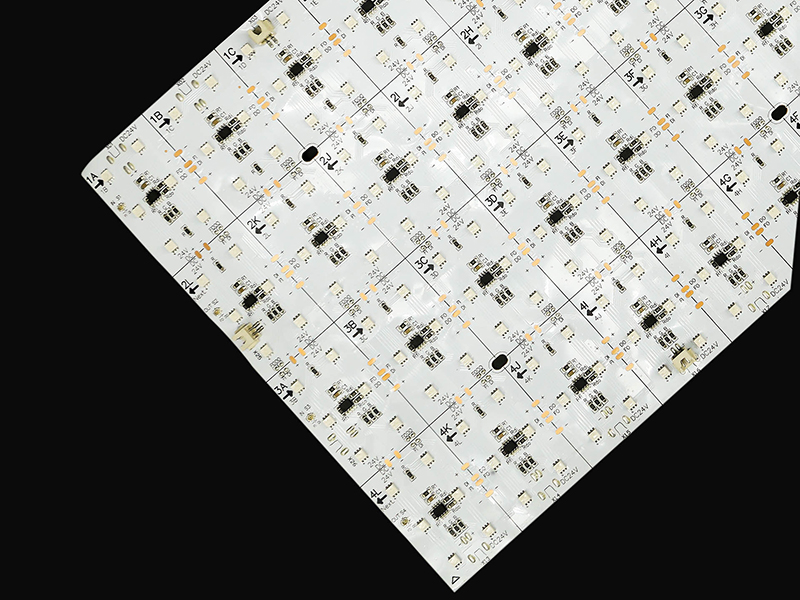

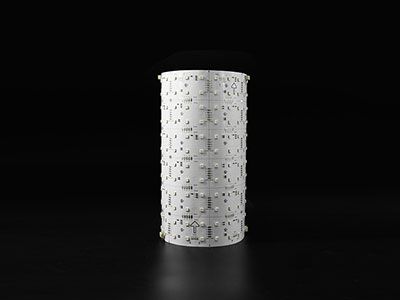

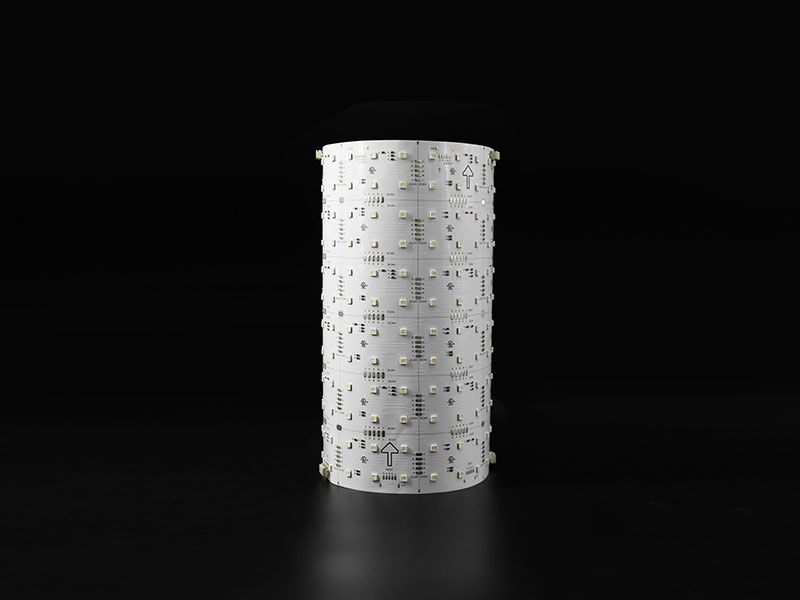

H150-D3-DN4040-288-24-W2 LED Light Sheet, RGB, 31/72 W/m
- CCT: R: 620-630K; G: 515-530K; B: 460-470K
- Lumen: 330-2343 lm per meter
- Watts: 31/72 W/m
- LED: 288 SMDs per meter
- Voltage: 24VDC
- TTM1914 IC
- 6 LEDs per cut

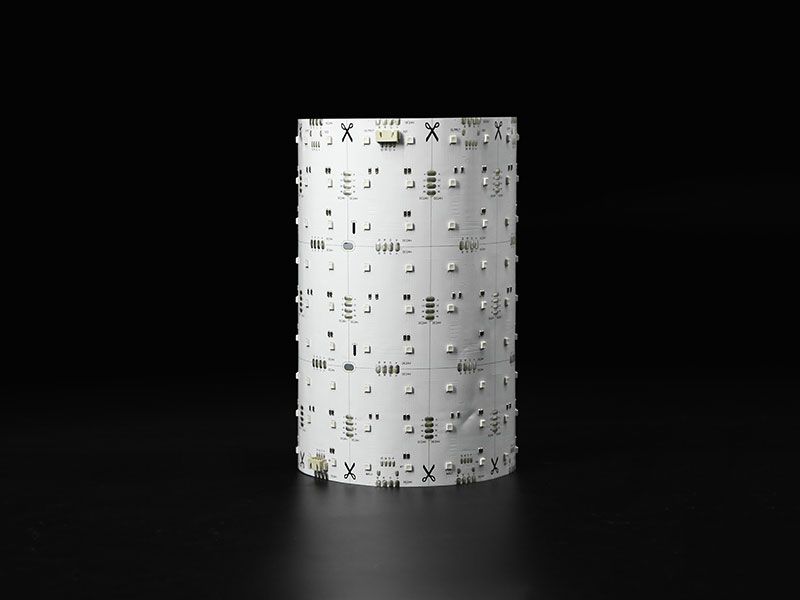

- FPC material, flexible and bendable
- Quick XH-2Y & PH-2 connector
- Easy installation by tape and screws
- Customizable in size, color, power, and logo, etc.
Inquiry

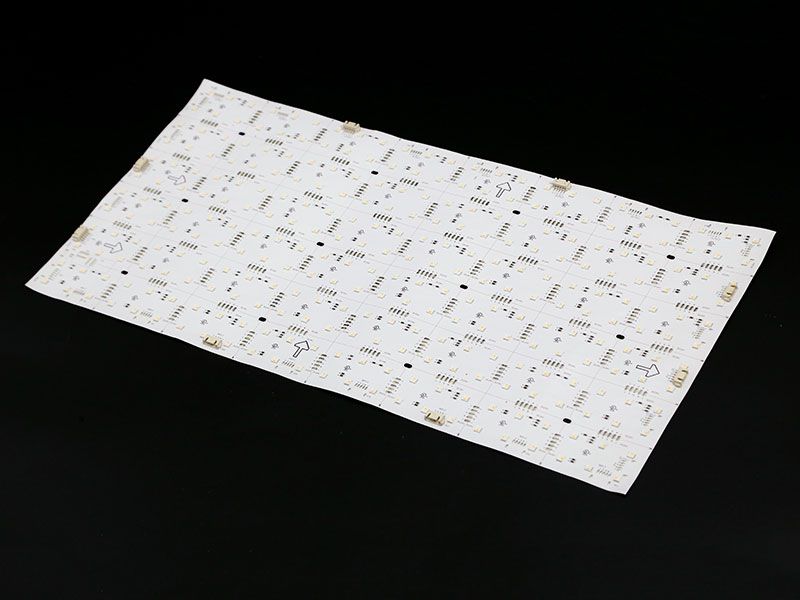

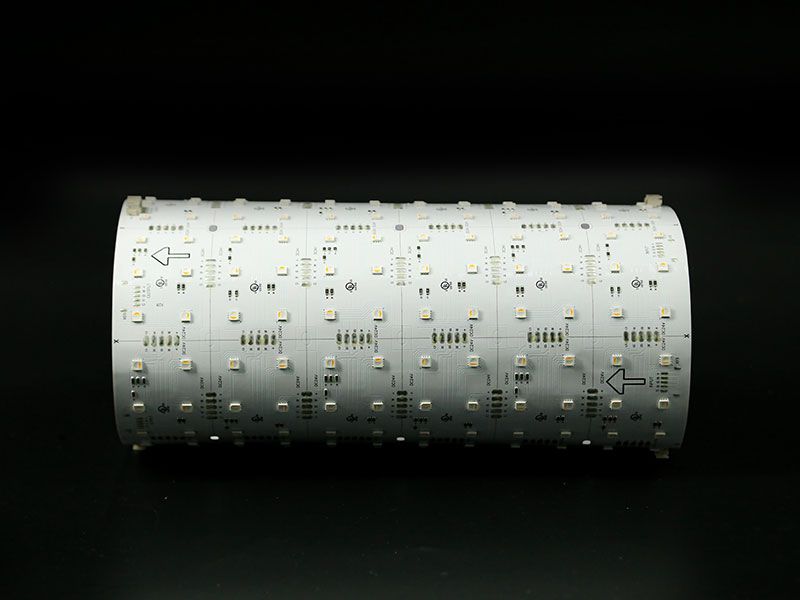

H150-RGBW-FN-F5050-162-24 LED Light Sheet, RGB
- CCT: R: 620-630K; G: 515-530K; B: 460-470K
- Lumen: 97-1218 lm per meter
- LED: 162 SMDs per meter
- Voltage: 24VDC
- 4 in 1 with colors of red, green, blue and warm white
- Flexible and cuttable every 80.0*53.3mm
- Long lifespan with great lumen maintenance
- Create multi-color changing effect via controller
- Dimmable with PWM technology
Inquiry

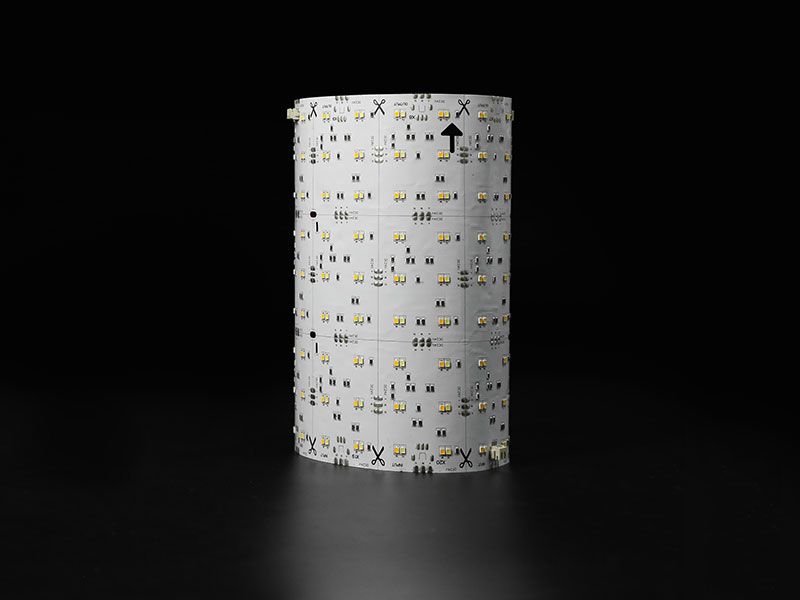

NW-B-P10 LED Light Sheet
- LED: 2835 SMDs per meter
- Lumen: 250-2000 lm per meter
- Watts: 3.2-26W
- Voltage: 5VDC
- Light source is 2.5-3cm away from the canvas, suitable for light boxes with a thickness of 6cm or more
- Highly modular, easy to install and maintain
Inquiry

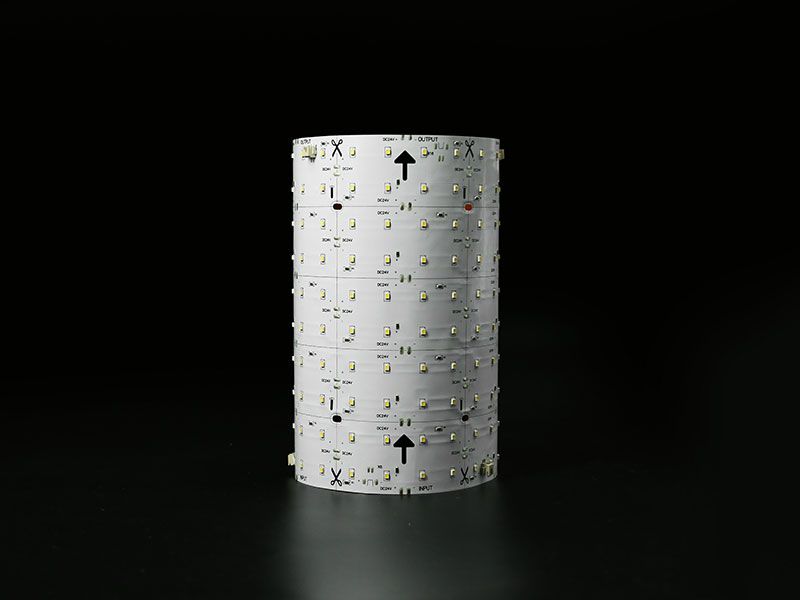

NW-B-P10NW-B-P6.5 LED Light Sheet
- Lumen: 1100/2000 lm per meter
- Watts: 13/26W
- LED: 2835 SMDs per meter
- Voltage: 5VDC
- Significantly increase lifespan of LED through low voltage and low current with ultra-low temperature operation
- Light source is 2.5-3cm away from the canvas, suitable for light boxes with a thickness of 6cm or more
- Highly modular, easy to install and maintain
Inquiry

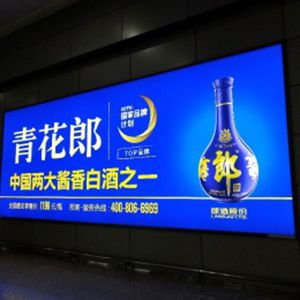

Applications

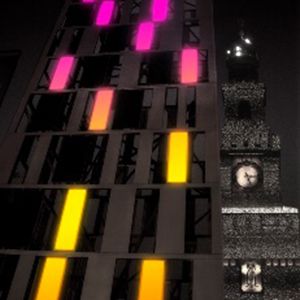

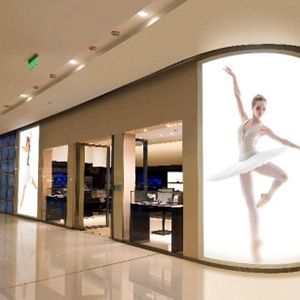

The flexible LED lighting sheets are suitable for mounting in LED lattice
lights, LED side lighting modules, LED light
boxes, and LED cylinder lights.
