AC BACK-LIT LED Rigid Bar

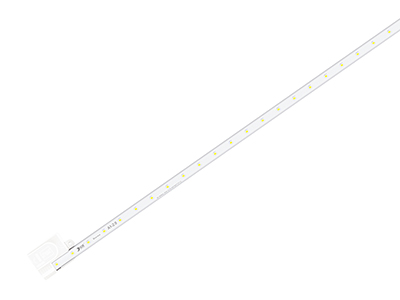

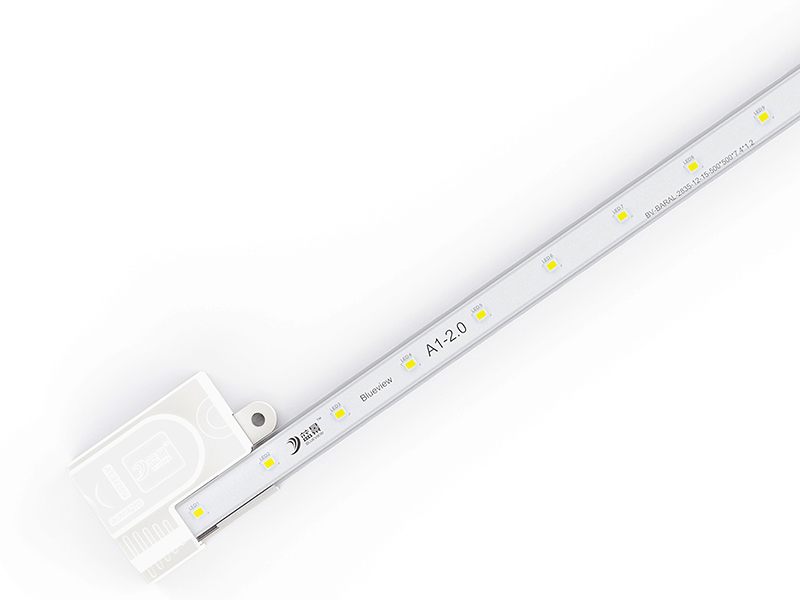

A1 2.0 AC LED Rigid Bar
- CCT: 2700-10000K
- LED Type: 2835
- Beam Angle: 120°
- Luminous Flux (lm/m): 515/1078
- Power (W/m): 5/10.3
- Efficiency (lm/W):105.8/104.9
- Voltage: 85-240 VAC
- IP Rating: IP66
- 3-Year Warrant
- 220V AC input directly, eliminating the need for DC driver and avoiding the failure due to DC driver
- Aluminum PCB with PC cover, IP66 suitable for outdoor use
- High efficiency & high power factor with PF>0.9, η>90%.
- Wide input voltage range from 85-240VAC
- Power supply with filling and solidifying technology, safe and environmental protection.
- Optional lengths are available in 0.6m & 1.2m
- 6pcs per set, each bar is cuttable
Inquiry

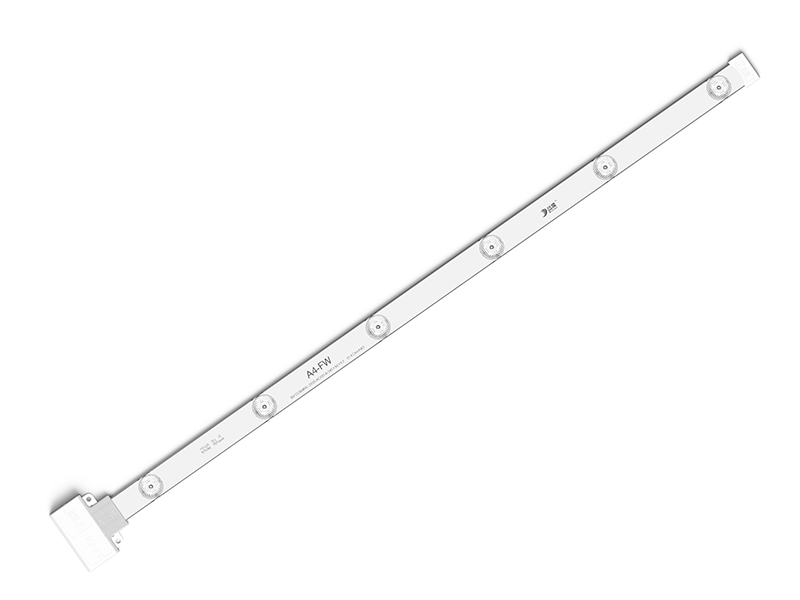

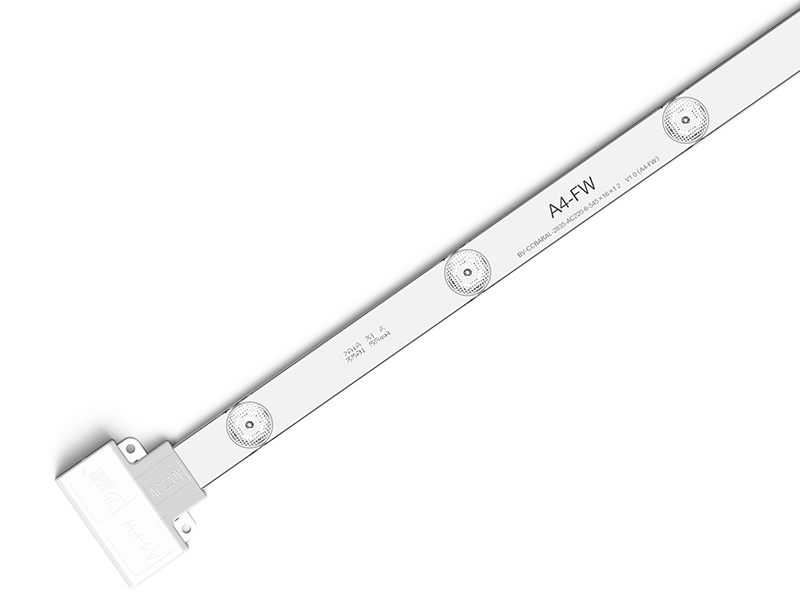

A4-FW AC LED Rigid Bar
- CCT: 9000-12000K
- LED Type: 2835
- Beam Angle: 170°
- Luminous Flux (lm/m): 48/77/25/142
- Power (W/m): 1.92/1.92/1.92/5.76
- Efficiency (lm/W): 30/48.2/15.7/29.6
- Voltage: 24 VDC
- IP Rating: IP20
- 3-Year Warrant
- 220V AC input directly, eliminating the need for DC driver and avoiding the failure due to DC driver
- Self-designed 170° wide beam angle for uniform light
- IP67 suitable for outdoor use
- 6pcs per string for easy installation
- Four length options, customization available
Inquiry
As a leading LED lighting manufacturer in the lighting industry, Blueview fouces on custom luninaire
manufacturing,
including signage lighting, commercial lighting and smart lighting system. Our superior quality LED luminaires
are
widely used for accent lighting, architectural lighting, channel letter signs, television backlighting, cove
lighting,
under-cabinet lighting, showcase lighting, etc. We are one of makers of national LED lighting industry
standards,
enabling us to manufacture various LED flexible lights with the highest standards. In addition to LED tape
light, linear
lighting product, neon tube light, Blueview also offers unique lighting solutions according to your lighting
applications. If you are looking for high performance environmental lights, welcome to LED light expert!
